pa R t S iD e N t i f i C a t i o N
po w e R he a D

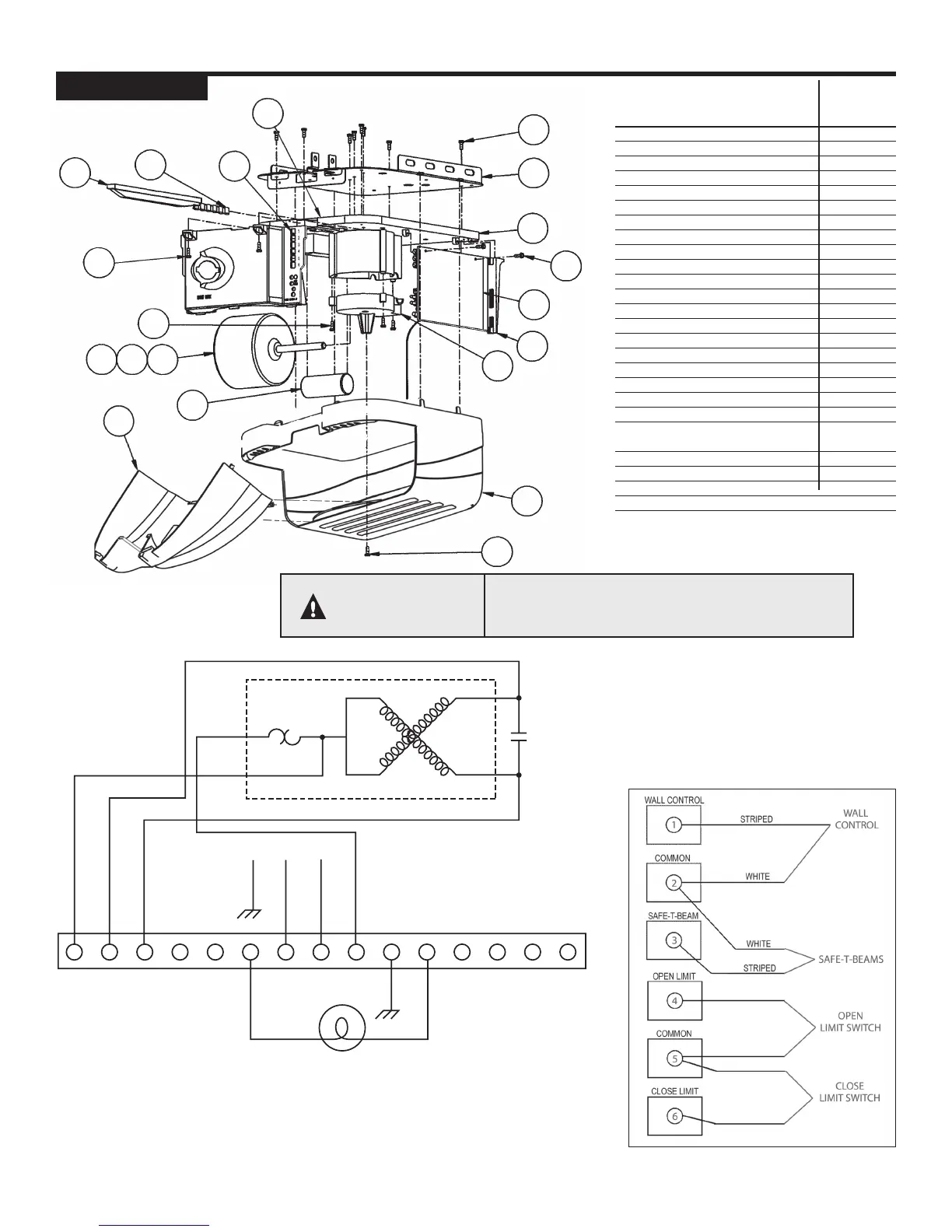

Power Head Assembly
[
1
]
Item Part Name
*
1 Power Head Assembly 1
*
1A Cover (by Series Model) 1
*
1B Front Panel Assembly 1
*
1D Motor Parts 1
*
1E Circuit Board Assembly 1
*
1F Capacitor (By Series/Model) 1
*
1G Opto Wheel (not shown) 1
*
1H Carriage Slide 1
*
1J Chain 1
*
1K Circuit Board Bracket 1
*
1L Drive Module 1
*
1M Terminal Strip 1
*
1N No. 8-32 x 3/4” Hex Head Screw
w / int. Lockwasher 1
*
1P Shock Absorption Stop 1
*
1Q Motor Mount Bracket (not shown) 1
*
1X Chassis 1
4 1/4-20 Shoulder Bolt 1
5 1/4” Flange Nut 1
39 Coupler 1
41 No. 8-32 x 3/8” Phillips
Hex Head Screw 1
42 No. 8-32 x 3/8” Phillips
Pan Head Screw 1
48 Mounting Straps 2
49 Light Lens 1
Power Head Parts List
Number
Included
*
Pre-assembled
wi R i N G Di a G R a m
WARNING
Shut off power before opening the Cover.
Components inside Cover May Cause Electric Shock
123456789101112131415
MOTOR
MOTOR
CAPA CITOR
THERMAL
PROTECTOR
POWER CORD
SEQUENCER HOUSING
LIGHT
RED
RED
ORANGE
ORANGE
YELLOW YELLOW
YELLOW
BLACK
DOWN
UP
WHITE BLUE
GREEN
GREEN
WHITE
BLACK
POWER HEAD TERMINALS
To Next Page
