13
For Help, call 1-800-35-GENIE or visit www.geniecompany.com
pa R t S iD e N t i f i C a t i o N

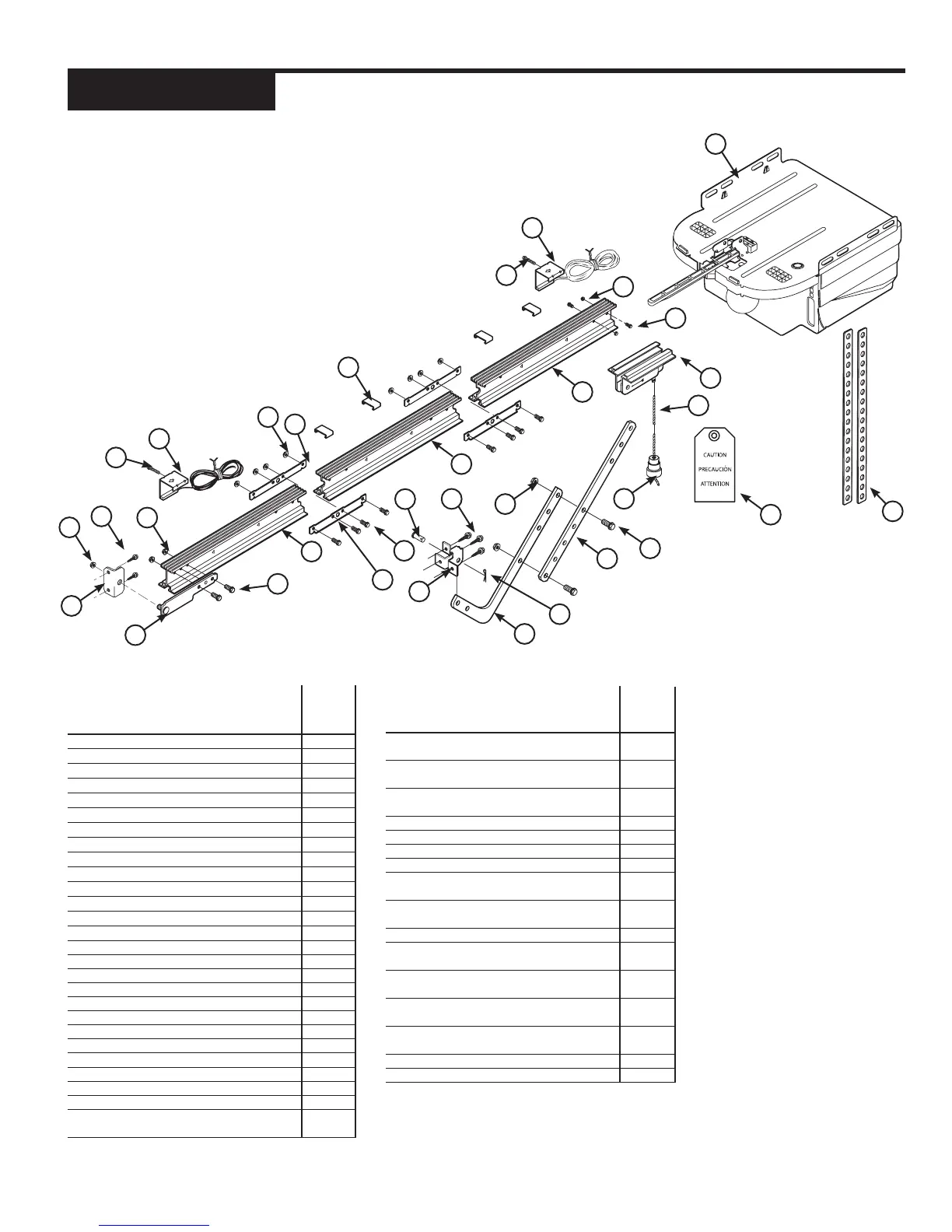

Rail & Attachments
1
13
41
14
27
9
39
18
2
10
22
47
12
26
23
17
24
42
20
15
25
16
48
10
28
7
5
6
9
8
10
9
8
[
2
]
Item Part Name
1 Power Head Assembly (main box) 1
2 Rail Assembly (1-piece)
4 Rail Assembly (3-piece)(main box) 1
5 First Rail Section (separate box) 1
6 Middle Rail Section (separate box) 1
7 End Rail section (separate box) 1
8 Rail Clamps (blue bag) 4
9 1/4”-20 x 5/8” Hex Head Bolt (blue bag) 12
10 1/4”-20” Hex Flange Nut (blue bag) 12
11 Carriage Assembly (main bag) 1
12 Rail Strap (blue bag) 1
13 Limit Switch (white wire)(blue bag) 1
14 Limit Switch (brown wire)(blue bag) 1
15 Release Cord (green bag) 1
16 Release Knob (green bag) 1
17 Emergency Release Tag (green bag) 1
18 Header Bracket orange bag) 1
20 Door Bracket (orange bag) 1
22 1/4” x 2” Lag Screw (orange bag) 8
23 Straight Door Arm (main box) 1
24 Clevis Pin (yellow bag) 2
25 Cotter Pin (yellow bag) 2
26 Curved Door Arm (main box) 1
27 3/8”-16 x 7/8” H. H. Bolt (yellow bag) 2
28 3/8”-16 Hex Flange Nut (yellow bag) 2
29 Wire (main box) 1
30 Insulated Staples (red bag) varies by
model
Parts List
Item Part Name
31 Wall Button (red bag) varies by
model
32 Wall Console (main box) varies by
model
33 #6 x 1-1/4” pan head phillips screw varies by
model
34 Entrapment Warning Label (manual) 1
35 Safe-T-Beam® Sensor (main box) 1
36 Safe-T-Beam® Source (main box) 1
37 Safe-T-BeaM® Mounting Brackets 2
38 Remote Controls (main box) varies by
model
39 #8-32 x 1” Machine Screw (green bag) 2
40 Safety and Maintenance Guide (manual) 1
41 Wire Clips varies by
model
42 1/4”-20 x 3/4” Self-drilling Screws
(orange bag) 3
44 #10-16 x 1-1/4” Phillips Hex Head Screw
(yellow bag) 4
46 5/16”-18 x 3/4” Hex Head Bolt
(orange bag) 3
47 5/16”-18 Hex Flange Nut (orange bag) 4
48 Mounting Straps (main box) 2
Parts List
Number
Included
Number
Included
Rail Assembly
39
