STEP 6

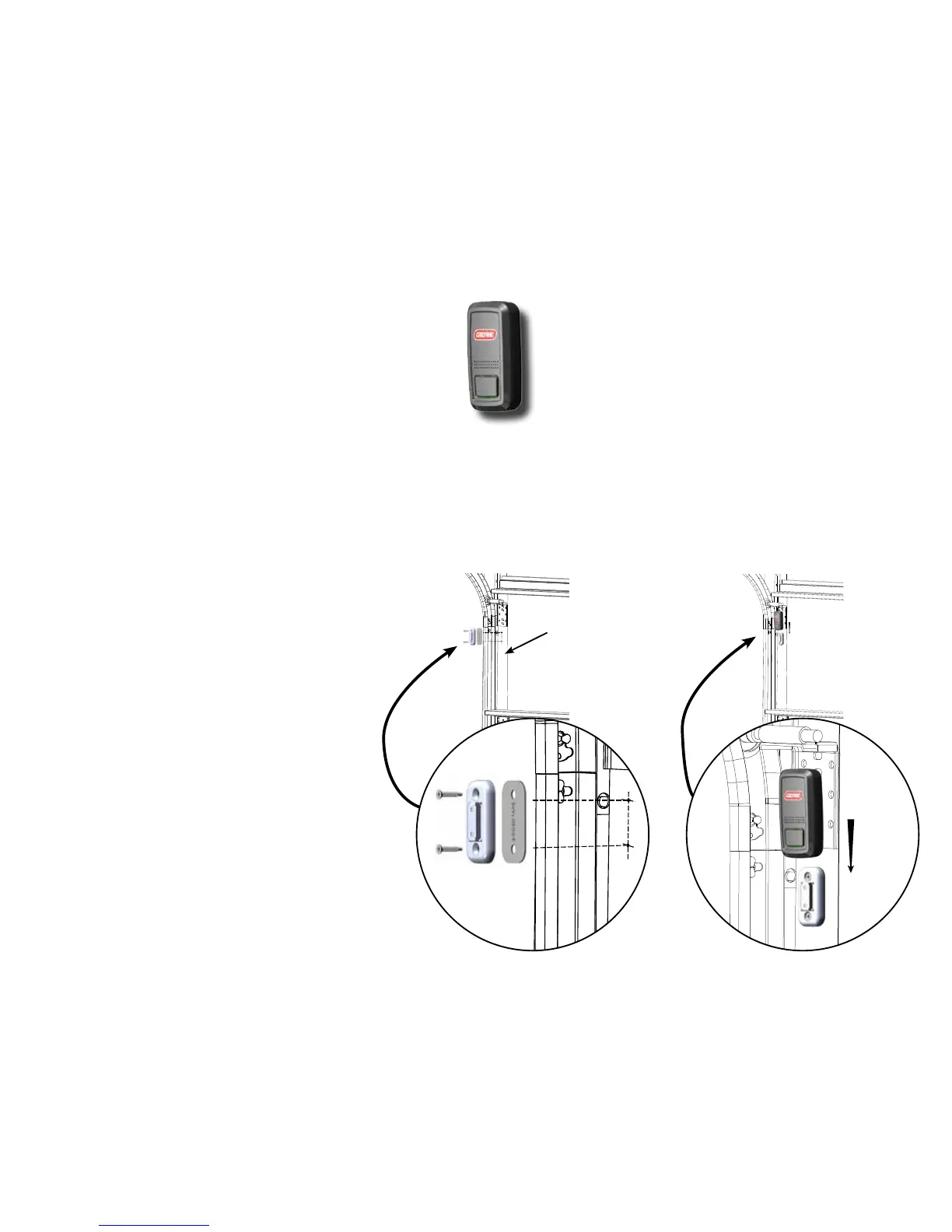

Mount DPS Module to Garage Door:
The DPS should be mounted on the TOP door panel only. Mount to
steel reinforced end stile on the far left or right under the top hinge.
DO NOT mount to unreinforced door panel.
1. Clean door where DPS will mount.
2. Install double sided tape to back of mounting bracket and ax to
door.
NOTE: Double sided tape is designed to hold bracket in place temporarily
only. Not to be used for permanent mounting.
3. Pre-drill 2 - 3/32 holes. DO NOT drill all the way through door.
4. Use included self tapping screws to mount DPS bracket to top door
panel end stile.
5. Slide DPS down onto mounting bracket. DPS should snap onto
bracket.
END STILE
Garage Door Garage Door
Mounting DPS
Sensor
