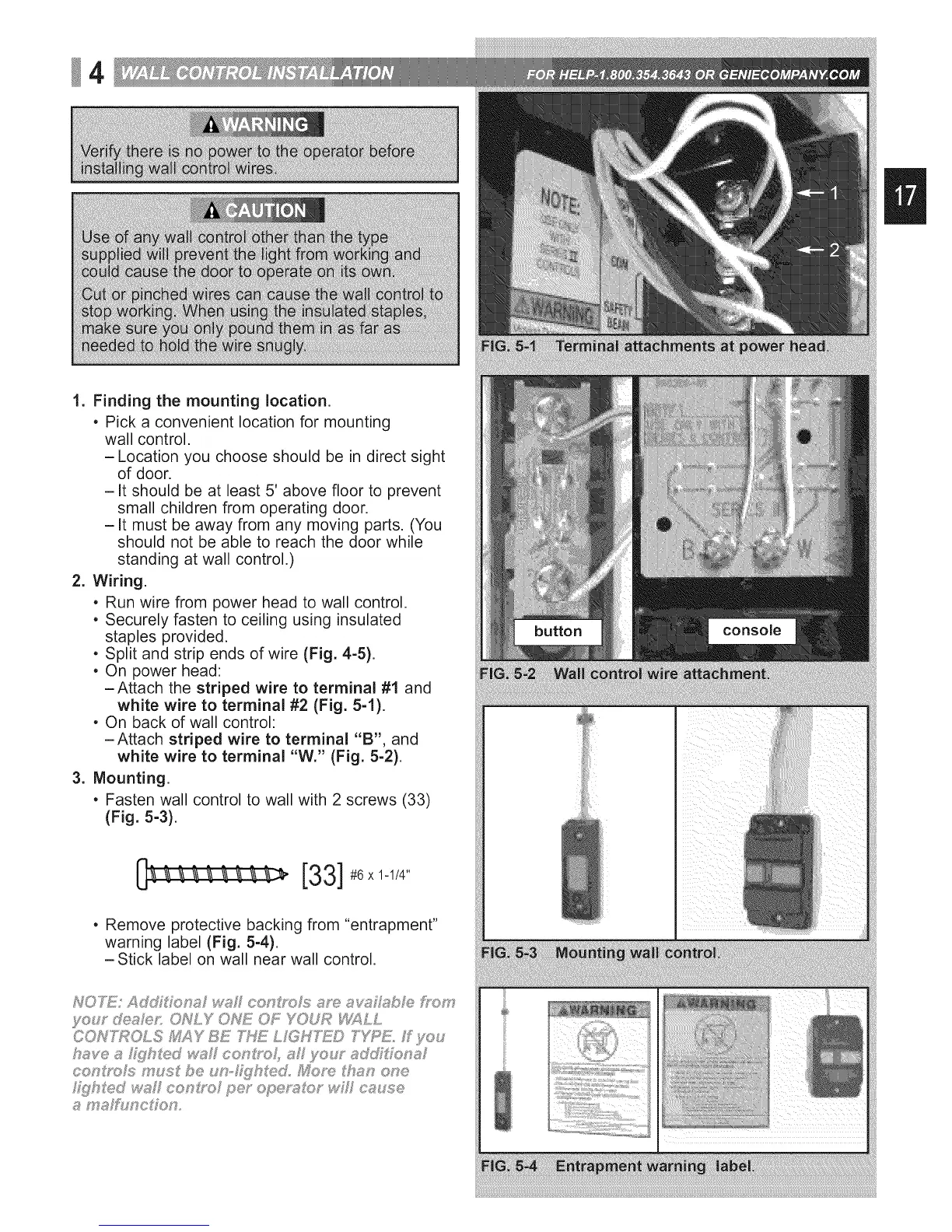

1. Finding the mounting location.
• Pick a convenient location for mounting
wall control.
-Location you choose should be in direct sight
of door.
-It should be at least 5' above floor to prevent
small children from operating door.
-It must be away from any moving parts. (You
should not be able to reach the door while
standing at wall control.)
2. Wiring.
• Run wire from power head to wall control.
• Securely fasten to ceiling using insulated
staples provided.
• Split and strip ends of wire (Fig. 4-5).
• On power head:
-Attach the striped wire to terminal #1 and
white wire to terminal #2 (Fig. 5-1).
• On back of wall control:
-Attach striped wire to terminal "B", and
white wire to terminal "W." (Fig. 5-2).
3. Mounting.
• Fasten wall control to wall with 2 screws (33)
(Fig. 5-3).
[33] #6xi-1/4"
• Remove protective backing from "entrapment"
warning label (Fig. 5-4).
-Stick label on wall near wall control.
