Part No. 147753 S-60 • S-65 • S-60 TRAX • S-65 TRAX 4 - 37
S-60 HC • S-60X • S-60XC
December 2013 Section 4 • Repair Procedures
5-1
RPM Adjustment - Ford and
Deutz Models
Refer to Maintenance Procedure B-9,
Check and
Adjust the Engine RPM - Ford and Deutz Models.
5-2
RPM Adjustment - Perkins
Models
Refer to Maintenance Procedure A-12,
Check and
Adjust the Engine RPM - Perkins Models.
5-3
Flex Plate
The flex plate acts as a coupler between the engine
and the pump. It is bolted to the engine flywheel
and has a splined center to drive the pump.

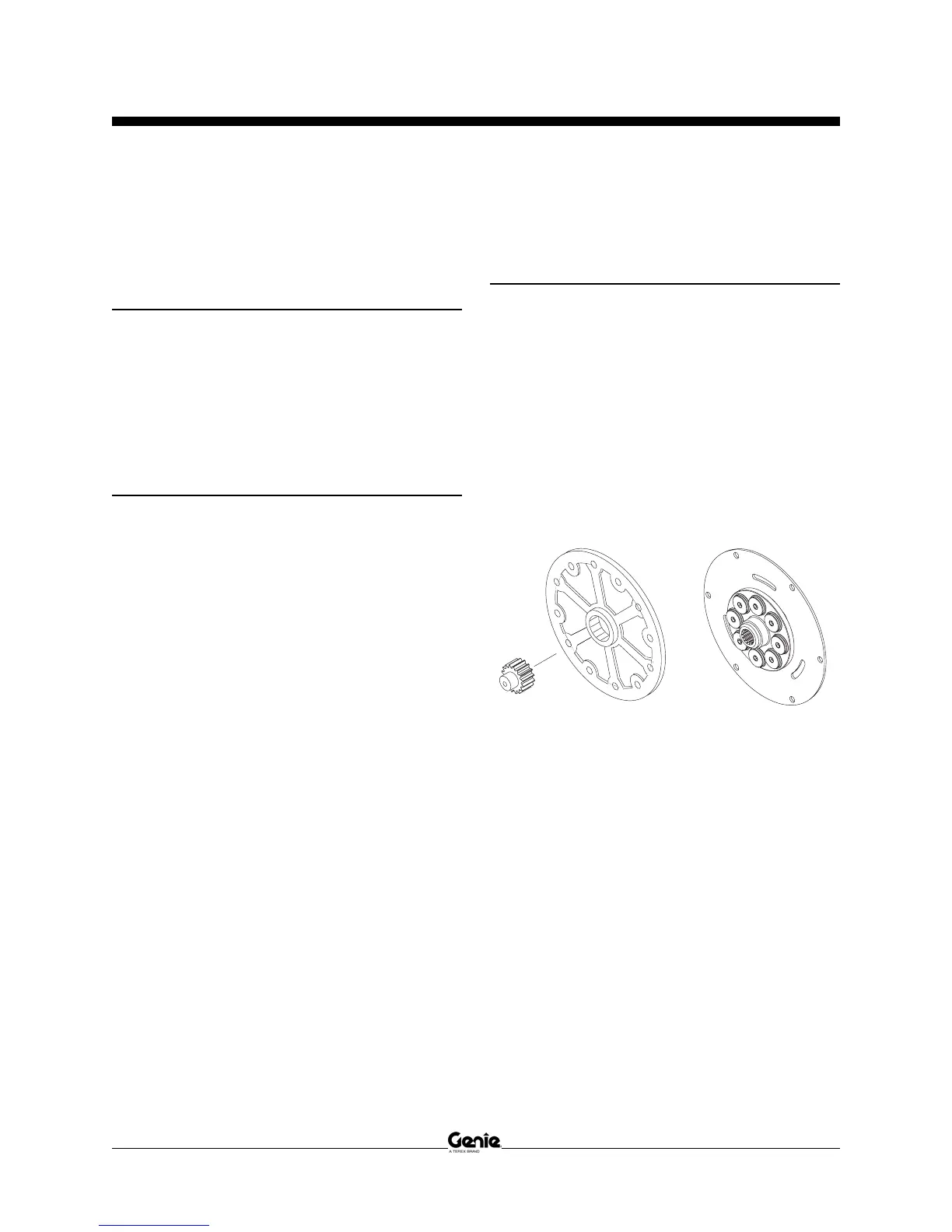

Two different styles of flex plates have been used
in the production of your machine model.
Type "A" flex plates utilize a flex plate installed
onto the flywheel of the engine and a separate
coupler installed onto the pump splined shaft.
Type "B" flex plates combines the pump coupler,
as part of the flex plate, which is installed onto the
engine flywheel.
Engines
Type "A"
(flexplate with
separate coupler)
Type "B"
(flexplate with
coupler combined)
