Genie S-85 - Oscillating Axle Components

February 2017 Service Manual
Manifolds
Part No. 1259369GT S-80 • S-85 • S-80X 123
8-6

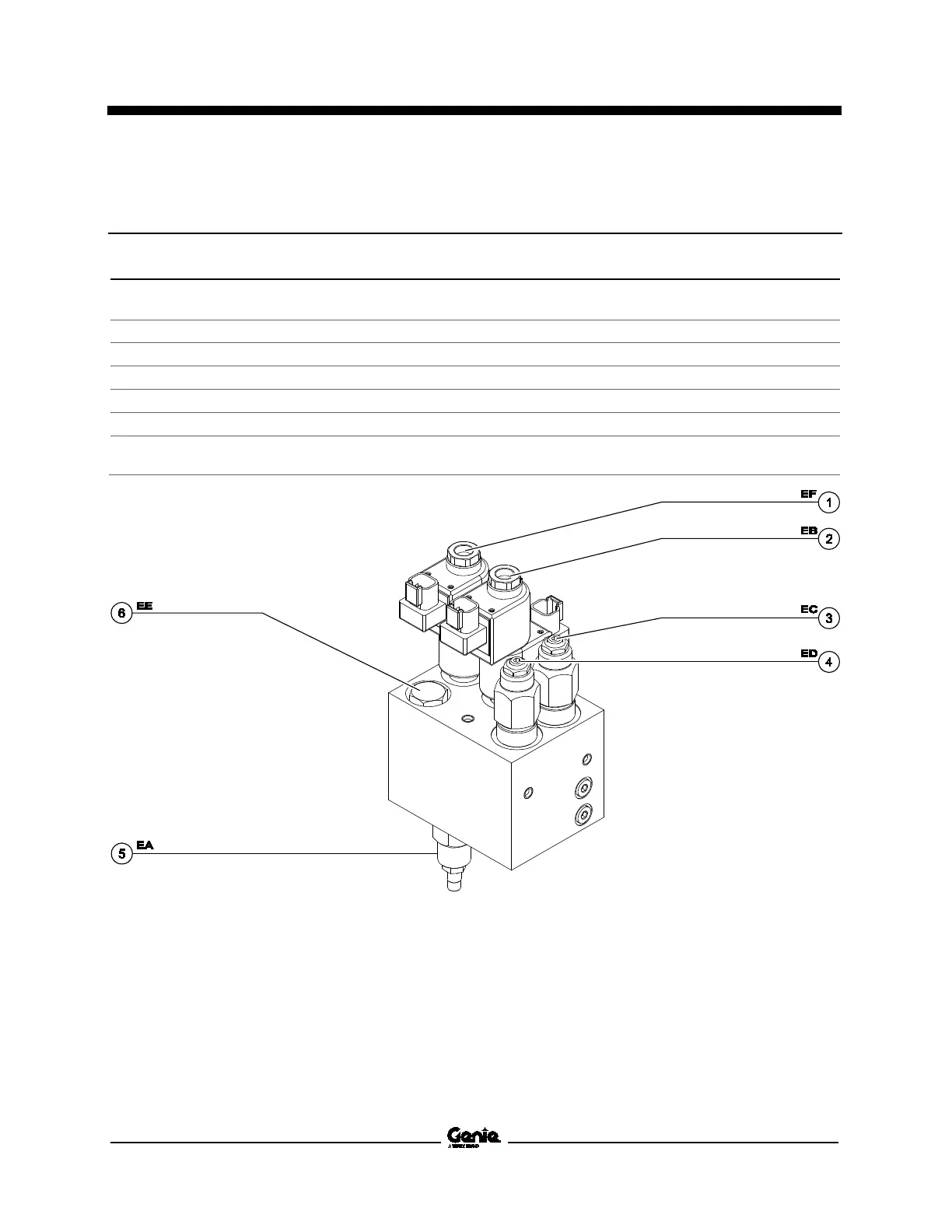

Platform Manifold Components, S-80
The jib boom/platform rotate manifold is mounted on the platform end of the boom.
Index
No.
Description
Schematic
Item
Function
Torque
1
Solenoid valve, 3 position 4 way
EF
Platform rotate CW/CCW
30-35 ft-lbs / 41-
47 Nm
2
Solenoid valve, 3 position 4 way
EB
Platform level up/down
30-35 ft-lbs / 41-
47 Nm
3
Counterbalance valve,
3500 psi EC
Platform level CB valve
26-30 ft-lbs / 35-
41 Nm
4
Counterbalance valve, 3500 psi
ED
Platform level CB valve
26-30 ft-lbs / 35-
41 Nm
5
Needle valve
EA
Platform level
20-25 ft-lbs / 27-
34 Nm
6
Pressure comp., flow control
valve
EE
Platform
rotate flow control 33-37 ft-lbs / 45-
50 Nm
