Operator's Manual Supplement First Edition • Third Printing
Introduction
4 Panel Cradle Part No. 82518GT
Observe and Obey:
Do not exceed the rated platform capacity.
Combined weight of cradles, panels,
occupants, tools and any other equipment
must not exceed rated capacity.
The panel cradle assembly weighs 30 lbs /
13.6 kg.
Maximum capacity of the panel cradles is
250 lbs / 113 kg.
The weight of panel cradles and load in
panelcradles may limit maximum number of
occupants in platform to one person.
Do not operate unless you are adequately
instructed and are aware of all hazards
associated with lifting panels.
Do not cause a horizontal force or side load to
machine by raising or lowering a fixed or
overhanging load.
Maximum vertical height of panels: 4 ft / 1.2 m.
Maximum wind speed: 15 mph / 6.7 m/sec.
Maximum panel area: 32 sq. ft / 3 m2.
Note: Perform this procedure on a firm, level
surface with the machine in the stowed position.
Panel Cradle Installation:
1 Install hook piece (Genie part number
228849GT) through the slots in the panel
cradle base (Genie part number 228848GT).

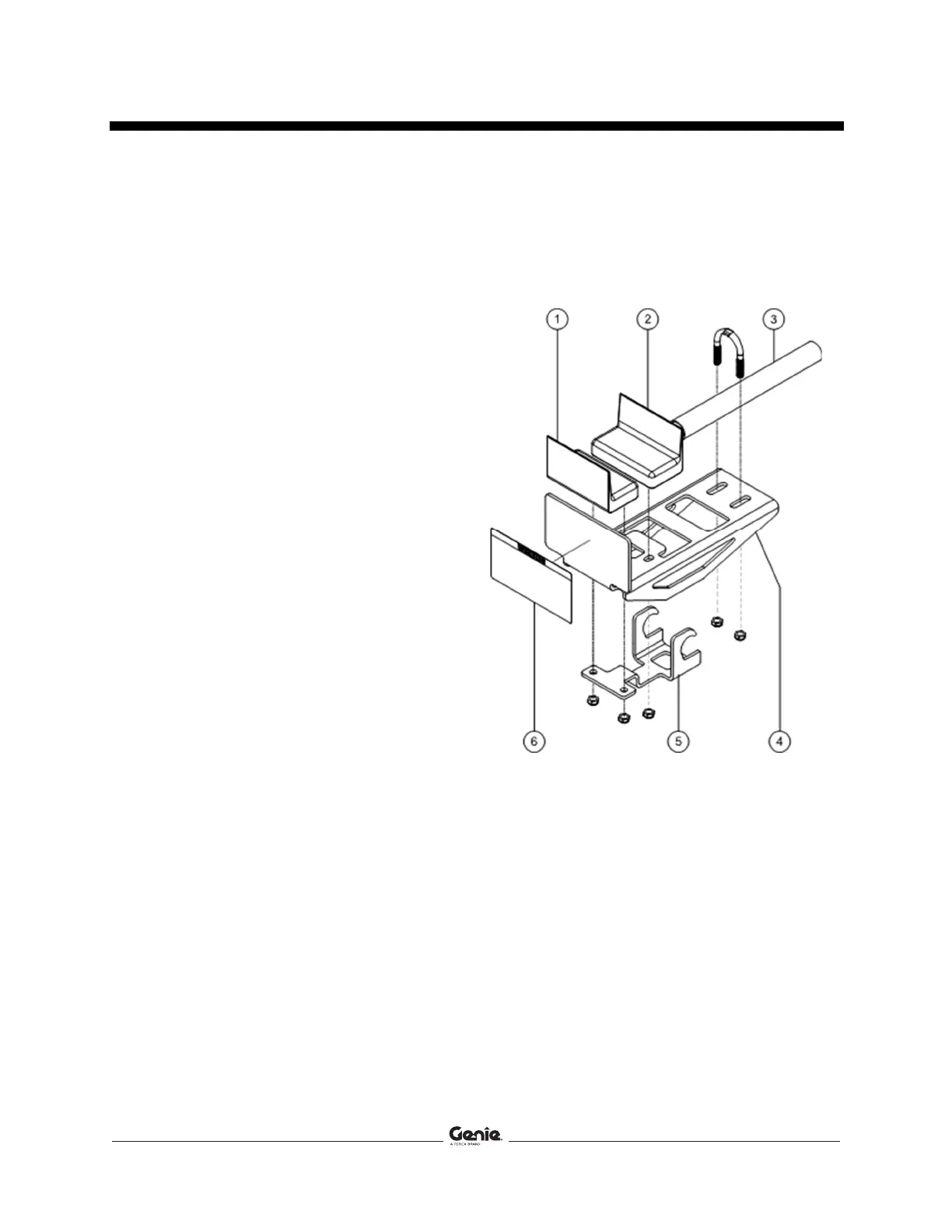

Illustration 1
1 rubber bumper 1
2 rubber bumper 2
3 aluminum tube
4 panel cradle base
5 hook piece
6 warning decal
2 Hook the panel cradle to the bottom platform
tube in the desired location.
