Genius Blizzard 900 C - Start-Up; Power Supply and Earthing

BLIZZARD 500-900 C 17 532103 - Rev.B
OPEN A OPEN B FSW OP FSW CL STOP EDGE TX-FSW W.L.
24 V

500 mA
max
123456789101112
8.8.
13 14 1615 17
PE N L
M
COM OPEN CLOSE N LAMP
60 W max
NL
PE N L
6 A
COM FCA FCC
CAP
{
LIMITS
ENCODER
FCA
FCC
OPEN
B
OPEN
A
FSW
OP
FSW
CL
STOP
EDGE
SAFE
ENCODER
+ -
28
J2
J5
J3
J1
J6
J7
J4
F
F1
F2
DISPLAY
LED
Translation of the original instructions
ENGLISH
Translation of the original instructions
ENGLISH

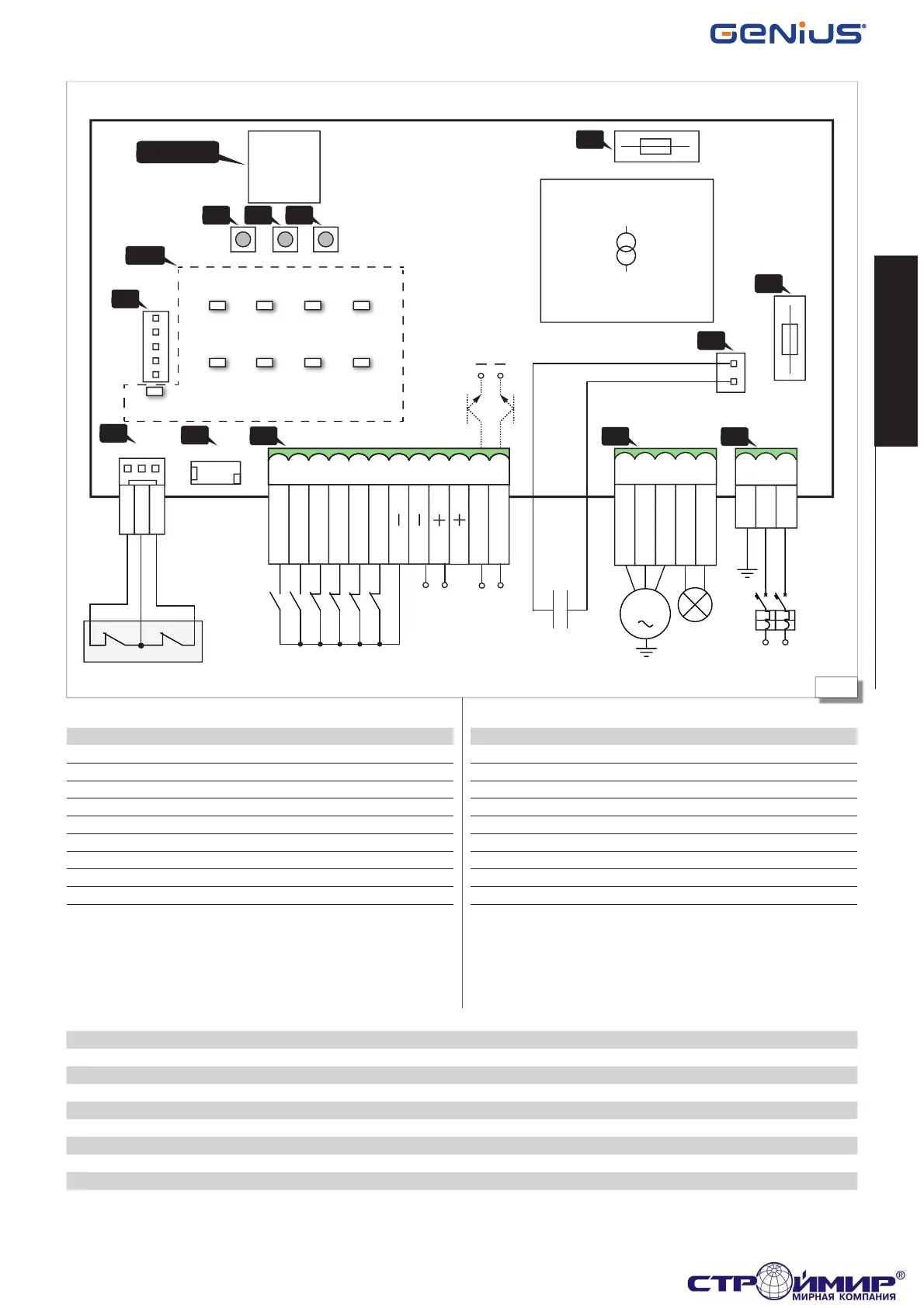

6. ELECTRONIC BOARD
KEY:
J1 Terminal board for accessories
J2 Connector for GENIUS 5-pin receiver
J3 Rapid connector for encoder
J4 Rapid connector for start-up capacitor
J5 Rapid connector for the magnetic limit switch sensor
J6 Terminal board for motor and flashing light
J7 Terminal board for main power supply
F1 Fuse for main power supply
F2 Fuse for accessories power supply
LED:
FCA Limit switch 1
FCC Limit switch 2
OPEN B Partial opening command
OPEN A Total opening command
FSW OP Opening photocells
FSW CL Closing photocells
STOP Automation stop
EDGE SAFE N.C. contact for sensitive edges
ENCODER Incremental encoder
9 Technical Data
SPRINT 382 (230 V~) SPRINT 383 (115 V~)
Mains power supply 230 V~ (+6%…-10%) 50 Hz 115 V~ (+6%…-10%) 60 Hz
Max power 10 W 10 W
Max. motor power 1000 W 1200 W
Max. accessories load 24 V
"
500 mA 500 mA
F1 5 A 10 A
F2 800 mA 800 mA
Ambient operating temperature -20 °C - +55 °C -20 °C - +55 °C
Flashing Light 230 V~ - 60 W 115 V~ - 60 W
