PUSH
New Lead Screw

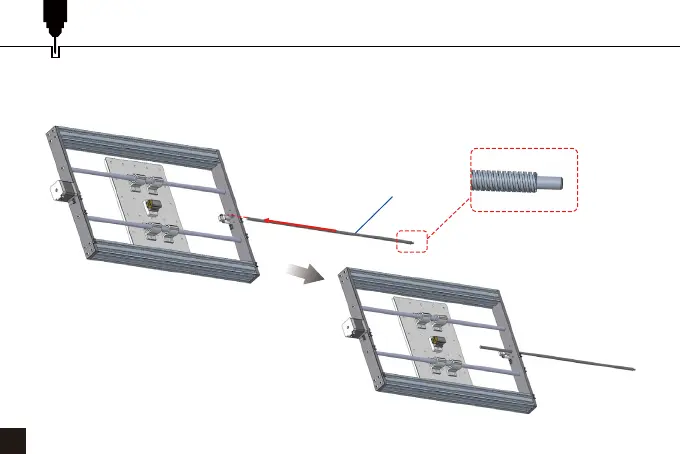

STEP 10: Install the New Lead Screw
14
1. Align the new lead screw with the front bar hole.
2. Push the lead screw so that it passes through the front bar.
