STEP 1: Remove the Gantry
28
1. Remove the Y-Axis limit switch cable and Y-axis motor cable from the machine.
Tip: Before removing the cable, make sure to document how it’s connected. You can take pictures or use
other methods to help with the wiring process later on.
2. Unscrew the fixing screws on the left and right sides of the gantry, and remove the gantry.

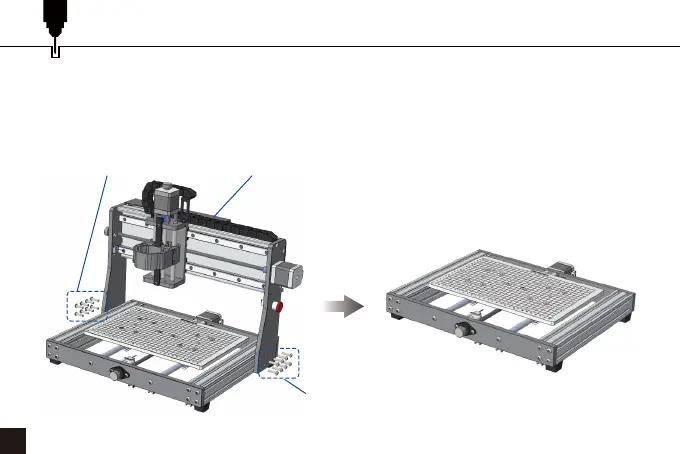

(8) Gantry Fixing Screw Gantry
(8) Gantry Fixing Screw
