STEP 12: Install the New Lead Screw
44

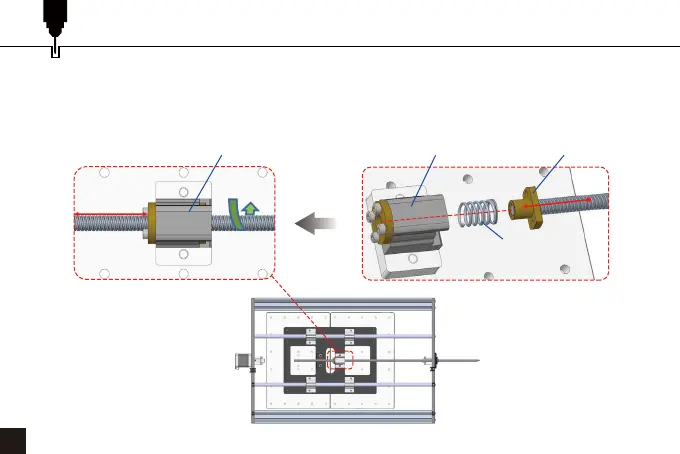

5. Align the T-brass nut tab with the round brass nut recess.
6. Push the screw to make the T-brass nut through the spring and tightly with the round brass nut.
7. Rotate the lead screw clockwise until the lead screw is exposed to the lead screw holder about 40mm.
Spring
T-brass Nut TabRound Brass Nut RecessLead Screw Holder
40mm
