Z Probe Parameters Setup
05
(*Please measure and record the height of the tool setting block in advance.)

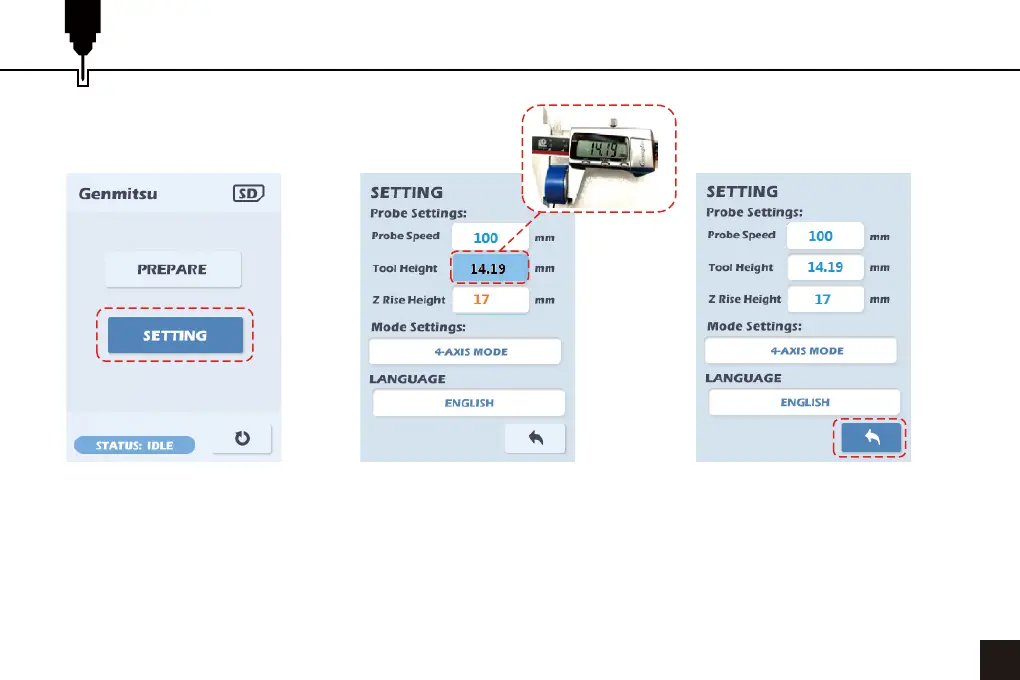

1. Select SETTING and press the dial.
2. The Probe speed is the speed in mm/min that the bit will approach the probe base.
3. Select Tool Height, press the dial to select and turn the dial to change the value to the recorded height.
4. Z Rise Height is the height above the bottom of the probe base that the bit will rise to after probing.
5. Select and press on the Back icon to return to the previous screen.
1
2
3
