Geometrics G-882 User Manual

Geometrics Inc. G-882 Cesium Marine Magnetometer Page 5

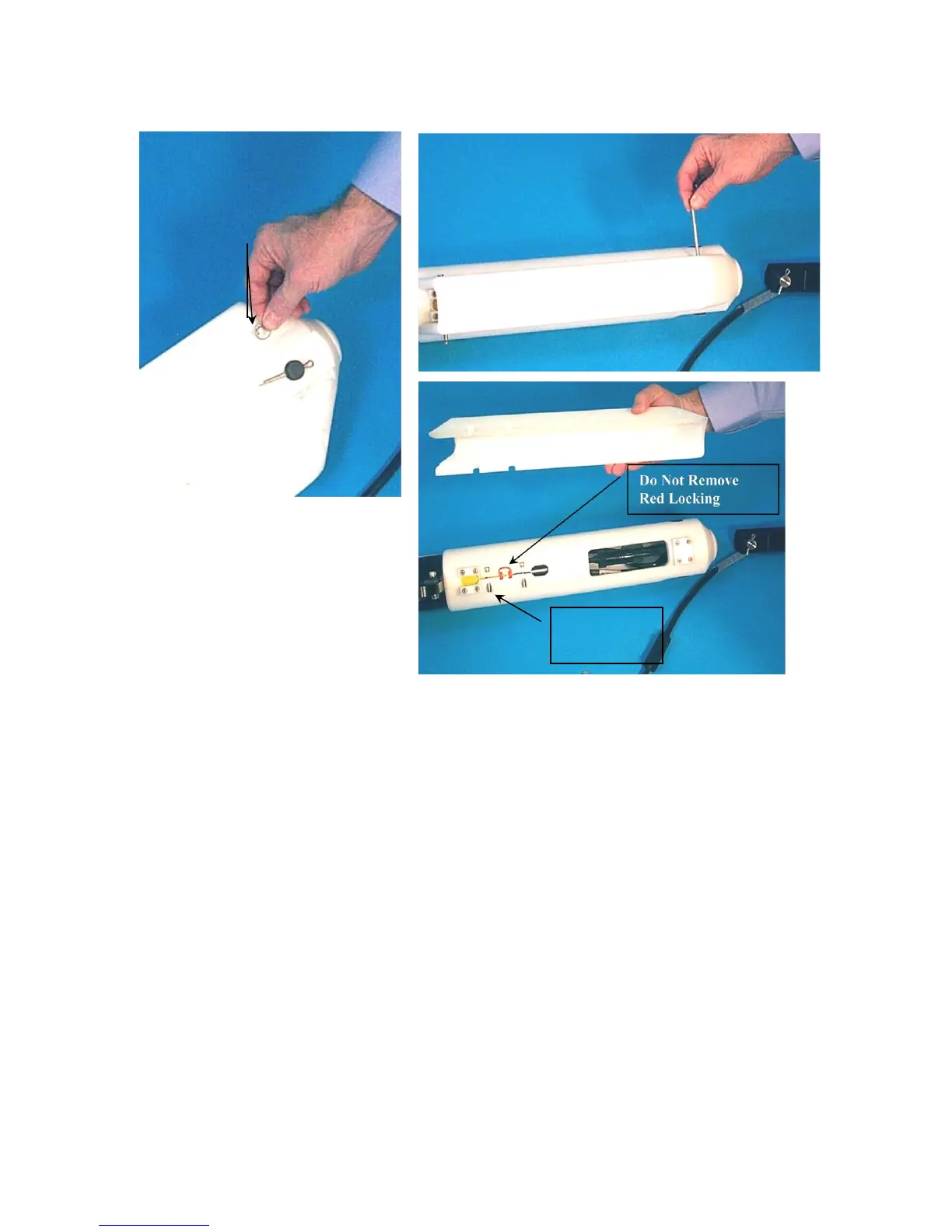

Note the red locking strings and nose clamping screws at the rear of the nose
piece in Fig 4C. Should you need to rotate the sensor tube (discussed under
sensor orientation) you will loosen these screws and rotate the nose piece and
weight relative to the sensor axis at the rear. Never remove the red locking
strings unless you need to replace the nose piece.
Next remove the nose plug cotter pin, black clevis pin and nose plug from the
nose assembly as shown in Fig 5 A to C. Store these parts in a safe place as you
will need them when you convert to CG tow configuration.
Fig 4
Fig 4 A
Fig 4 B
Fig 4 C
Clamping
Screws
Split
Ring
