Geometrics G-882 User Manual

Geometrics Inc. G-882 Cesium Marine Magnetometer Page 7
Locate the silicone
grease that comes with
the ship kit (in one of the
plastic bags, Fig 6, 7) and
apply a very small
amount of grease to
lightly cover the male pins
and female receptacles.
Note that too much
grease can interfere with
proper mating and that
grease need only be
applied when connectors
appear dry. Line up the
two connectors and push
firmly together until they seat (Fig 8). Do not bend the cables from side to side as
you do this. Firm pressure is required. Screw the locking sleeves together to
complete the electrical connection. Tighten finger tight and then give another
1/8
th
turn. Do not use pliers to tighten the locking sleeves.

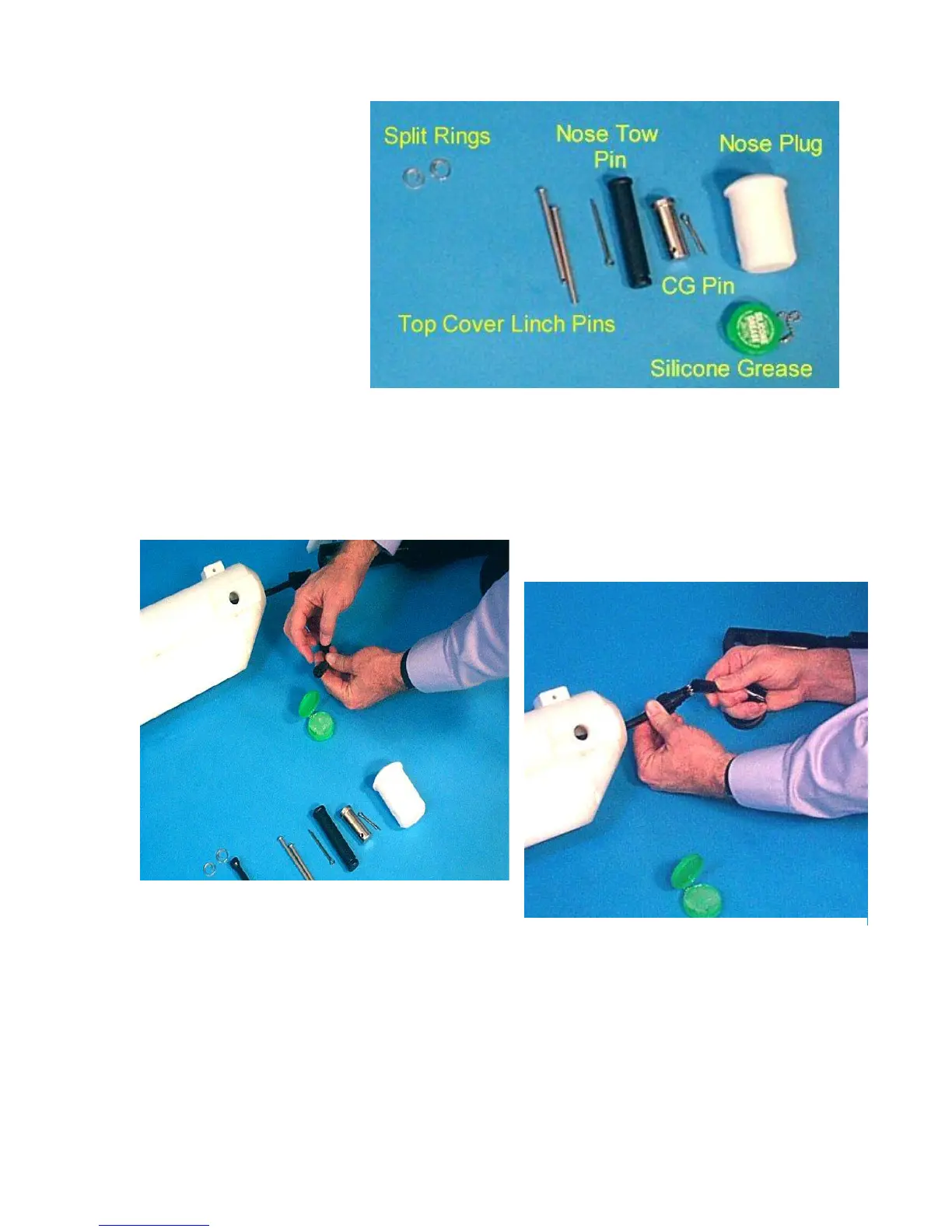

Figure 7
Now push the connected cables back
through the nose hole and pull them up through the top cover port. Insert the tow
cable clevis into the nose hole and secure with black clevis pin and cotter pin.
Make sure you bend over the cotter pin after installation! You will require a
pair of pliers to make a good bend. Complete the nose tow assembly by gently
pushing the connected cables into the nose cavity and reassembling the top
cover.
Figure 6
Figure 8
