Geometrics Inc. G-882 Cesium Marine Magnetometer Page
81
Figures 48 and 49 show the female water tight connector on the wet end of the
tow cable. This connector mates with the connector of Figures 50 and 51.
Figure 49 also shows the pin numbers for this connector. The Geometrics part
number for this connector is 21-236-410.

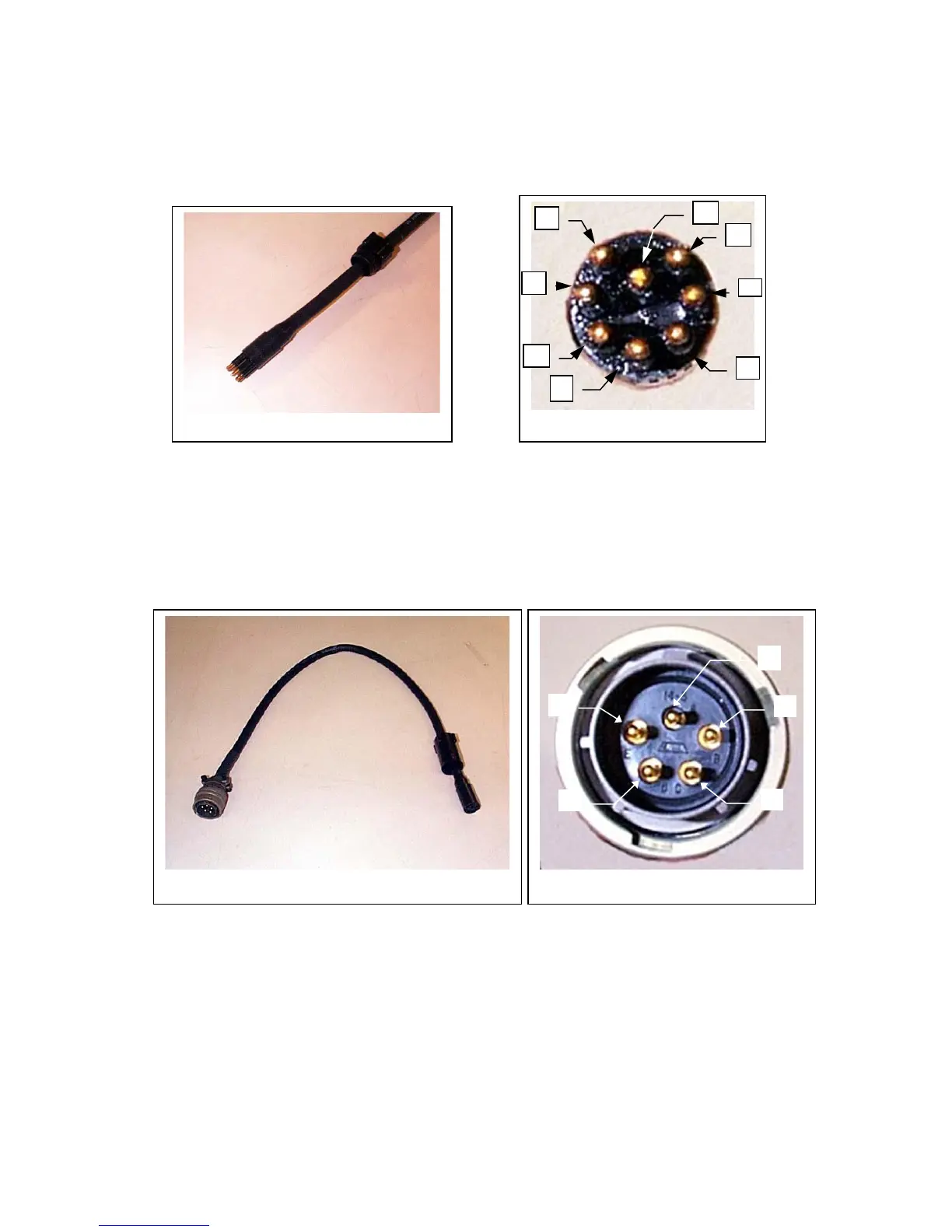

Figures 50 and 51 show the male water tight connector on the dry end of the
tow cable. This connector mates either to the adapter cable shown below or to
a winch if one is used. Figure 51 also shows the pin numbers for this
connector. The Geometrics part number for this connector is 21-236-411.
If the tow cable purchased with your system is terminated as shown in above in
Figure 50, an adapter cable as shown in Figure 52 is provided to allow
connection the DC/Data Junction Box. The connector on the left in Figure 52 is
a Bendix connector. It mates with the connector labeled ONBOARD on the
DC/Data Junction Box. Figure 53 shows the pin numbers for the Bendix
connector.
Figure 50
Figure 51
1
2
3
4
5
6
7
8
Figure 52
Figure 53
A
B
C
D
E
