GeoVision GV-CS1320 User Manual

Introduction
17
1
1.6.4 Connecting Output Devices to GV-CS1320
GV-CS1320 supports 1 type of output: Door outputs, e.g. electronic lock.
The table below shows the wire assignments of output connectors on GV-CS1320.
Wire color Definition
Purple Door COM
Orange Door NC
Gray Door NO
Check if your output device meets the following absolute maximum ratings before connecting
it to the Door outputs.
Breakdown Voltage
250V AC, 220V DC
Continuous Load Current
1A (30V DC), 0.3A (125V AC)
Note:
1. Absolute Maximum Ratings are those values beyond which damage to GV-CS1320
circuit board may occur. Continuous operation of GV-CS1320 at the absolute rating
level may affect GV-CS1320’s reliability.
2. You can connect a GV-I/O Box to your GV-CS1320 to give an extra layer of security.
For details, see Chapter 8 Connecting to GV-I/O Box 4 Ports.
To connect an output device:

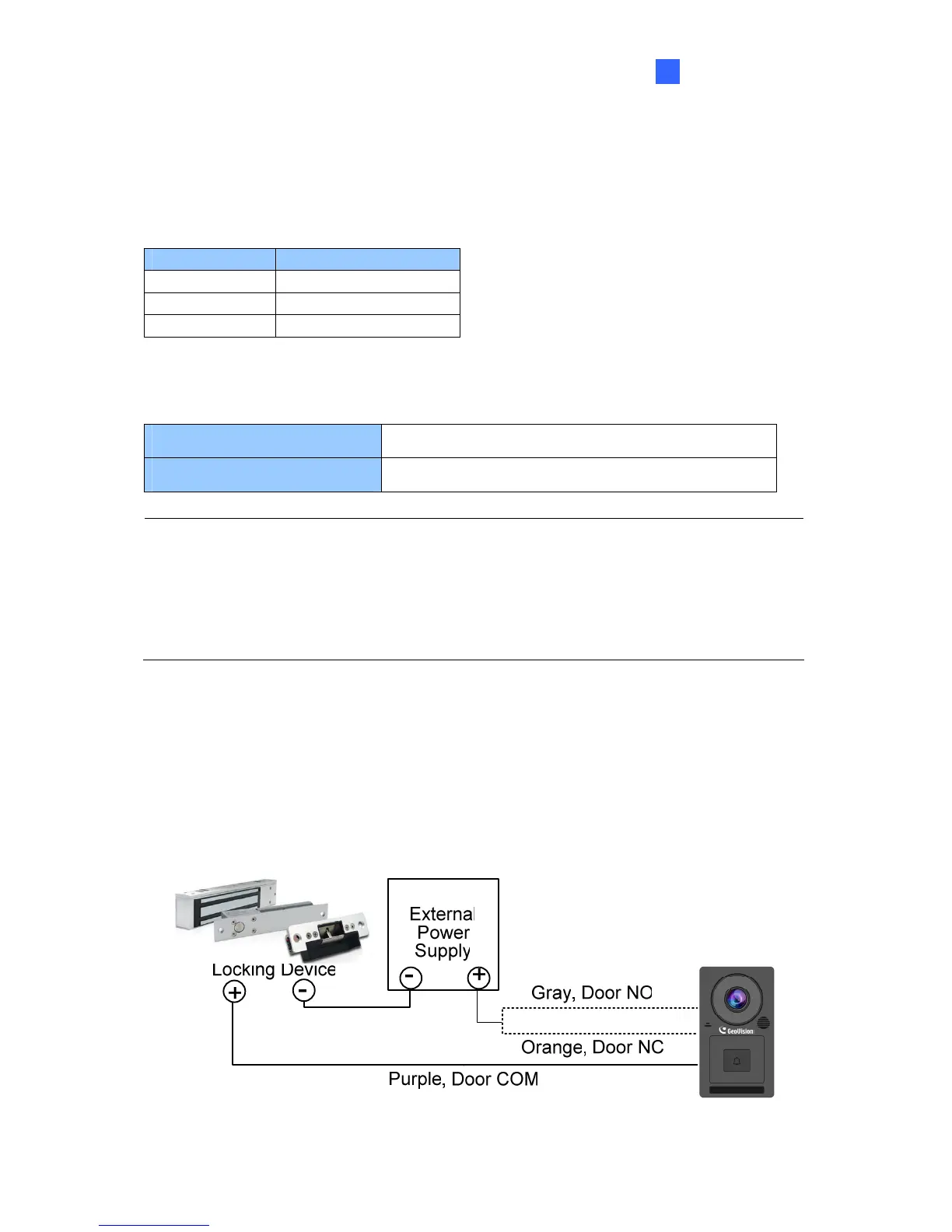

The example below illustrates the connection of a locking device to GV-CS1320. Connect the
(+) point on the locking device to the Door COM wire on GV-CS1320, connect the two (-)
points of the locking device and the external power supply together, and connect the (+) point
on the external power supply to the Door NO or Door NC wire on GV-CS1320 based on the
state of the locking device.
Figure 1-13

GeoVision GV-CS1320 Specifications

General

Type	IP security camera
Certification	CE, FCC, RCM, RoHS
Day/night mode	Yes
Languages support	CHI (TR), ENG, ESP, FRE, POR, RUS
Number of languages	6
Operating frequency	13.56 MHz
Placement supported	Outdoor
Connectivity technology	Wired
Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/2.8 \
Number of effective pixels (H x V)	1920 x 1080 pixels
White balance	Auto, Manual
Camera pan control	No
Camera shutter type	Electronic
Camera shutter speed	1/5 s
Minimum illumination	0.02 lx
Adjustment shutter speed	Auto/Manual
Field of view (FOV) angle	180 °
Audio formats supported	AAC, G.711
Signal-to-Noise Ratio (SNR)	52 dB
LED type	IR
Night vision distance	3 m
Number of illumination LEDs	2
Fixed focal length	1.7 mm
Focal length range	1 - 1 mm
Maximum aperture number	2.5
Total megapixels	2 MP
Video formats supported	H.264, M-JPEG
Wi-Fi	-
Ethernet interface type	Fast Ethernet
Supported network protocols	HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMARTSP, PSIA, SNMP, QoS(DSCP), ONVIF(ProfileS)and(ProfileC)
Compatible memory cards	MicroSD (TransFlash)
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	10 - 90 %
DC output current	2.5 A
DC output voltage	12
Power source type	DC, PoE
Power consumption (max)	25.5 W
Sustainability certificates	RoHS
Mounting type	Wall
Product color	Black
International Protection (IP) code	IP66
Memory card included	MicroSD
Included memory card size	2 GB

Weight and Dimensions

Depth	34.5 mm
Width	80 mm
Height	137 mm
Weight	315 g
