GeoVision GV-CS1320 User Manual

Getting Started
25
2
2.2 Assigning an IP Address
Follow the steps below to assign a new IP address.
Note:
1. GV-CS1320 has a default IP address of 192.168.0.10. The computer used to set the
IP address must be under the same network assigned to the unit.
2. If your router supports the DHCP server, GV-CS1320 will obtain a dynamic IP
address from the DHCP server each time it connects to the LAN, instead of using
192.168.0.10.
1. Open your web browser, and type the default IP address http://192.168.0.10
2. In both Login and Password fields, type the default value admin. Click Apply.

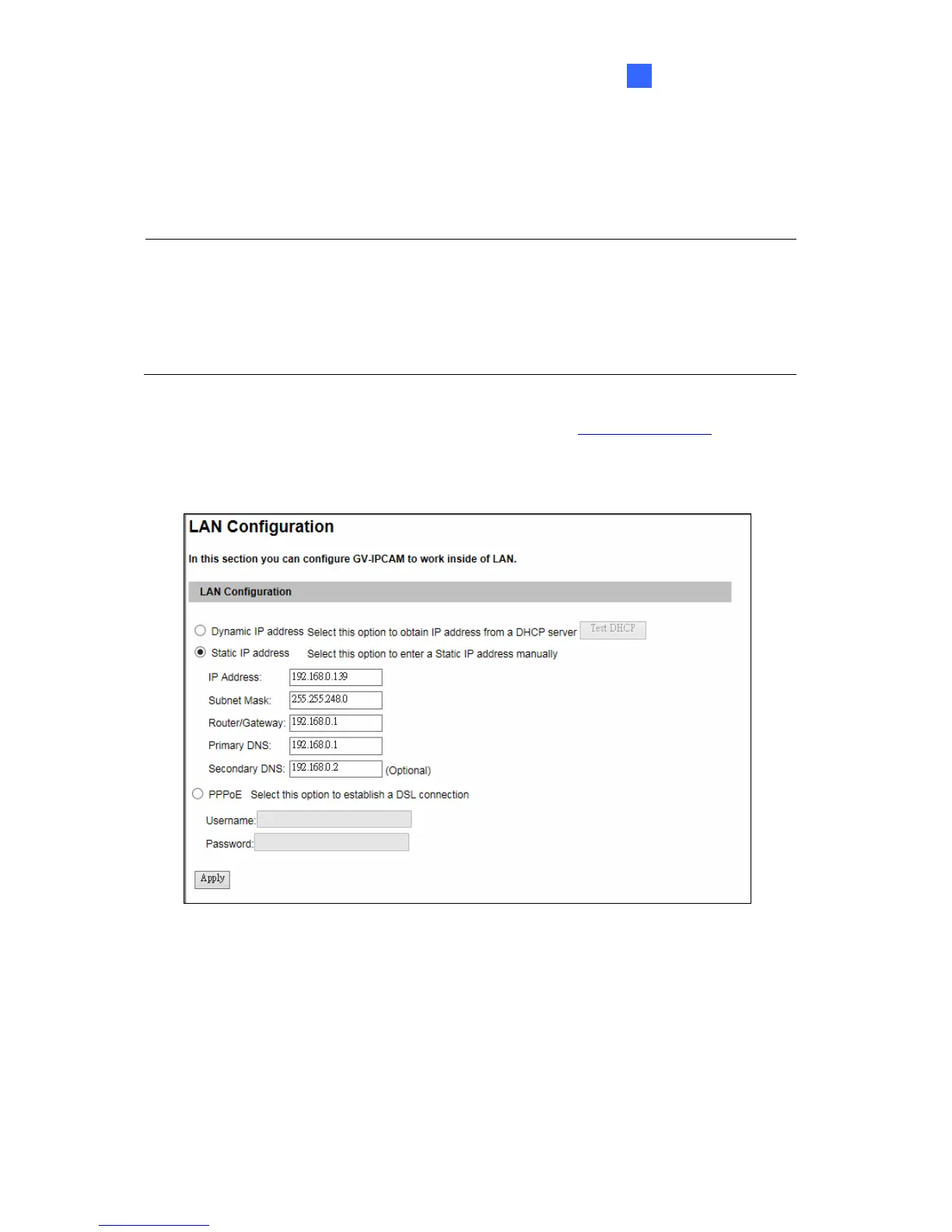

3. In the left menu, select Network and then LAN to begin the network settings.
Figure 2-4
4. Select Static IP address. Type the IP Address, Subnet Mask, Router/Gateway, Primary
DNS and Secondary DNS.
5. Click Apply. GV-CS1320 is now accessible by entering the assigned IP address on the
web browser.

GeoVision GV-CS1320 Specifications

General

Type	IP security camera
Certification	CE, FCC, RCM, RoHS
Day/night mode	Yes
Languages support	CHI (TR), ENG, ESP, FRE, POR, RUS
Number of languages	6
Operating frequency	13.56 MHz
Placement supported	Outdoor
Connectivity technology	Wired
Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/2.8 \
Number of effective pixels (H x V)	1920 x 1080 pixels
White balance	Auto, Manual
Camera pan control	No
Camera shutter type	Electronic
Camera shutter speed	1/5 s
Minimum illumination	0.02 lx
Adjustment shutter speed	Auto/Manual
Field of view (FOV) angle	180 °
Audio formats supported	AAC, G.711
Signal-to-Noise Ratio (SNR)	52 dB
LED type	IR
Night vision distance	3 m
Number of illumination LEDs	2
Fixed focal length	1.7 mm
Focal length range	1 - 1 mm
Maximum aperture number	2.5
Total megapixels	2 MP
Video formats supported	H.264, M-JPEG
Wi-Fi	-
Ethernet interface type	Fast Ethernet
Supported network protocols	HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMARTSP, PSIA, SNMP, QoS(DSCP), ONVIF(ProfileS)and(ProfileC)
Compatible memory cards	MicroSD (TransFlash)
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	10 - 90 %
DC output current	2.5 A
DC output voltage	12
Power source type	DC, PoE
Power consumption (max)	25.5 W
Sustainability certificates	RoHS
Mounting type	Wall
Product color	Black
International Protection (IP) code	IP66
Memory card included	MicroSD
Included memory card size	2 GB

Weight and Dimensions

Depth	34.5 mm
Width	80 mm
Height	137 mm
Weight	315 g
