Target Mini Fixed Rugged Dome
7

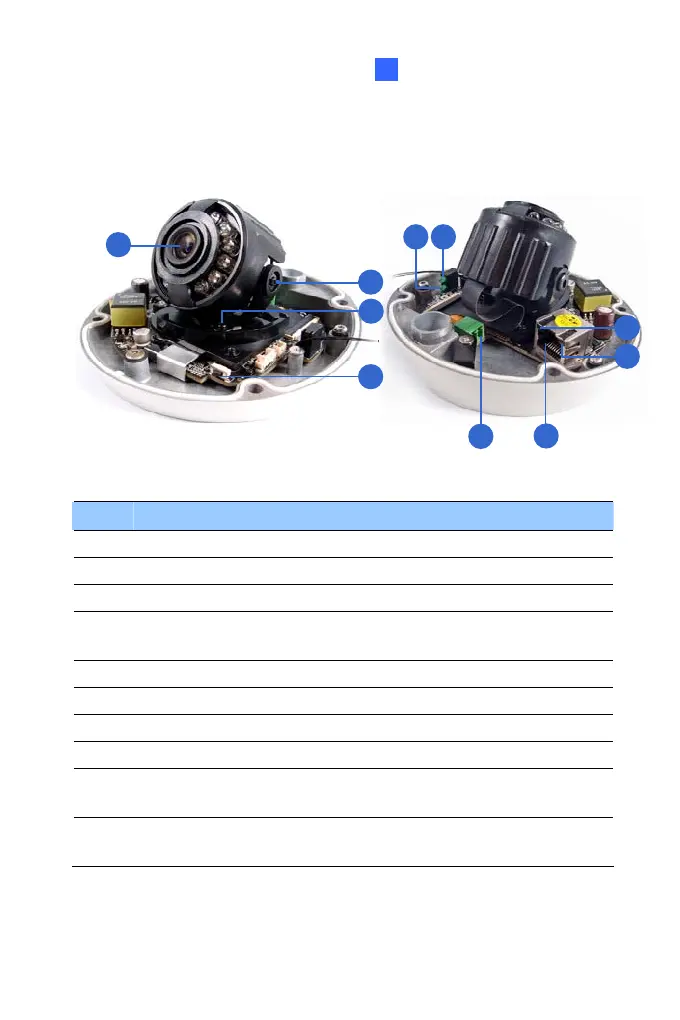

7.2 Overview
5
d
a b
6
c
1
3
2
4
No. Name Description
1 Lens Receives image inputs.
2 Pan Screw Loosens the screw to adjust pan angle.
3 Tilt Screw Loosens the screw to adjust tilt angle.
4 Default Button
Resets the camera to factory default. See 24.
Restoring to Factory Default Settings.
5 DC 12V Port Connects to power.
6 LAN / PoE Connects to a 10/100 Ethernet or PoE.
a Status Turns on (green) when the system is ready.
b Power Turns on (green) when power is on.
c Link
Turns on (green) when the network is
connected.
d ACT
Turns on (orange) when data are being
transmitted.
