Calibration

Inkjet Cartridge Alignment

1. Click on the Infinity icon to open the Infinity interface.

2. Click on the calibration button

to open the

calibration screen.

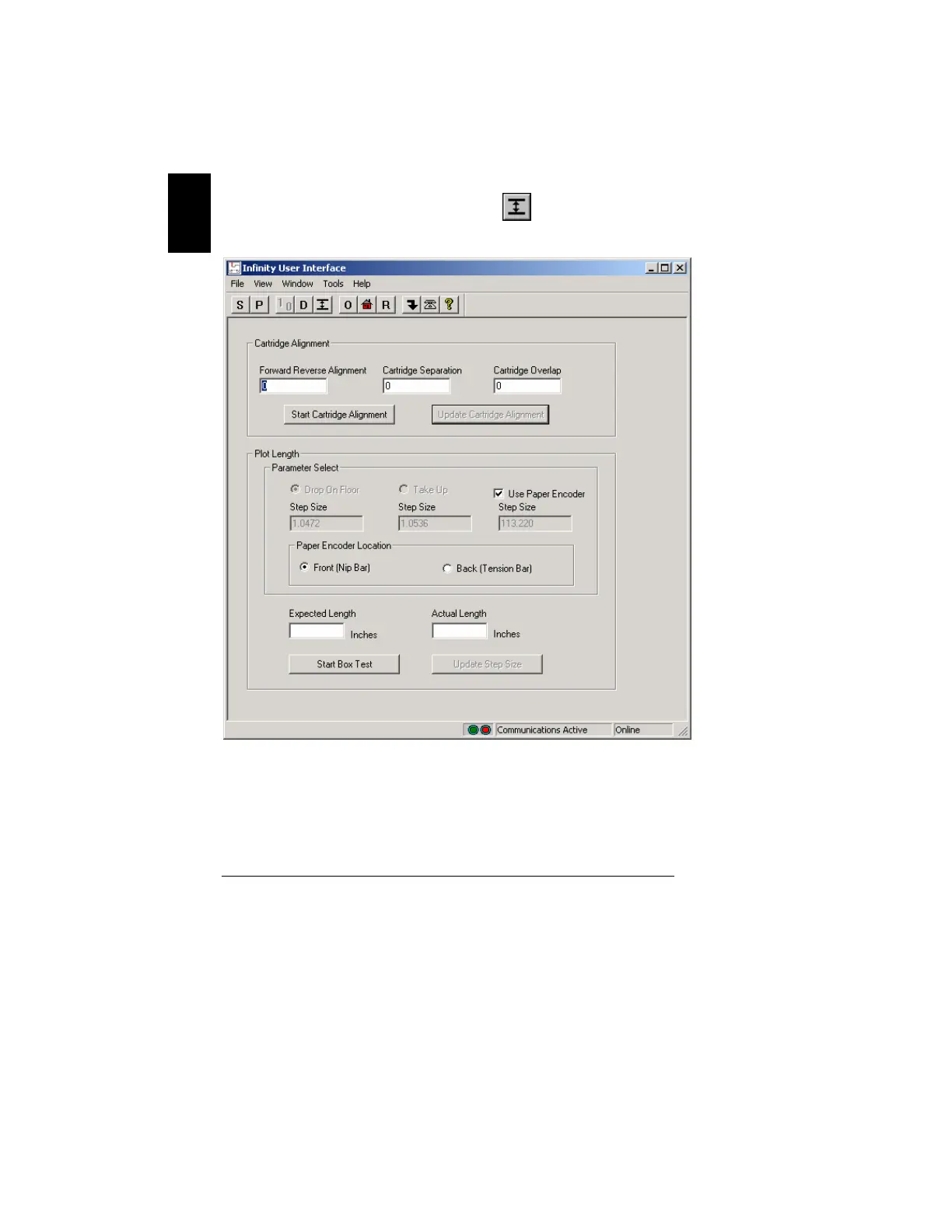

Figure 28. Plotter Calibration Screen
