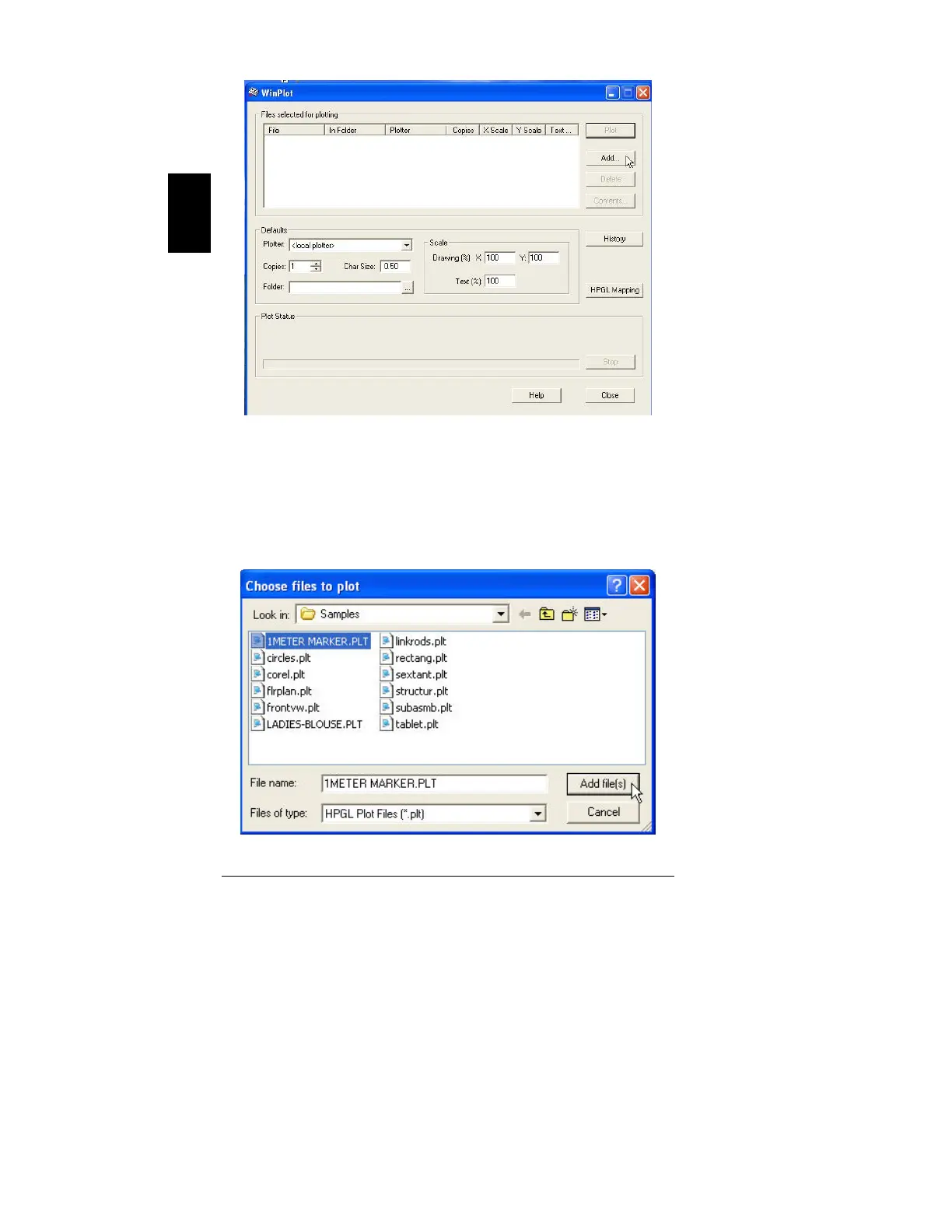

Figure 31. WinPlot screen

6. Next, select a plot at the Choose Files to Plot screen by

browsing to c:/ Program Files/Gerber

Technology/AccuMark V8/WinPlot/Samples or

c:/ WinPlot/Samples depending on the version of WinPlot

installed. Select the marker called 1MeterMarker.PLT

and click Add File(s) (Figure 32).

Figure 32. Choose files to plot screen
