Long-Life Ink Delivery System - Infinity 85
Description
The long life ink delivery system for the Infinity 85 Plotter benefits
the user with more plotting time and fewer stops in production to
load ink. The system includes the components shown in the
simplified figure below. The bulk ink cartridge (1) holds 350 ml of ink.
Ink is pressurized by a pump. Flexible tubes (4,6) connect the bulk
ink cartridge to the print head cartridges (2). A quick disconnect
fitting (5) is located between the print head cartridge (2) and the ink
pressure regulator (7).

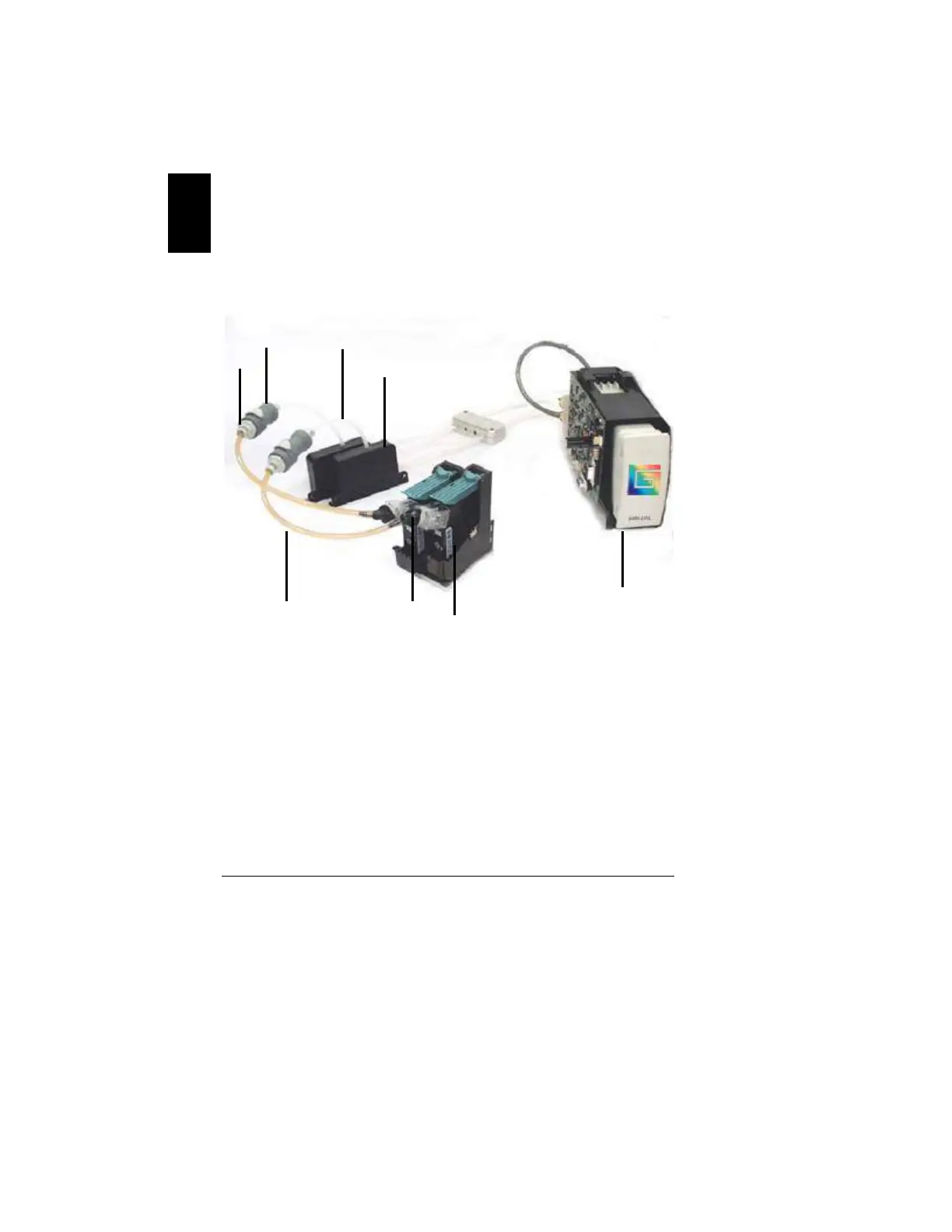

Figure 15. Long Life Ink Delivery System
Key to Figure
1-Bulk Ink Cartridge, 2-Print Head Cartridge, 3-Print Head Cartridge
Interconnect Valve, 4-Print Head Cartridge Delivery Tube, 5-Quick
Disconnect Fitting, 6-CPC Connector, 7-Outlet Tubing, 8-Pressure
Regulator
1
2
3
4
5
6
7
8
