RENTAL SERIES
ELECTRICAL GENERATOR
22
23
RENTAL SERIES
ELECTRICAL GENERATOR

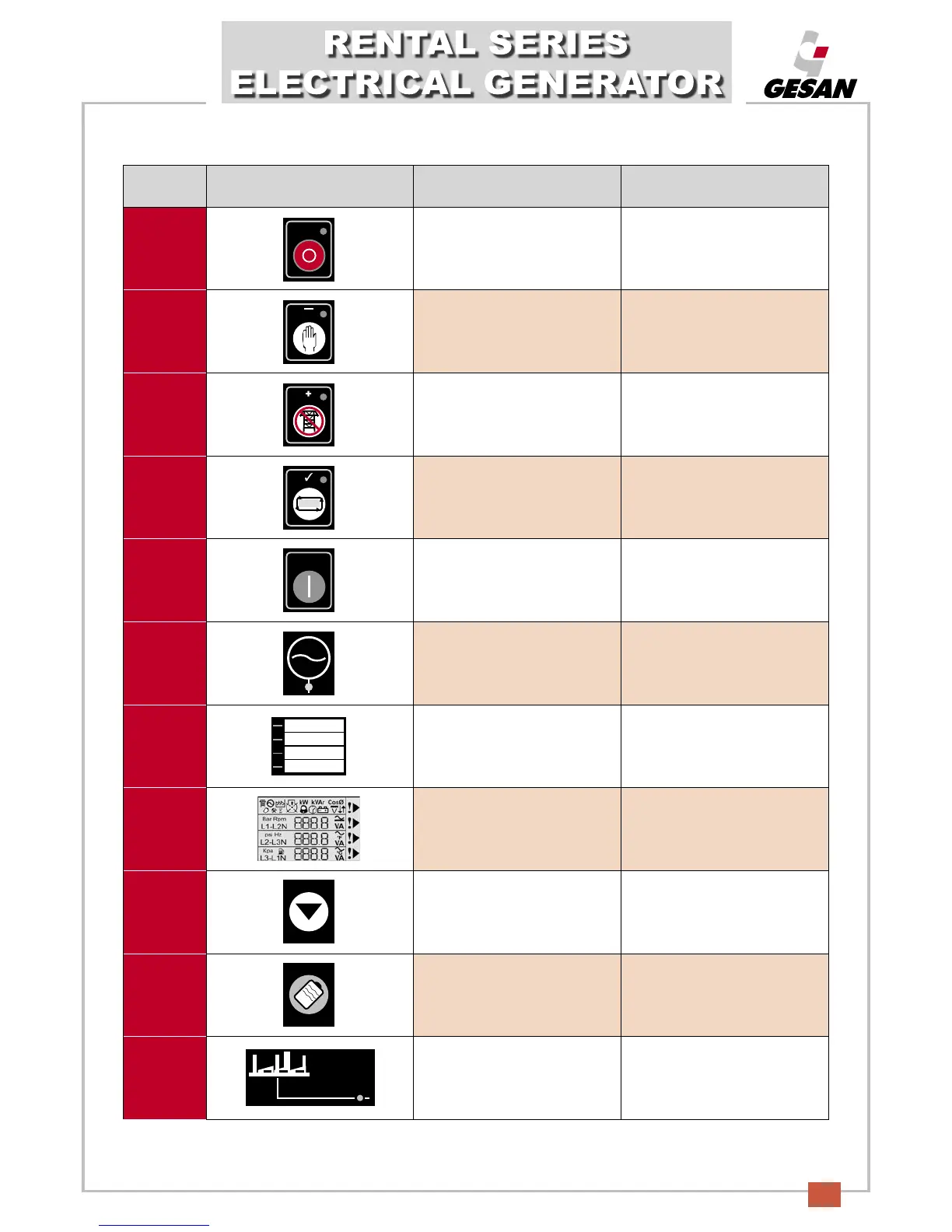

NUMBER SYMBOL DESCRIPTION IDENTIFICATION
1
Stop button.
Control module connection.
Green LED
2
MANUAL mode button.
Settings -
Green LED
3
Settings +
4
AUTOMATIC mode button.
Settings: ENTER.
Green LED
5
Startup button for Electrical generator.
6
When lit, indicates correct readings for
electrical generator.
Green LED
7
Configurable LED indicators.
8
Screen indicating the status of the
electrical generator.
9
Down button on the screen menu.
10
Event Log button.
11
L ED lit: Electrical generator is supplying
consumers.
Green LED
