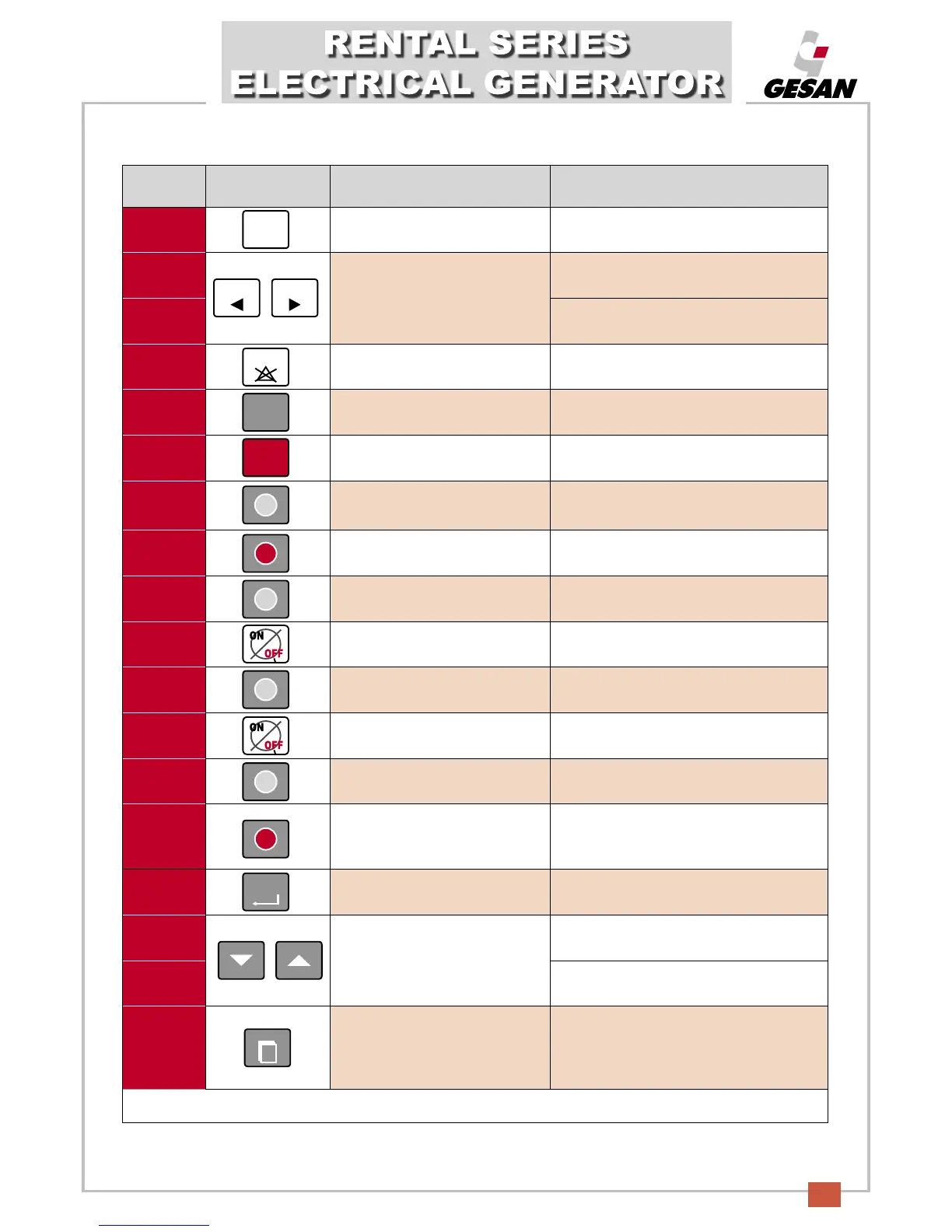

RENTAL SERIES
ELECTRICAL GENERATOR
NUMBER SYMBOL DESCRIPTION IDENTIFICATION
1
Deactivates audible alarm.
2
Scrolls through different operating
modes
.
OFF←MAN←AUT←TEST
3
OFF→MAN→AUT→TEST
4
Fault reset
.
Acknowledges faults and alarms.
5
Start button.
In manual mode.
6
Stop button.
In manual mode.
7
Generator voltage present.
Green if unit voltage is present
and within limits.
Flashes during synchronization with mains.
8
Electrical generator failure.
Flashing Red LED indicates alarm.
9
State of GCB.
Green when GCB is closed.
Flashes during synchronization with mains.
10
GCB on/off.
Opens and closes GCB in manual mode.
11
State of MCB.
Green is MCB is closed. Flashes during
synchronization with mains.
12
MCB on/off.
13
State of mains power.
Green if mains power is correct.
14
State of voltage supplied to
consumers.
Red light flashes if mains failure occurs
and generator stops; continuous if
generator is operating, turns off
when mains power restored.
15
Enter button.
Confirms on-screen value.
16
Selects on-screen value.
Increases value.
17
Increases value.
18
Button to cycle through the
menus.
Cycles through display screens.
→MEASUREMENT
→ADJUSTEMENT
→HISTORY
Horn
reset
Mode
Mode
Fault
reset
Start
I
Stop
0
Enter
Page
To Next Page
