Page 14 of 24
PTFE tape is recommended for sealing the connections.
Connect the disinfector to a waste outlet with a capacity of at least 40 litres/min.
Connect the waste as shown in Figure 5. Diameter of waste: 50 mm (2”).

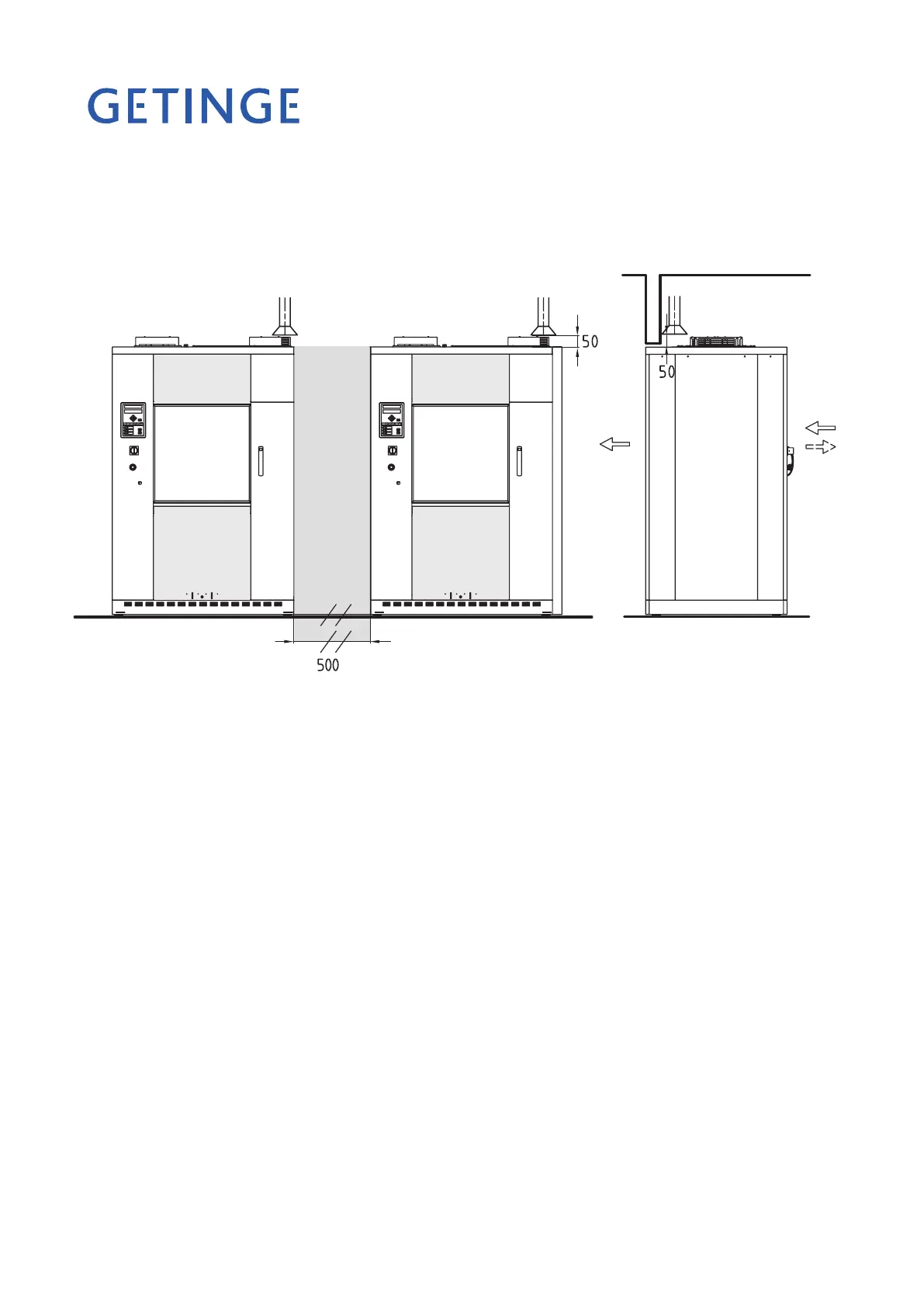

Where the washer disinfector is installed against a wall, or where two machines are
positioned next to each other, Getinge recommends leaving a 500 mm service area.
•
•
•
Figure 7. Connecting a dryer
Connect air exhaust from dryer (if the machine has a dryer)
Air volume: approx 350 m
3
/h.
Model identification
The rating plate for an 88-5 washer disinfector is located in the detergent compartment.
Make a written note of the type designation and serial number (No.) from the rating plate.
Type:______________________________________
Serial number:______________________________
When contacting Getinge, quote the model type and serial number.
•
J036b
