Wall-mounted model
If the machine is to be mounted in a wall, the distance between machine and wall
must be 15 mm.
If machines are to be installed next to each other they must be adjusted to the same
height on installation.
Set the machine horizontal with a spirit level on the side of the machine and adjust
with the feet.
For the loading trolley to work in all the machines, the oor in front of them must
be at and level.
Fitting AGS
When AGS is installed, the plinth plate must be removed, since it is replaced by a
plinth plate in the AGS installation.
Service panels on the roof must be removed and any water connections disconnected
so that they can be temporarily lowered into the roof panel to reduce the height of
the machine.
•
•
•
•
•
•

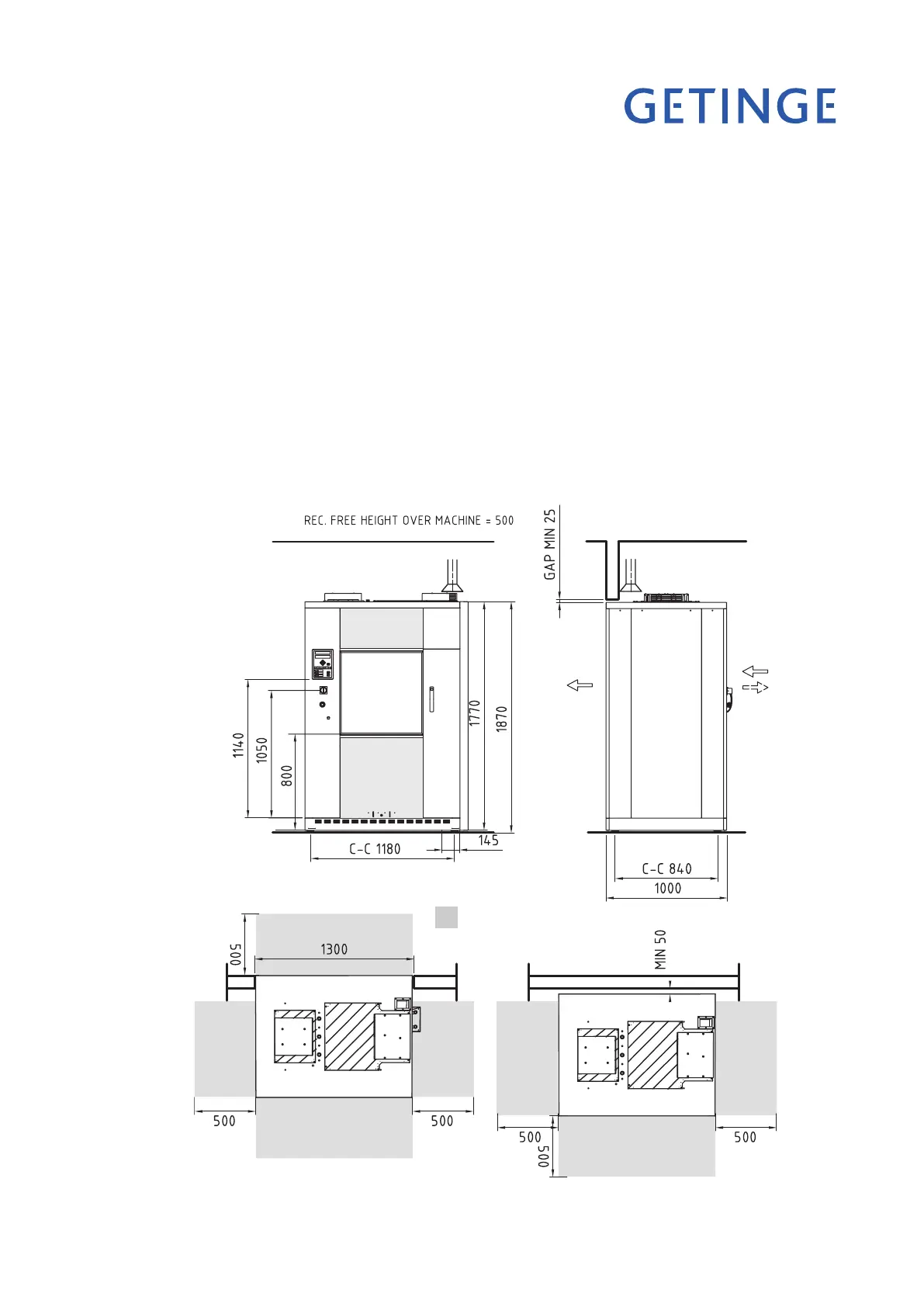

Figure: dimensions
J033
Service area
