INSTALLATION
The oor where the machine is to stand must be at and level within ±5 mm.
Pull the machine (on a transport pallet) to the location where it will be installed.
Lift the machine off the pallet.
Position the machine at the chosen location and adjust the feet so that the machine
is stable.
Adjust the loading cart docking system vertically and laterally so that it ts with the
cart.
•
•
•
•
•
Base frame
V318b

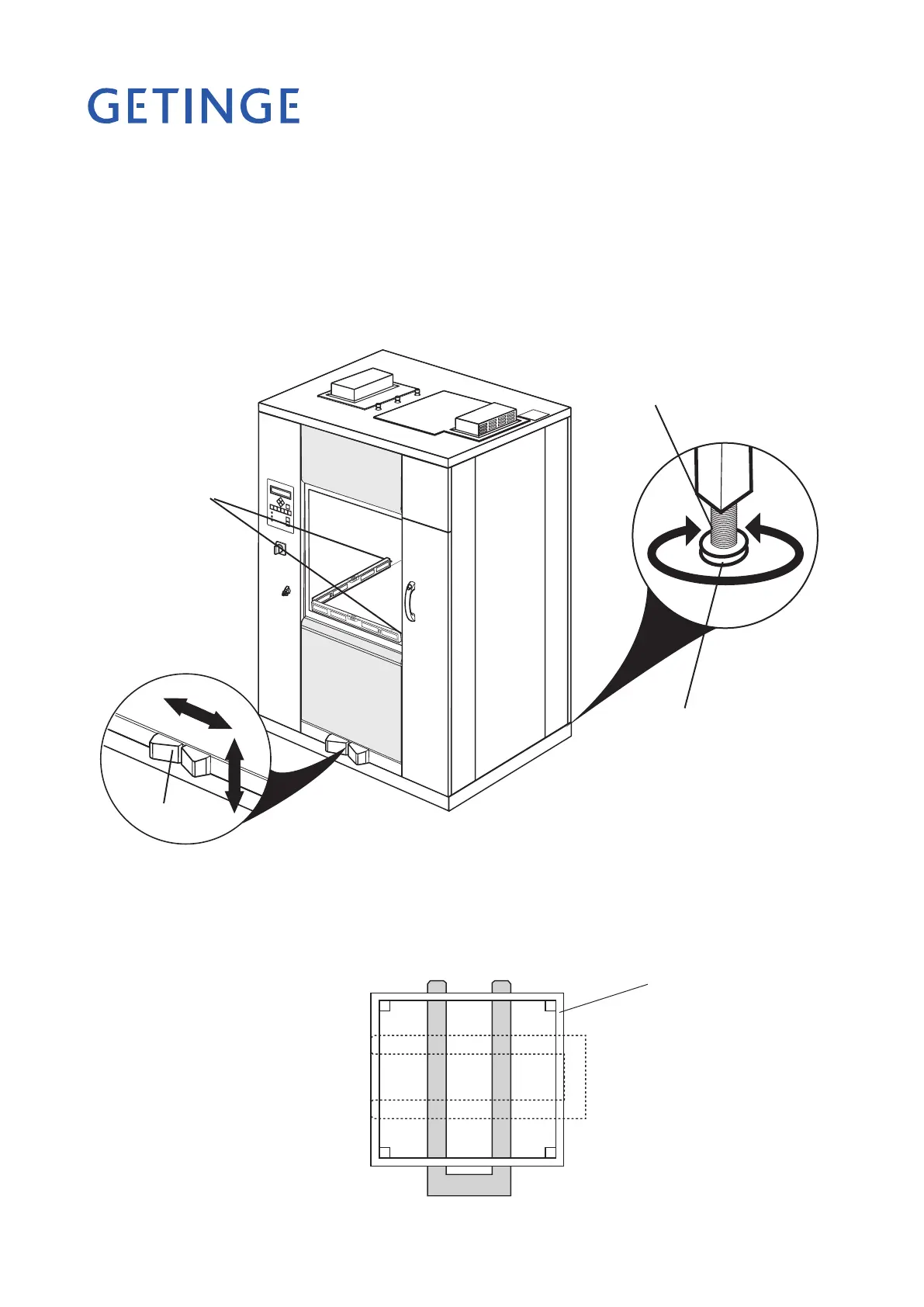

Figure 1. Adjustment
Using a spirit level, check as shown in Figure 1 that the machine is level within ±2 mm.
If you need to move the machine by using a pallet truck:
Position the pallet truck forks as shown in Figure 2 so as not to damage the machine.
•
•
Figure 2. Positioning the pallet truck forks.
Level the
machine with
a spirit level.
J031
J032
Foot plate
Adjusting screw
Docking
J205
