Details (2.1.1)
DETAILS is selected by highlighting the text in the display using the cursor buttons. When the DETAILS
text is highlighted, press ENTER. When DETAILS is selected, screen (1.1) becomes the process screen
while you go up one level in the menu tree and end up in the process screen.
49,1 C
WASH1 TEMP SP
P1 HC SHORT
00:12:24
01 STANDBY
00:02:22
A34 I/O FAULT
00:03:00
WASH1 TIME
128,1 C
DRYER TEMP
SETUP
SELECT
CYCLE
PARA-
METERS
CHAMBER TEMP
17,2 C
INDEPENDENT TEMP
38,1 C
DISCHARGE PRESS
0.000 BAR
DRYER TEMP
22,6 C
DRY FILTER DIFF PR
BOOSTER TEMP
2,03 mBar
21,3 C
000620
1
32
11
7
12
13
6
5
4
8
9
10
14
15

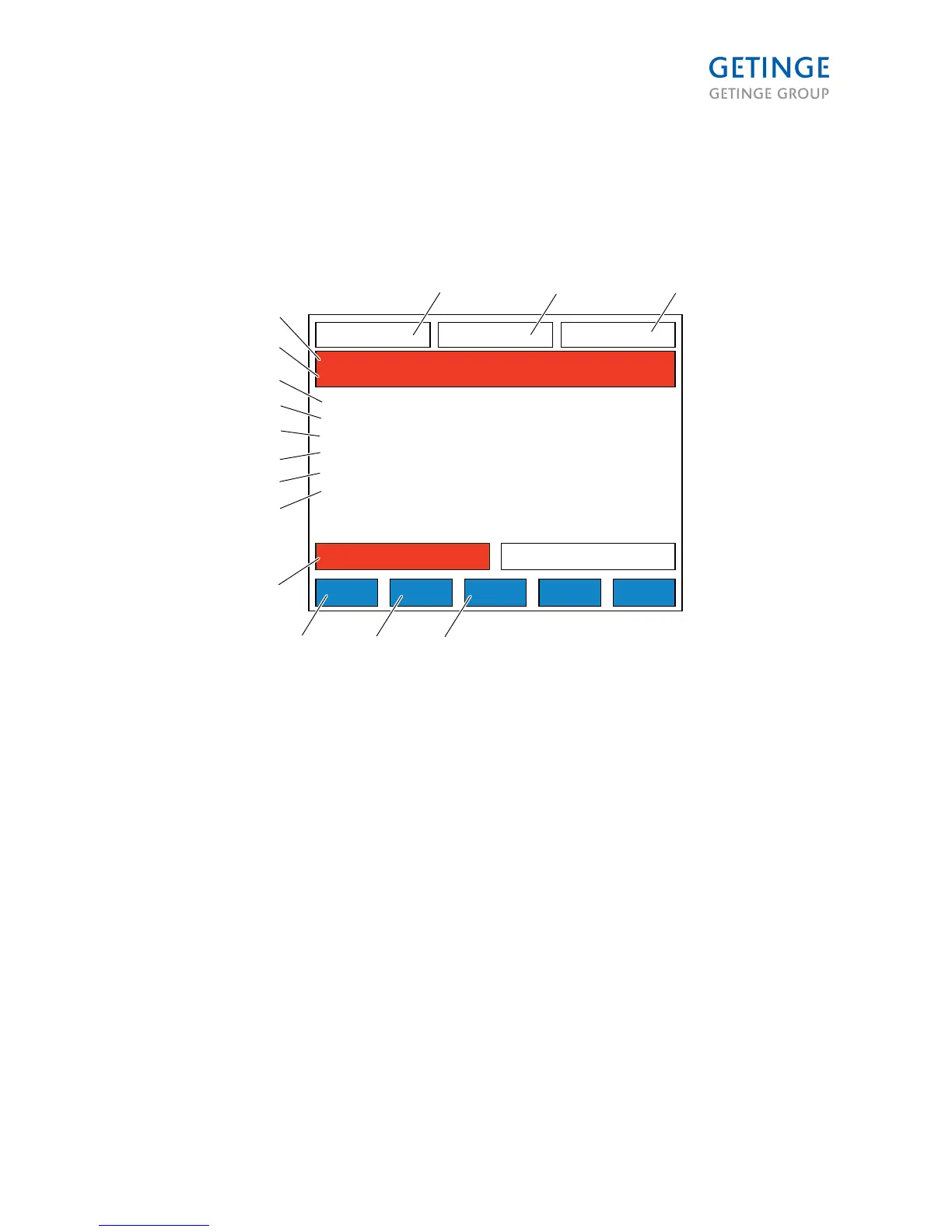

1. WASH1 TEMP SP
2. WASH1 TIME
3. DRYER TEMP
4. PARAMETERS
5. SELECT CYCLE
6. SETUP
7. A34 I/O FAULT
8. BOOSTER TEMP.
9. DRY FILTER DIFF PR
10. DRYER TEMP
11. DISCHARGE PRESS
12. INDEPENDENT TEMP
13. CHAMBER TEMP
14. STANDBY
15. HC SHORT
