Getinge 9128 - Venting System; Electrical Connection

• Place the casing that covers the cables on the respective cable ducts.
• Fit the cover panels on the clean and soiled sides.
557100
0
1
1
1. Cover panel
Venting system

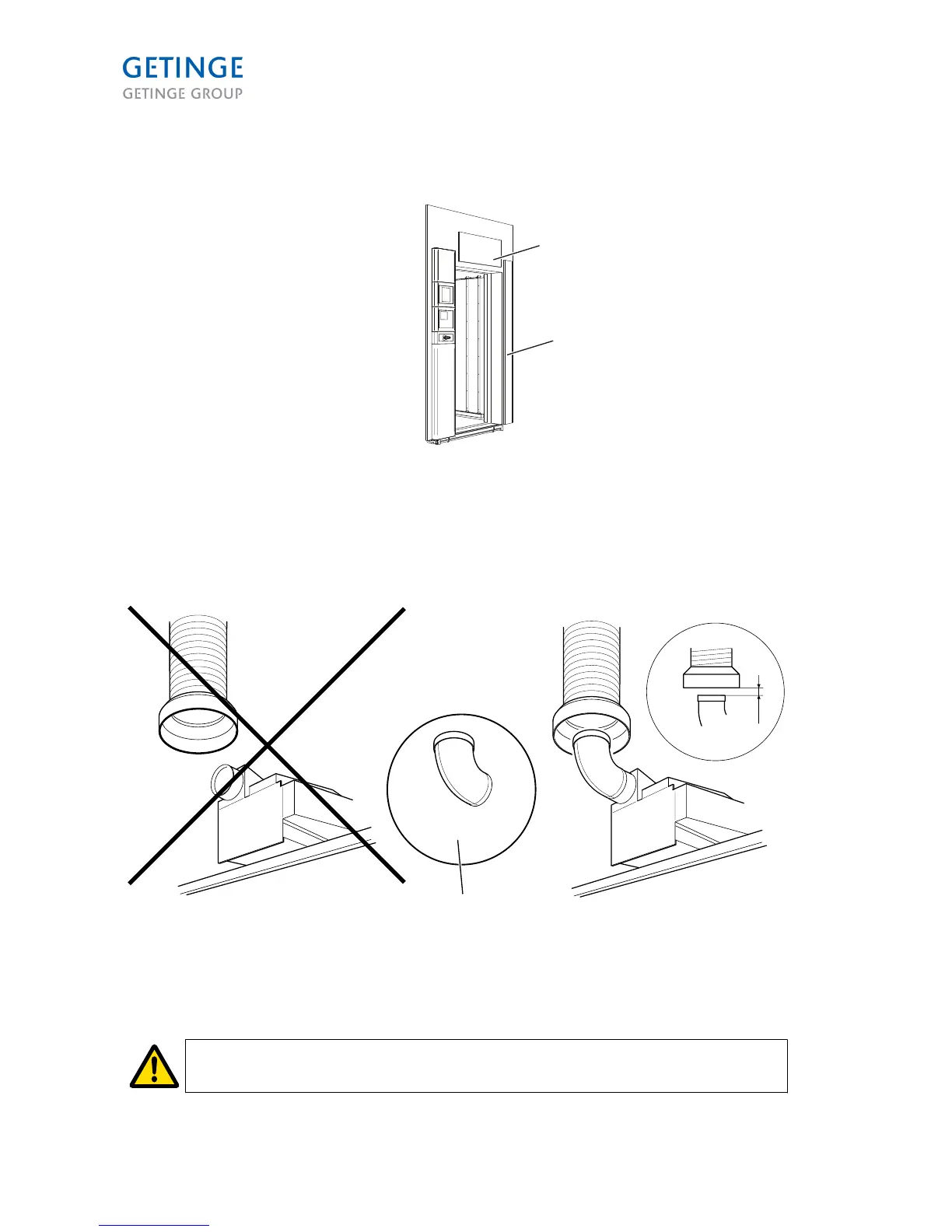

The venting system shall have an air gap of at least 50 mm direct after the exhaust. See drawing no.
5018514 for more information.
50 mm
1
001756
1. Not supplied by Getinge
Electrical connection
The electrical installation may only be performed by an authorized electrician.
The power supply cable is connected to the incoming connection terminals and the protective earth
connects to the ”PE” connection terminal.
