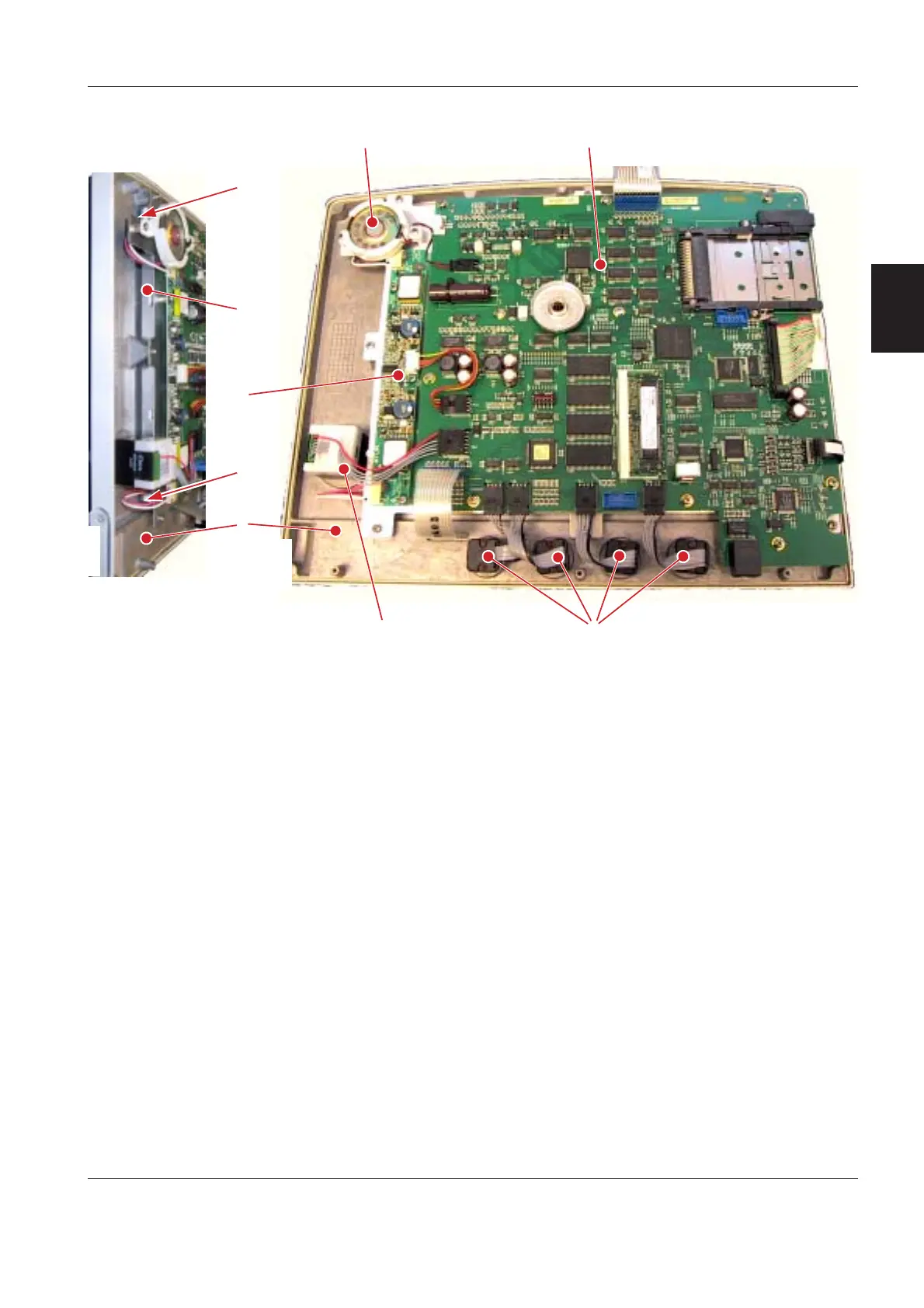

When the front panel section is removed from the
rear cover, the following parts are accessible:
1. Touch screen assembly, front cover frame
included.
2. TFT Display.
3. Backlight lamps.
4. PC board Backlight inverter.
5. PC 1777 Panel including PC Card slot.
6. Loudspeaker.
7. Main rotary dial (rotary encoder with switch).
8. Direct access controls (rotary encoder).
H
9
6
9
?@
=
;
<
SVX9013
SVX9012
