2.7 Connecting water and waste outlet
WARNING!
Only to be carried out by authorized staff.
Note: Adapter for the 1/2" to 3/4" hose needed during
installation, included with the machine.
• Supply the water connections with separate shut off valves.
Flush out the water pipes that are to be connected to the
machine, to prevent clogging of filters and valves.
• Connect the machine to cold and hot water and possibly
distilled water connections.
000450
1
A
B
A
B

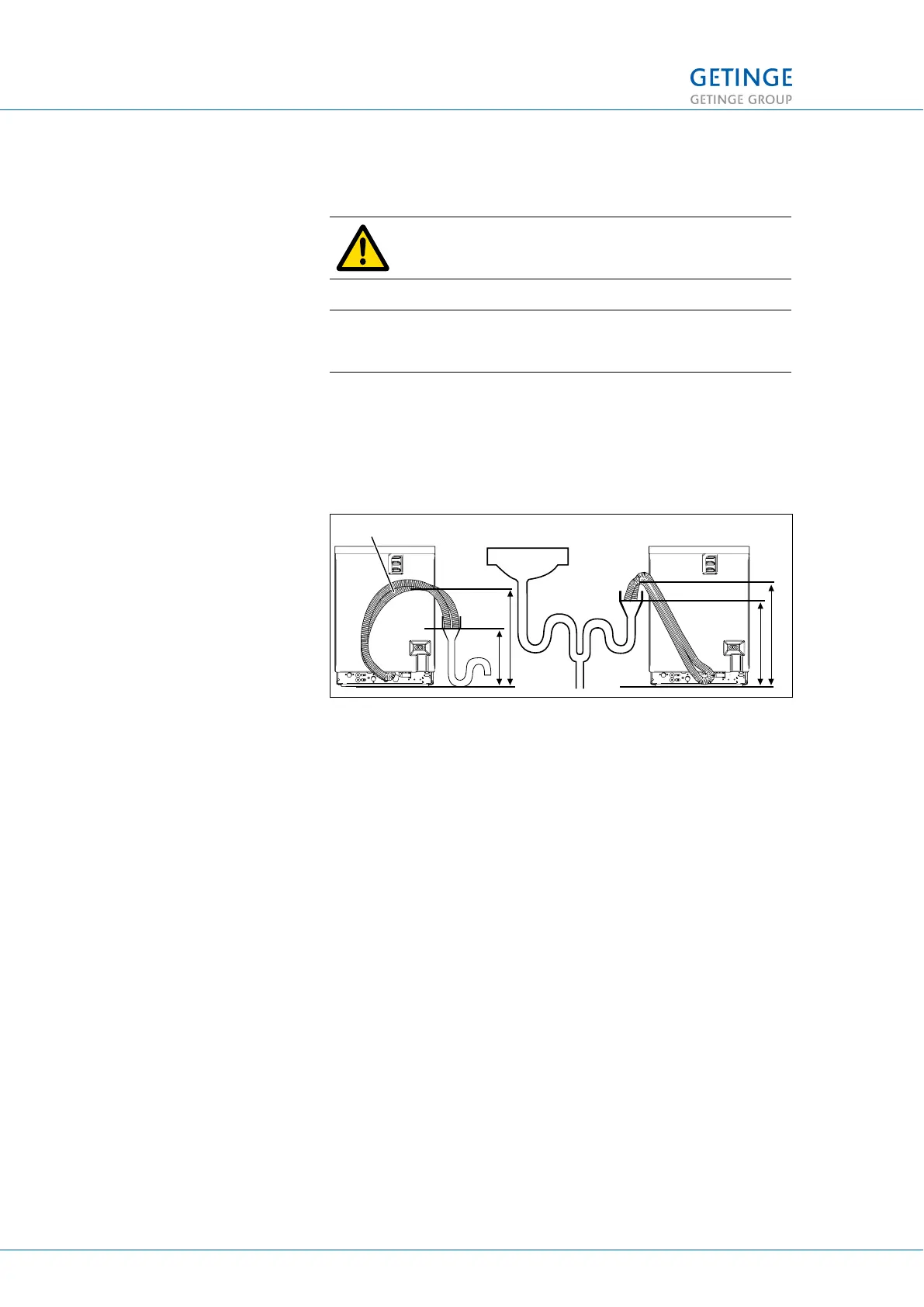

Figure 8. Water and drain system
1. Waste and condensation
water/waste outlet cooling
hose
A. Max 600 mm
B. Min 400 mm
2.7.1 Drainage connection
• The waste system is not equipped with a check valve. This
means that waste connection must be properly installed
according to the applicable instructions.
2.7.2
Waste hoses
• The hoses may not be shortened or lengthened.
• The hoses must be laid out so that they are not bent, pinched
or tangled.
• The hoses may not be connected together before reaching
the connection point.
• The hoses may not hang below the machine's lower edge.
2 INSTALLATION
20 (48) INSTALLATION MANUAL GETINGE WD15 CLARO
