GC 334
TECHNICAL SPECIFICATIONS

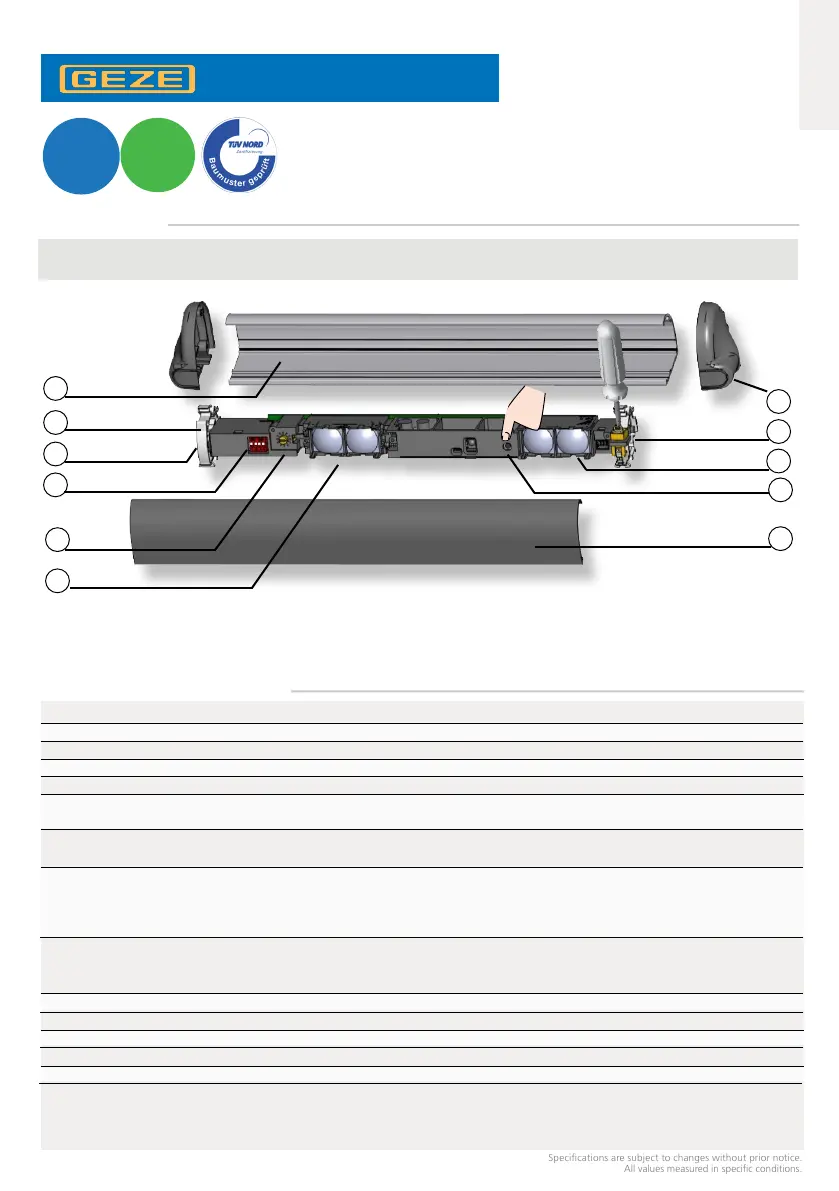

1. profile
2. supporting clip
3. main connector
4. DIP-switch
5. calibration screw
6. receiver
DESCRIPTION
ENGLISH
SAFETY SENSOR
FOR AUTOMATIC SWING DOORS
7. end cap
8. clip with angle adjustment screw
9. transmitter (TX)
10. push button
11. front face
active infrared with background suppression
400 mm (W) x 70 mm (D) (at 2 m mounting height; 4 spots active)
1.3 m to 3.5 m
64 ms (typ)
infinite
12 V - 24 V AC +/-10% ; 12 V - 30 V DC -5%/+10%
(to be operated from SELV compatible power supplies only)
95 mA @ 24 V AC/ 70 mA @ 24 V DC; 170 mA @ 12 V AC/ 130 mA @ 12 V DC (MASTER)
85 mA @ 24 V AC/ 60 mA @ 24 V DC; 180 mA @ 12 V AC/ 113 mA @ 12 V DC (other modules)
2 relays (free of potential contact)
42 V AC/DC
1 A (resistive)
30 W (DC) / 42 VA (AC)
1 optocoupler (free of potential contact)
30 V
high: >10 V DC; low: <1 V DC
4 (up to 6 if 24 V DC)
min. 5% at IR-wavelength of 850 nm
IP54
-25 °C to +55 °C; 0-95% relative humidity, non condensing
20 years
DIN 18650-1 ch. 5.7.4; EN 16005 ch. 4.6.8;
EN 12978; IEC/EN 61508 (SIL2)
EN ISO 13849-1 Performance Level «c» CAT. 2
(under the condition that the door control system monitors the sensor at least once per door cycle)
Technology:
Detection field:
Mounting height:
Reaction time:
Max. presence time:
Supply voltage:
Max current consumption:
Output:
Max. contact voltage
Max. contact current
Max. switching power
Input:
Max. contact voltage:
Voltage threshold:
Max. number of modules:
Reflectivity:
Degree of protection:
Temperature range:
Expected lifetime:
Conformity:
PLEASE KEEP FOR FURTHER USE
DESIGNED FOR COLOUR PRINTING
Specifications are subject to changes without prior notice.
All values measured in specific conditions.
User’s Guide for product version 0500 and higher
See product label for serial number
The GC334 is a safety sensor for automatic swing doors based on active infrared technology. It secures the area in front of
the moving door leaf. To do so, modules must be installed on the top rail of the door leaf.
