5 Commissioning
5.1 Radar detector
X

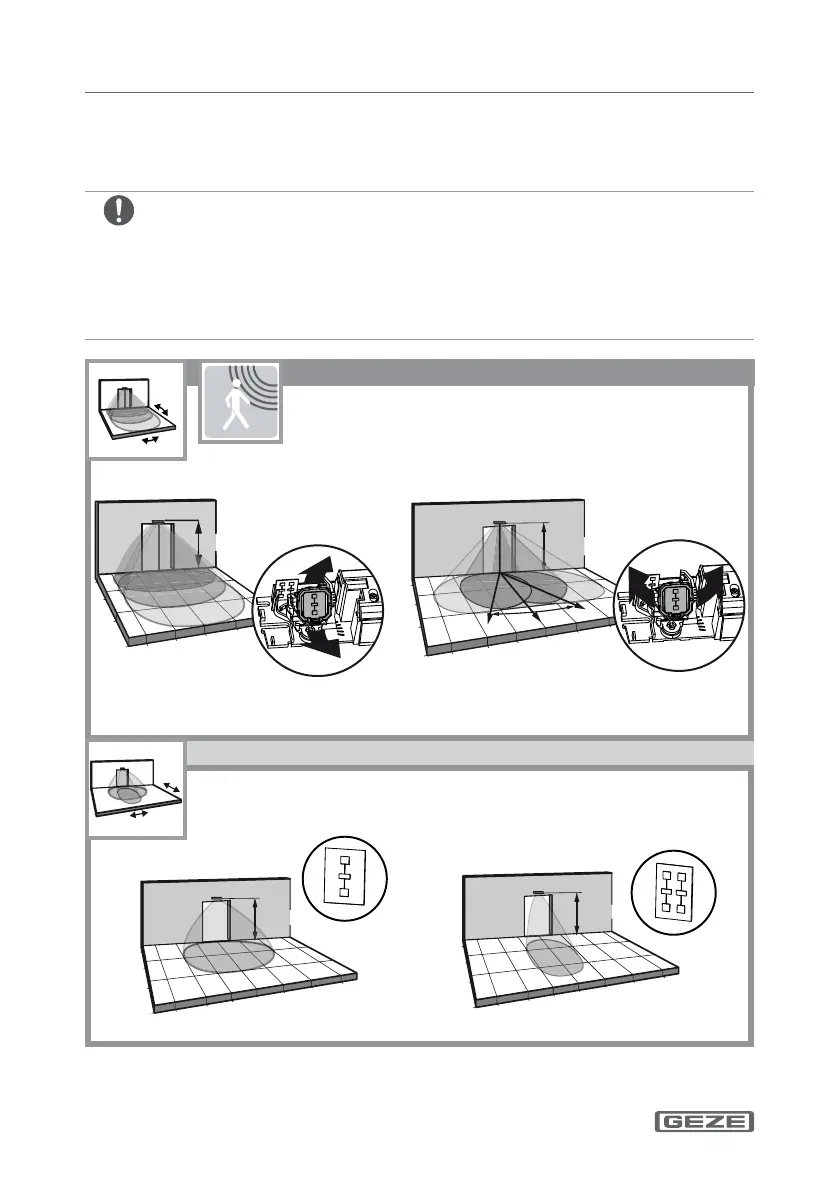

Set the detection eld and sensitivity of the radar movement detector as
per AutSchR:
à Scanned eld = opening width x 1.5 m
à Movement speed from 10 cm/s must be detected
à The whole door width must be covered for escape and rescue
route doors
0
0
1
1
1
2
2
2
3
30°
45°
15°
0
0
1
1
1
2
-15°
+15°
0°
2
2
3
3
3
2.2 m
2.2 m
15°…45°
–15°…15°
0
0
1
1
1
2
2
2
3
3
3
0
0
1
1
1
2
2
2
3
3
3
2.2 m
2.2 m
4m x 2m
2m x 2,5m
2.5 m
