GEZE Slimdrive EMD-R Wiring Diagram

EMD / EMD-F / EMD-F-IS / EMD-F/R / EMD Invers
7
Control unit and supply terminals
3 Control unit and supply terminals

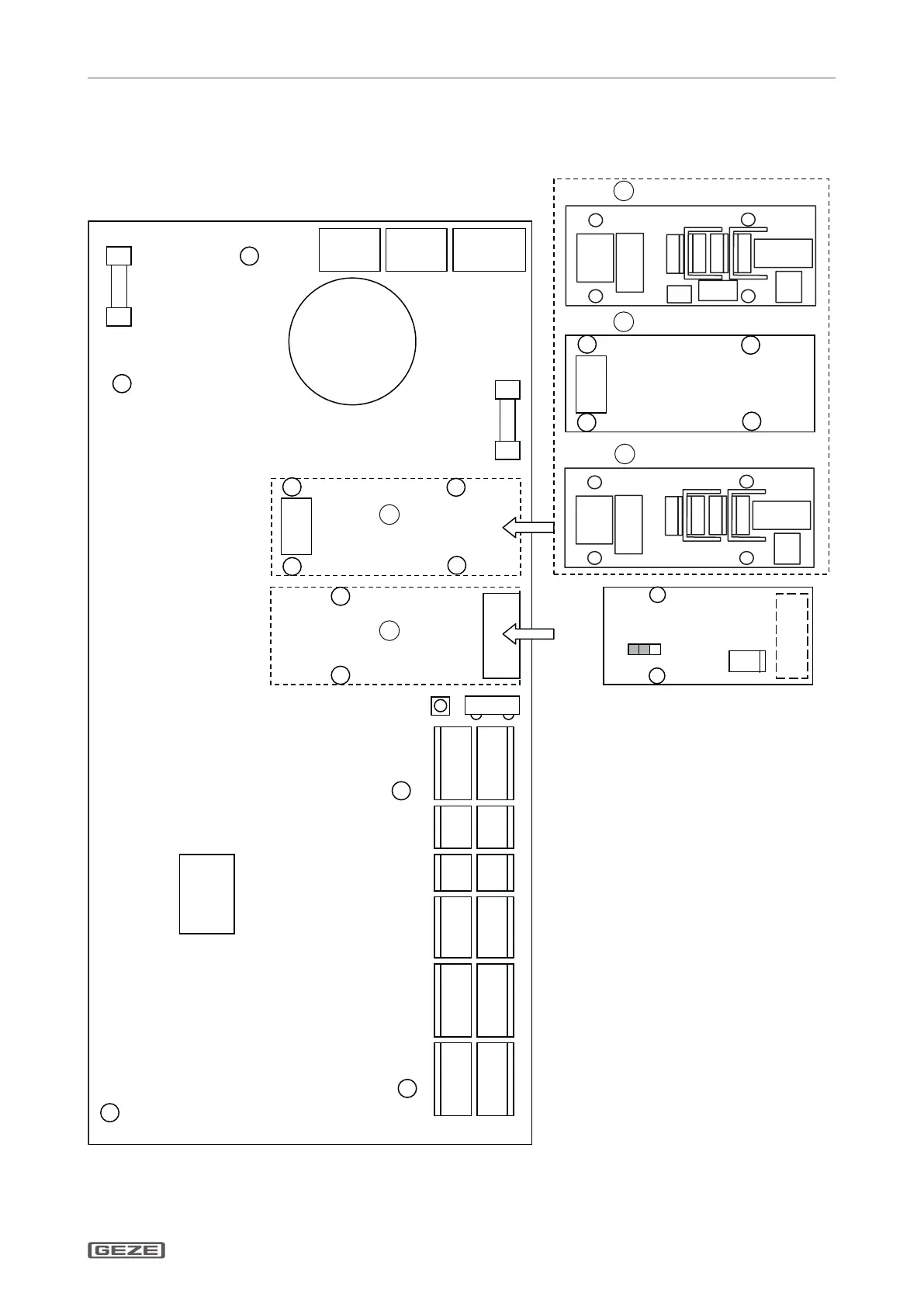

3.1 Control unit
F1
F2
Encoder
TEMP
AC IN Motor
DCU200
µR
RS485PA1 PA2
SIO KBKA
PE1 PE2
RS485 TOE
SIS STOP KI PS
RUN
PROG
CAN
DCU103
1 2 3
1
2
3
4
5
DCU202
DCU201
RSZ
PA3
RES
END
DCU204
RSZ
PA3
1 Control unit DCU201
2 Control unit DCU202
3 Control unit DCU204
4 Slot 1
5 Slot 2
1-2 CAN terminating resistance
inactive
2-3 CAN terminating resistance active
à Control unit DCU2, mat. no. 106037
Control unit DCU2-F, mat. no. 106038
Control unit DCU2-I, mat. no. 117297
Terminal bag DCU200, mat. no. 106040
à DCU200:
F1 AC IN (6.3 AT; 5x20 mm)
F2 24 V EXT (1.25 AT; 5x20 mm)
RUN Run LED
à Permanent light Operation
à 0.25 s on - 0.25 s o Fault
à 2 s on - 2 s o Brand new
Motor
Encoder
TEMP
