Staircase control unit THZ
35

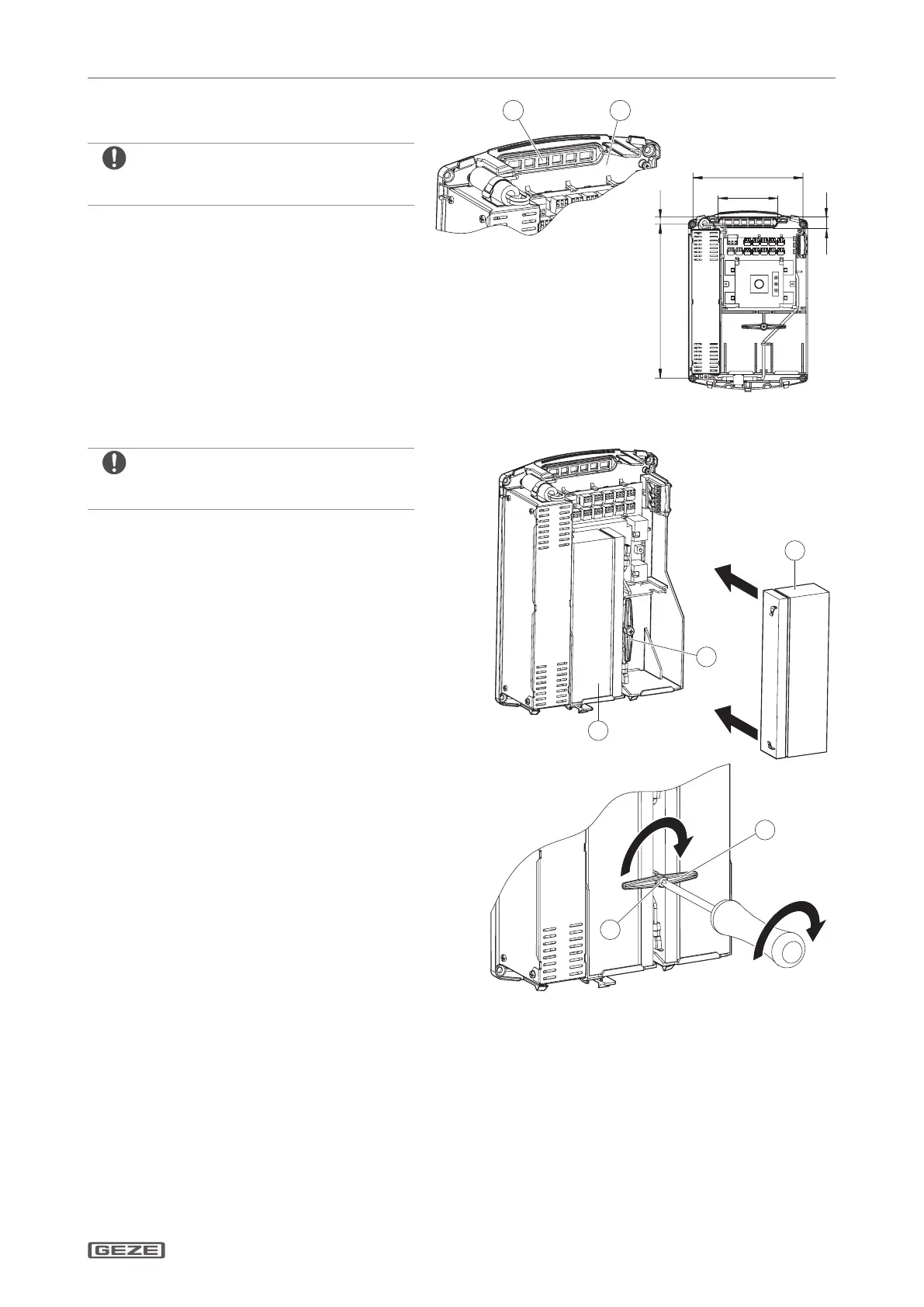

Mounting
X
In case of line-feed directly from the wall:
Break out the cable insertion opening (3).
X
Ensure that the screw-on surface is at
and that the back plate (4) lies plane on
the underground.
X
Drill the tting holes in accordance with
the drilling image.
X
Fasten the back plate (4) onto the wall
with countersunk screws.
Inserting the batteries
X
Ensure that the connecting of the bat-
teries do not contact (danger of short-
circuit).
X
Set the battery holding bracket (5) verti-
cally.
X
Connect the battery cable to the connec-
tions of the batteries (6) as described in
the glued-in battery connection diagram
(see Chapter 5).
X
Insert the batteries (6) into the battery
mounts.
X
Turn the battery holding bracket (5) by
90° into the locking position.
X
Tight the screw (7) so that the batteries
are clamped slightly.
Connecting cable
X
Connect the cable to the terminals in accordance with the connection overview (Chapter 5.3.1).
