14. Loading Film
1. Loosen the fastening screws on the film core adaptor on one side of the supply
shaft, and slide off the supply shaft.
2. Slide the film rolls onto the supply shaft
3. Return the film core adaptor to the supply shaft
4. Position the film in the middle of the supply shaft and measure the distance from
one side of the film core adaptor to the side frame
5. Fasten the screws for film core adaptor (Note: there should be 1/8” clearance
between the positioning and the adjusting sleeves of the film core adaptor to make
brake adjustment easier),
6. Adjust the brake tension by turning the adjusting sleeve (Note: the brake tension
should not prevent roll from turning)
7. Repeat process with bottom Mounting adhesive or backing paper roll
8. Position bottom roll same distance from side frame as the top supply roll

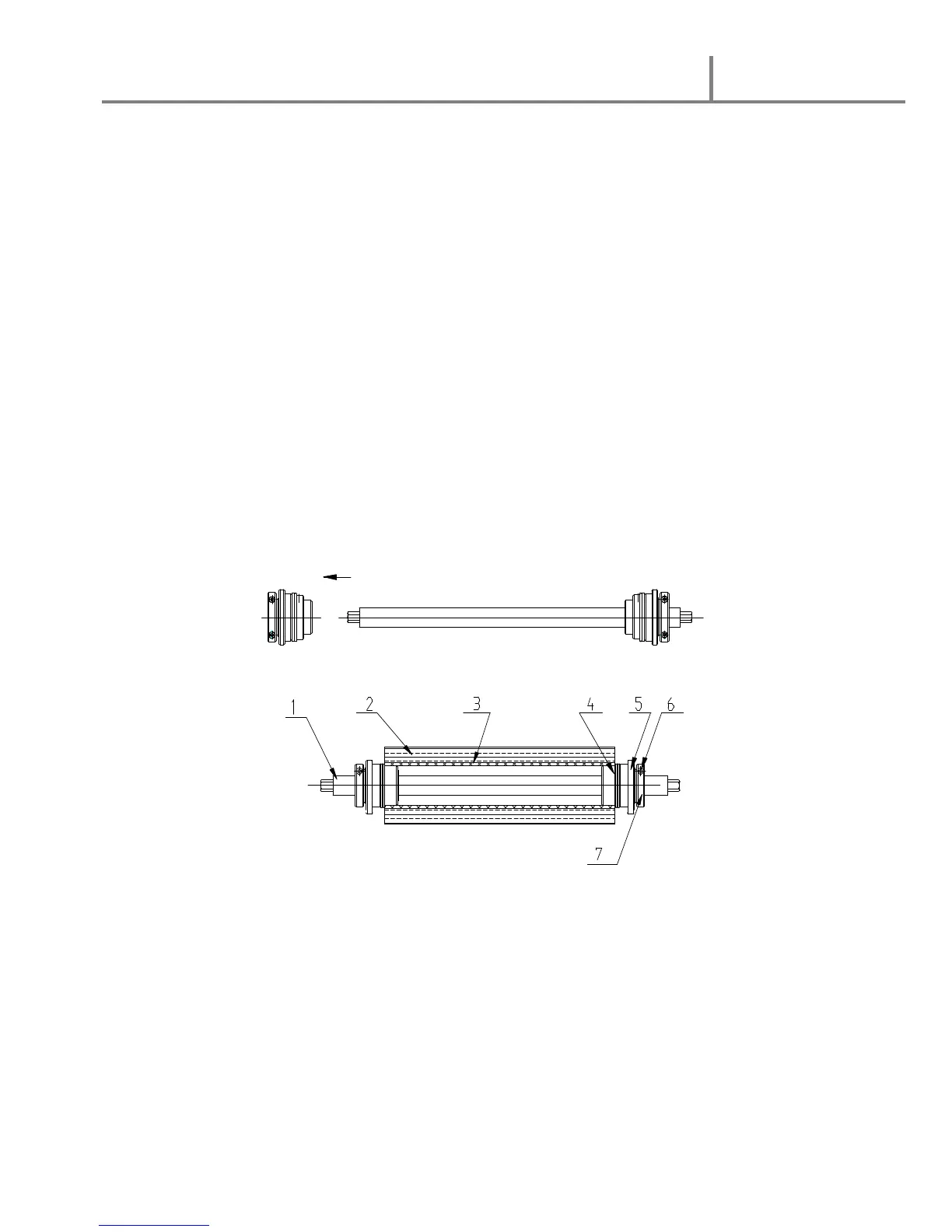

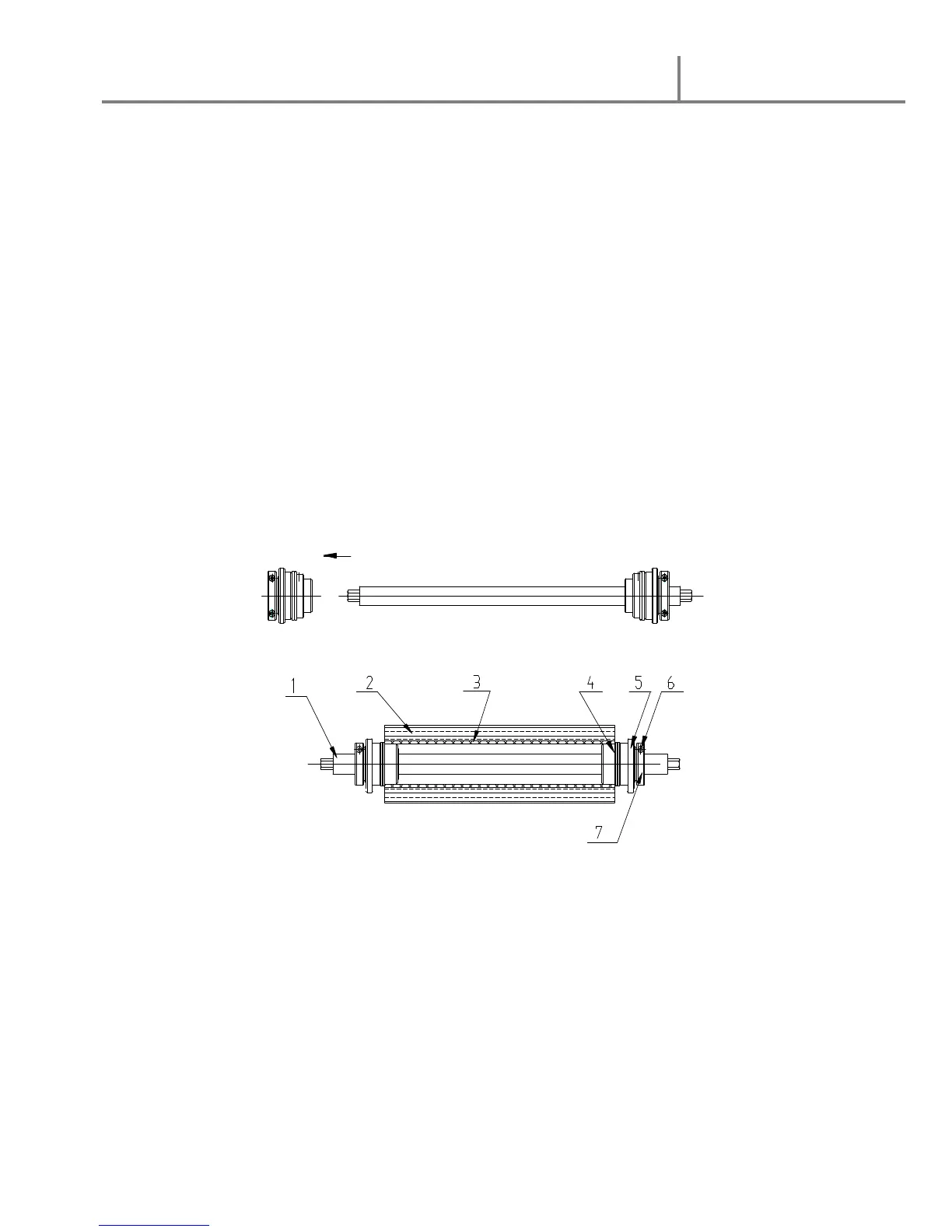

1. Axles of the supply shaft 2. Cold laminating film (lining paper) 3.Film Core
4. Positioning sleeve 5.Adjusting sleeve 6.Fastening screws for the film core adaptor
7.Film core adaptor
