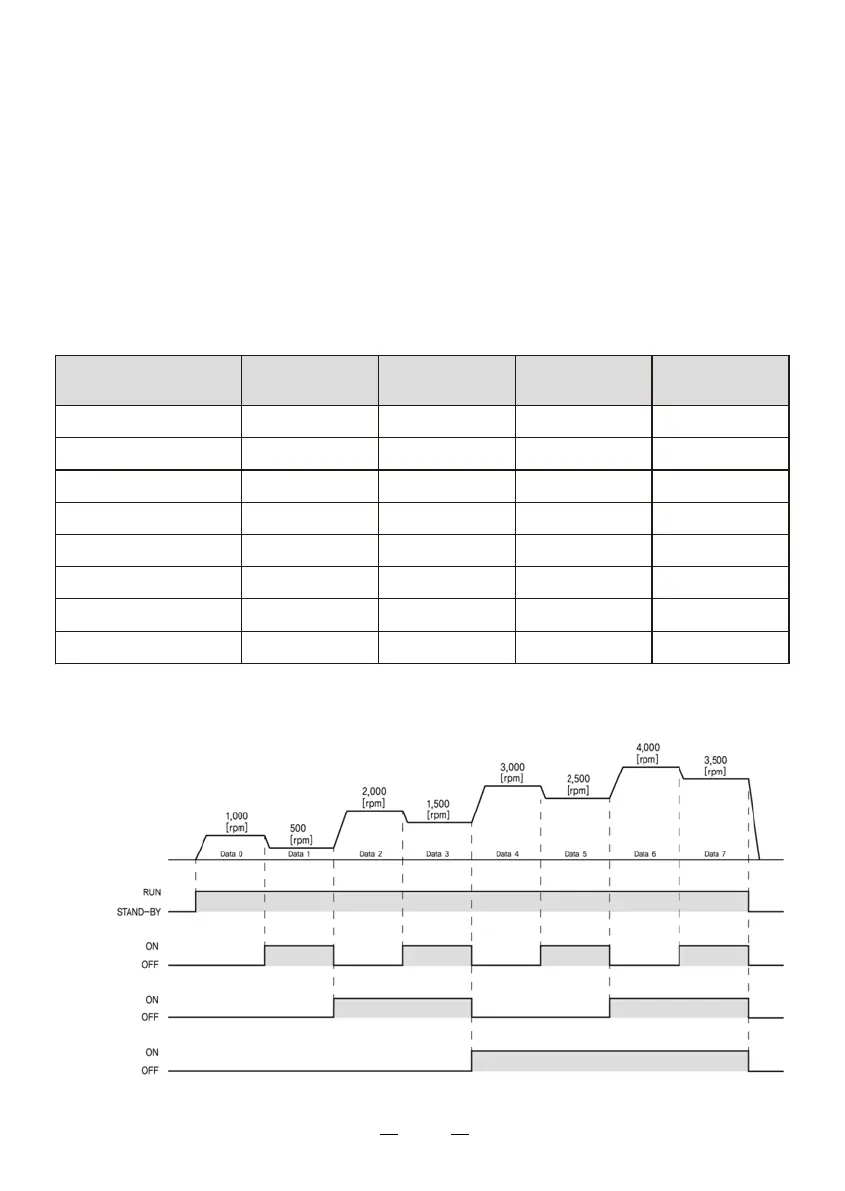

⑥ Driving at two or more speeds
You can operate at two or more speeds by switching to external input.
Up to 8 speeds are possible.
• Operating method
Operate the motor by selecting any of the operation data No.0 to No.7 based in a combination
of ON/OFF status of the P0, P1 and P2 inputs. The motor is operated using the rotation speed,
acceleration time, deceleration time and torque limit in the selected operation data number.
• Operation procedure (When the “external operation signal input” parameter is set to “ON”)
1. Set the operation switch to “RUN” side
2. Select the operation data number suing the P0, P1 and P2 inputs
3. When the FWD or REV input is turned ON, the motor will rotate.
4. Switch the operation data number using the P0, P1, and P2 inputs
5. When the FWD or REV input switch has been turned ON or is turned OFF, the motor will stop.
* Setting speed value is example, can be changed to needed speed.
When changing from the present speed to the new speed, the acceleration time and
deceleration time set in the next operation data number are used.
Operation data number
0
1
2
3
4
5
6
7
P0
OFF
ON
OFF
ON
OFF
ON
OFF
ON
P1
OFF
OFF
ON
ON
OFF
OFF
ON
ON
P2
OFF
OFF
OFF
OFF
ON
ON
ON
ON
Rotation speed
[rpm]
1000
500
2000
1500
3000
2500
4000
3500
Motor speed
Operating Switch
P0 input
P1 input
P2 input
