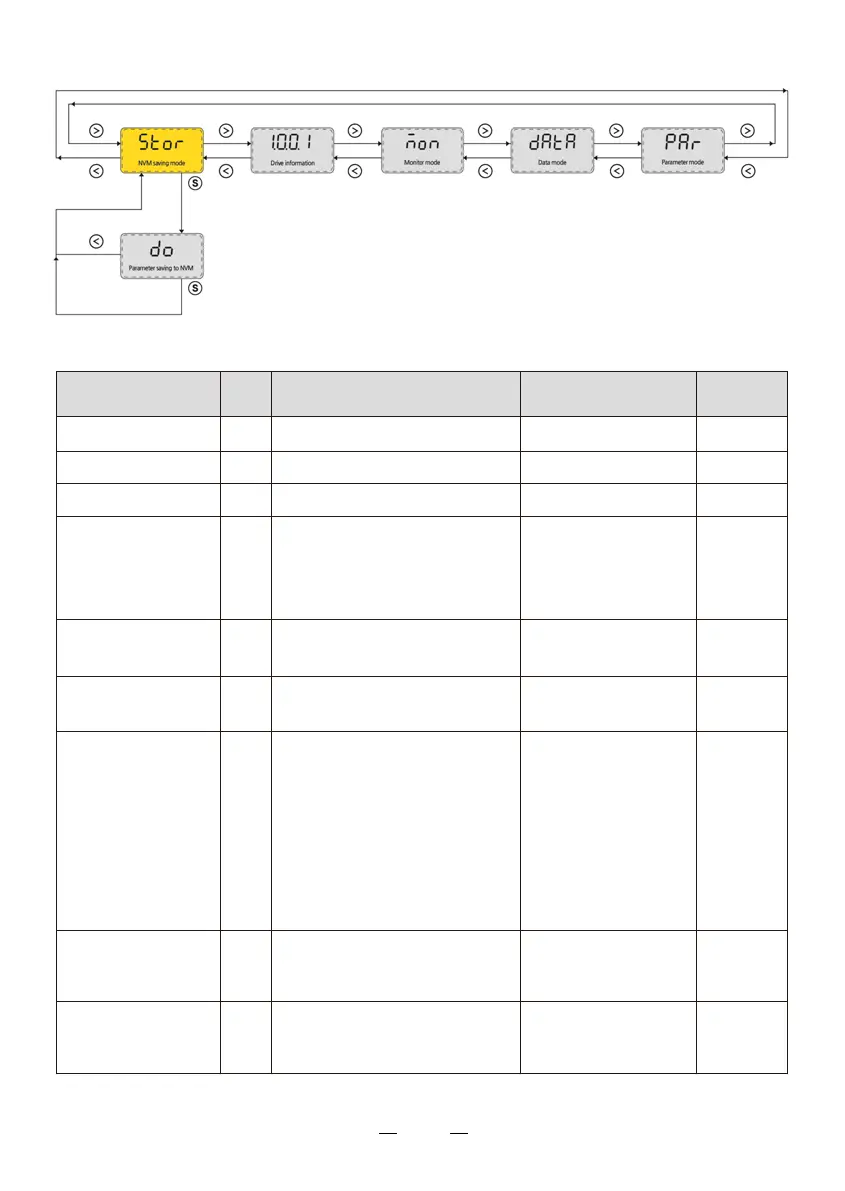

10-4 saving mode
17
Description
Sets the acceleration time.
Sets the deceleration time
Sets the torque limit
Sets the time to output the alarm
after detecting the overload
condition when a load up to the
limited duty region exceeding the
continuous duty region was applied.
Sets the upper limit of the rotation
speed.
Sets the lower limit of the rotation
speed.
Sets the speed reduction ratio
relative to the rotation speed of the
motor output shaft.
Displays the speed calculated based
on the speed reduction ratio on the
monitor mode.
If the speed reduction ratio for
the conveyor is calculated and input,
the conveyor speed can also be
displayed.
When increasing the motor rotation
speed using the external input, the
converted speed can be displayed.
After the power is turning on, the
item displayed on the monitor
mode can be changed.
Item
Acceleration time
Deceleration time
Torque limit
Overload alarm
detection time except
when holding a shaft
Speed upper limit
Speed lower limit
Speed reduction ratio
Speed increasing ratio
Panel initial display
Display
Pr.tA
Pr.td
Tq.LM
oL.tM
SP.Hi
SP.Lo
Gr-r
SP-r
P.dSP
Setting range
0.0 ~ 15 s
0.0 ~ 15 s
10~300
0.1 ~ 60 s
50 ~ 4000 rpm
50 ~ 4000 rpm
1.00 ~ 9999
1.00 ~ 2.00
SPd – Rotation speed(r/min)
Load – Load factor (%)
oP.no – Operation data
number
Factory
setting
0.5 S
0.5 S
300
40 S
4000 rpm
50 rpm
1.00
1.00
SPd
11. Parameter list
