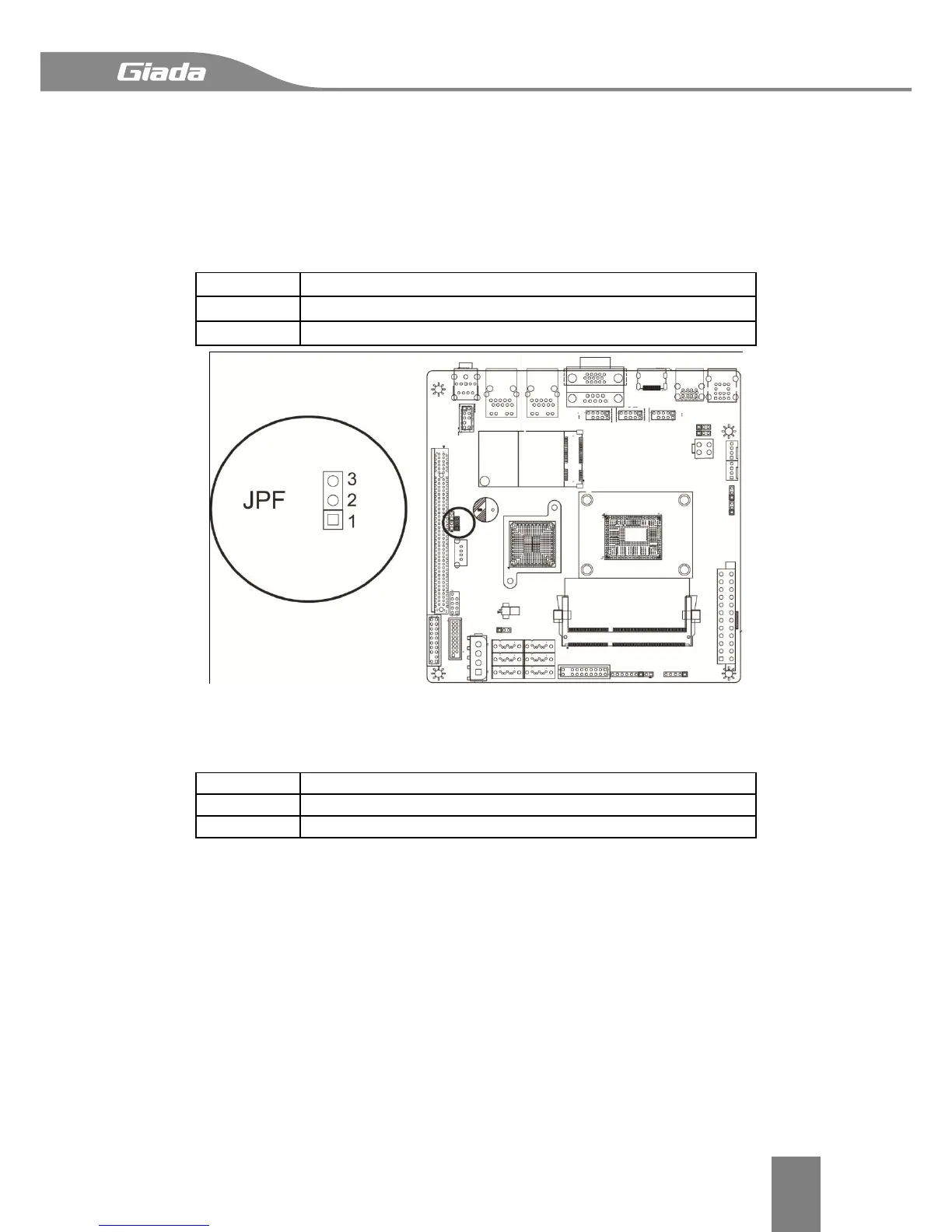

2.5.1. JPF
Jumper JPF allows you to enable or disable the Power Force On function. If enabled, the
power will always stay on automatically. If this function is disabled (default setting), the user
needs to press the power button to power on the system.
Pin#
Definitions
1-2
Disable
2-3
Enable
2.5.2. JL1
A Chassis Intrusion header is located at JL1 on the motherboard. Attach the appropriate
cable from the chassis to inform you a chassis intrusion when the chassis is opened.
Pin#
Definitions
1
Intrusion Input
2
GND
