Hardware Installation
22
2.5.16. ATX1(24PIN)
ATX 24-Pin Power Connector.
2.5.17. Memory socket
Memory socket, supprots DDR3 SODIMM, up to 8GB supported.

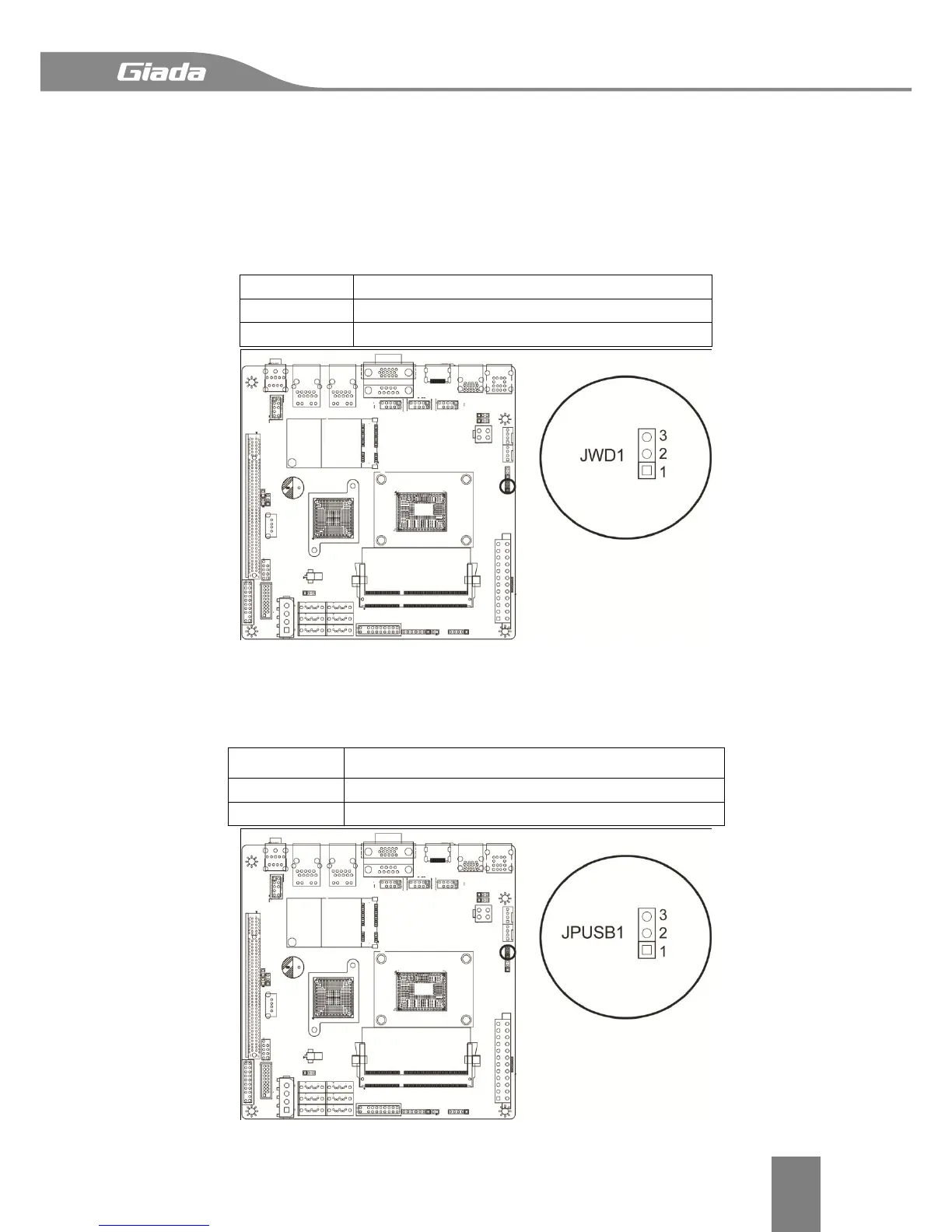

2.5.18. JWD1
Watch Dog Enable/Disable.
Pin#
Definitions
1-2
Enable
2-3
Disable
2.5.19. JPUSB1
Use JPUSB1 jumper to enable the function of "System Waking-Up via USB devices". This
jumper allows you to "wake-up" the system by pressing a key on the USB keyboard or by
clicking the USB mouse of your system.
Pin#
Definitions
1-2
Enable
2-3
Disable
