Hardware Installation
24

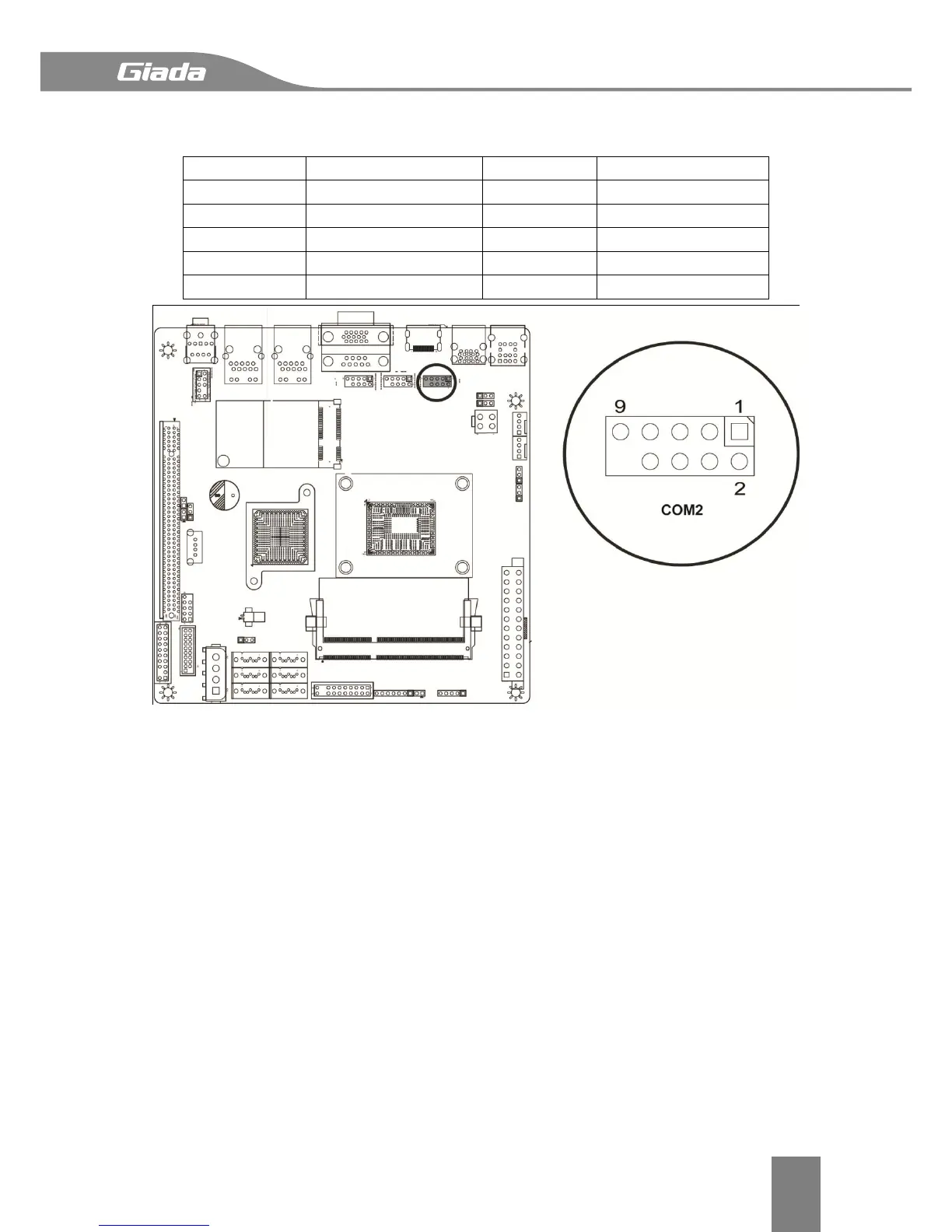

2.5.23. COM2
Serial Port 2 Headers.
Pin#
Definitions
Pin#
Definitions
1
DCD
2
RXD
3
TXD
4
DTR
5
Ground
6
DSR
7
RTS
8
CTS
9
RI
10
N/A
2.5.24. m-SATA
m-SATA port, you can intall a m-SATA storage device. Make sure you have enable the m-SATA
port before you intall a SSD. Please refer to ”11.J6”.
