避震前叉組裝 Suspension Fork Assembly

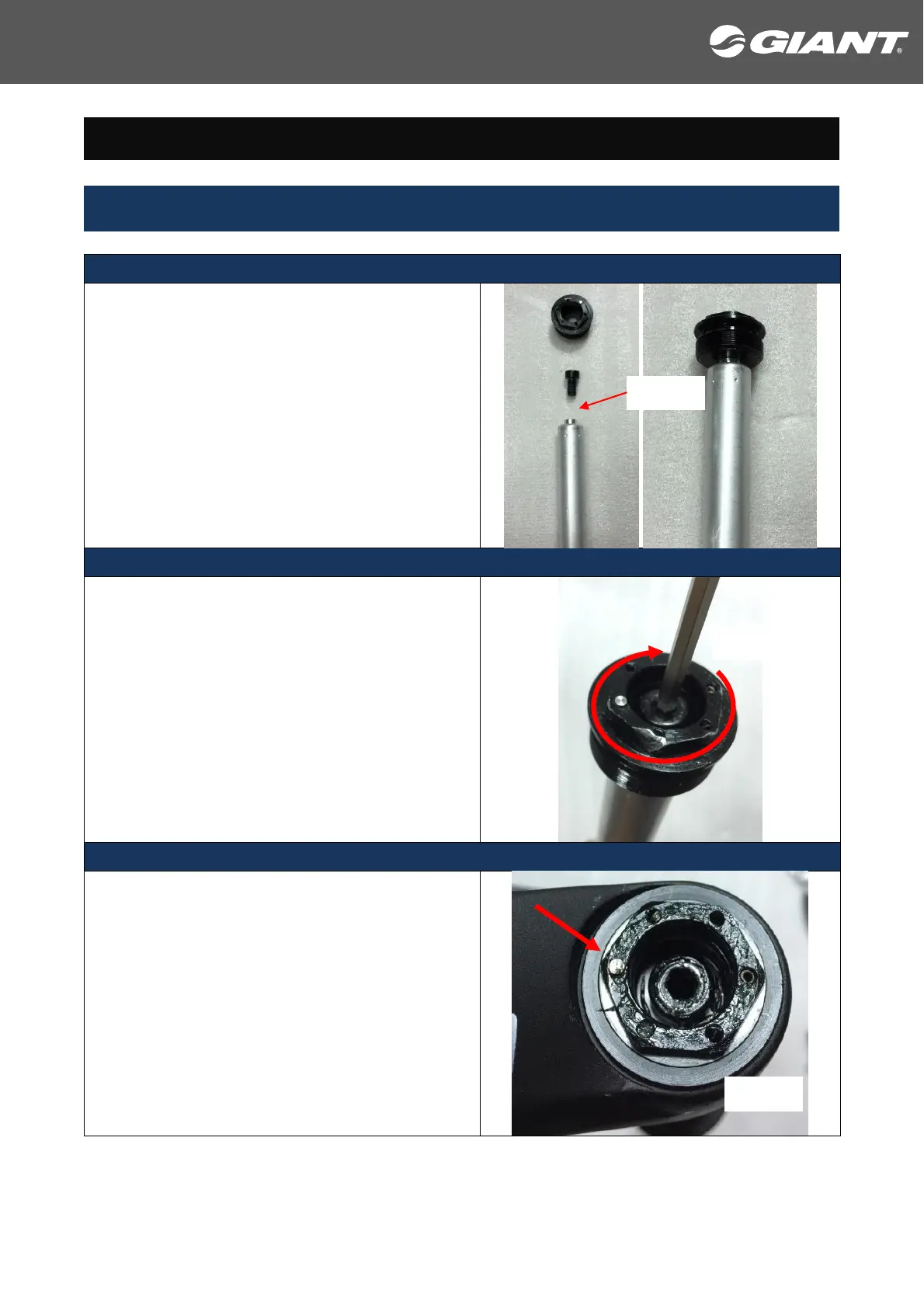

阻尼側組裝 Damper Side Assembly
使用 5mm 六角板手鎖緊螺母與阻尼棒，扭力
值 7.5Nm。
Tighten the damper cartridge, nut and bolt to
7.5Nm with 5mm hex.
使用 4mm 六角板手將阻尼棒順時針方向調至
lock 位置，扭力值 1200g-cm，當感覺到阻力時
即停止，請勿過度旋緊阻尼棒。
Turn the damper to locked position in a
clockwise direction using a 4mm hex
and a torque value of 1200g-cm. Stop
turning when you feel resistance. Be
careful not to over-tighten and
damage the damper cartridge.
將阻尼棒鎖至上叉腳，扭力值24Nm，Pin 應位
於 9 點鐘的位置。
Tighten the damper into the stanchion to 24Nm.
When tight, the silver pin should be on the left
side of the forward-facing fork, in the 9 o'clock
position.
