固定阻尼棒，使用
10mm 套筒取下螺母螺絲①。
取下阻尼調整軸
②。
更換阻尼棒(如果需要)。

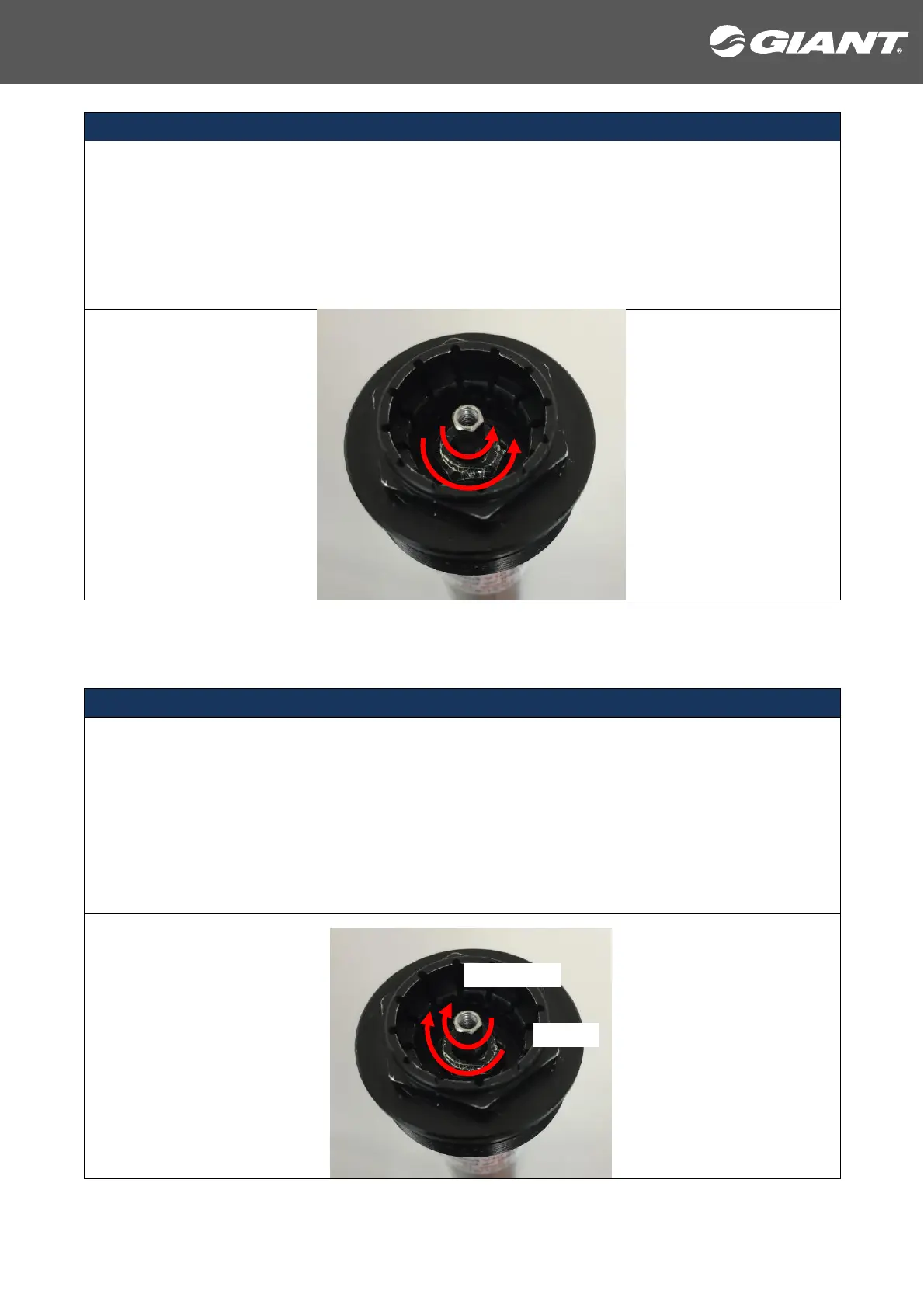

Gently grip the damper cartridge. Unthread the bolt using 10mm socket ①.
Remove the damper adjustment axle by rotating it in a counter clockwise direction ②.
Replace the damper cartridge (if needed).
Assembly process:
1、順時鐘方向旋入阻尼調整軸①至感受到有阻力就停止。
2、使用 10mm 套筒鎖上螺母螺絲②，扭力值 7.5Nm。
3、鎖緊阻尼調整軸扭力值為 1200g-cm③。
1. Turn the damper adjustment axle in a clockwise direction to lockout position ①.
2. Stop turning when you feel resistance.
3. Tighten the bolt to 7.5Nm
using 10 mm socket ②.
4. Carefully tighten the damper adjustment axle to 1200g-cm ③.
