Giant Crest 34 - Page 23

23
10

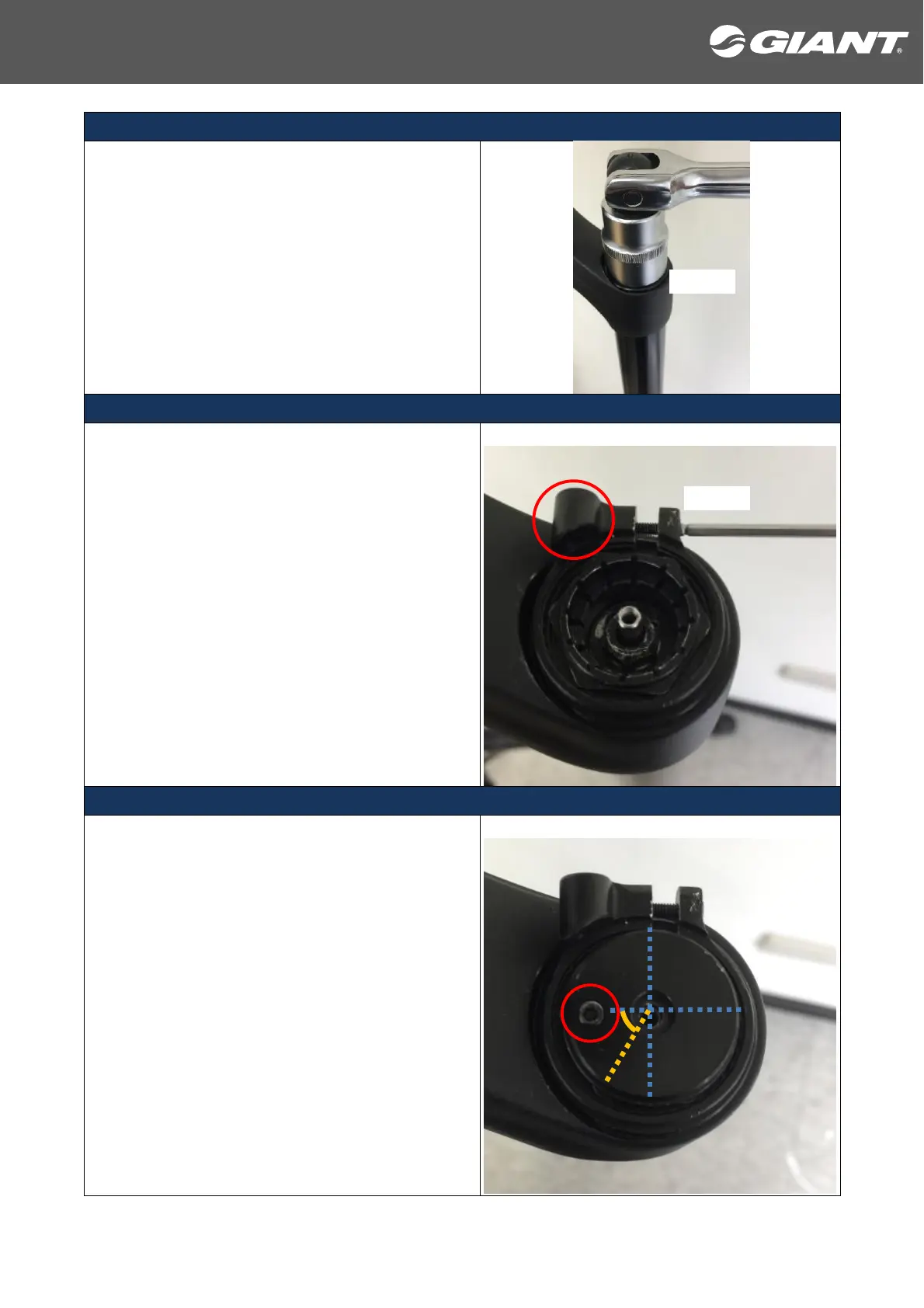

使用 24mm 套筒組裝阻尼棒，扭力值 24Nm。
Using a 24 mm socket, tighten the damper
cartridge into the stanchion to 24Nm.
11
組裝線控線固定座，鎖緊扭力 0.6Nm，線控線
孔位朝前。
Tighten the remote control cable setting seat
bolt to 0.6Nm. Make sure it is to the front of the
fork.
12
放置上蓋，線控線固定螺絲需約在 9 點鐘位
置，此為線控關閉的位置。
注意：固定螺絲的位置可以落在 7~9 點鐘，但
請勿超過 9 點鐘的位置。
Replace the top cap. Note that the position of
the remote control cable fixing bolt should
be at or slightly under 9 o’clock. This is lockout
position.
Note: Do not go past the 9 o'clock position.
Front
Rear
12
3
9
6
0.6Nm
7
24Nm
