USER AND INSTALLATION MANUAL
39
MONOBLOCK IKALAMONOBLOCK IKALA
DIAGRAMS FOR ILLUSTRATIVE PURPOSES ONLY

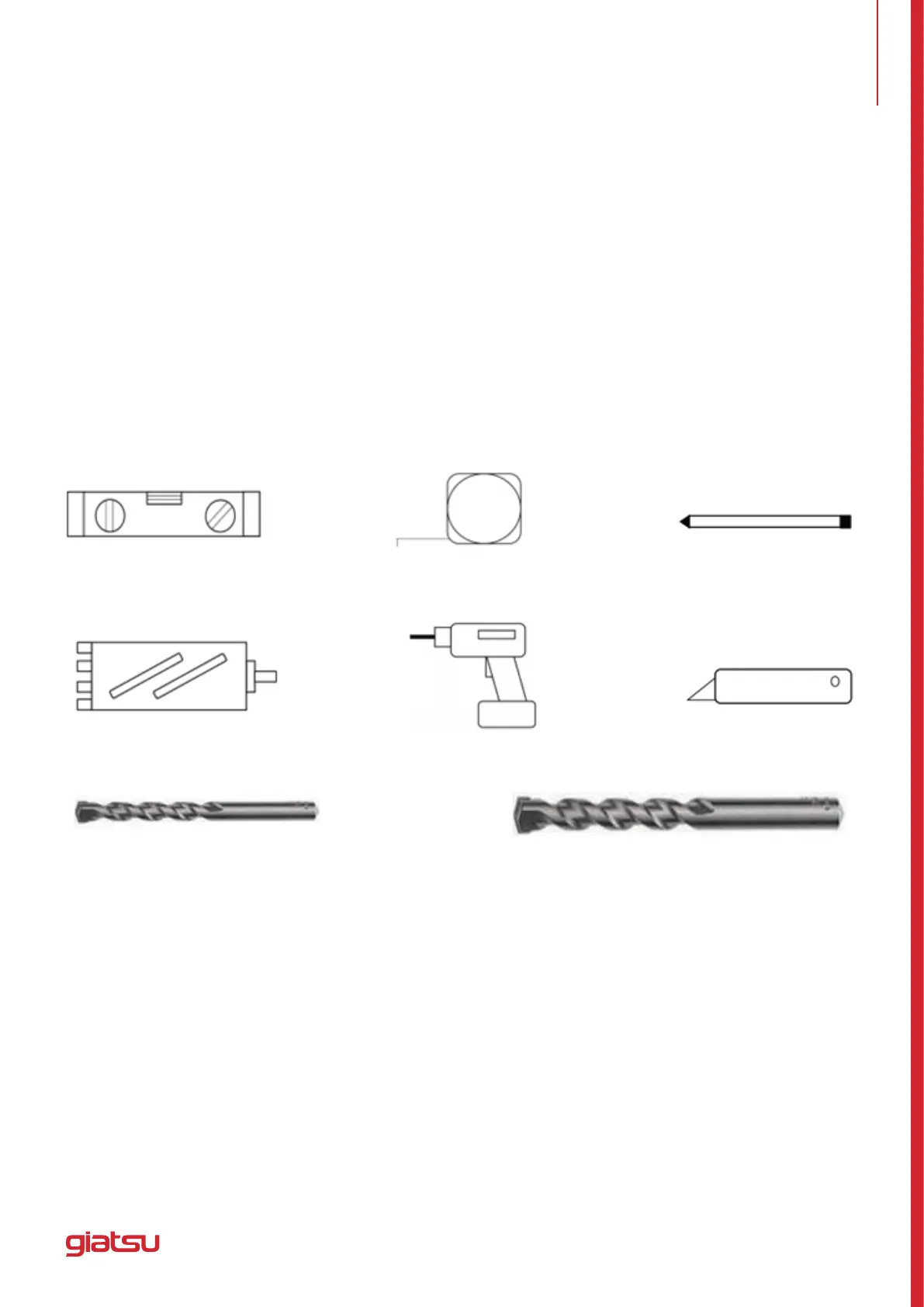

TOOLS NEEDED FOR INSTALLATION
PRODUCT DIAGRAM
• BEFORE STARTING INSTALLATION, PLEASE ENSURE YOU HAVE ALL SUITABLE EQUIPMENT AVAILABLE
AND UNDERSTAND THE STEPS INVOLVED IN INSTALLATION. IF IN ANY DOUBT,
• PROFESSIONAL ADVICE SHOULD BE SOUGHT.
• THE INSTALLER MUST ENSURE THAT THE PLANNED POSITION OF THE AIR CONDITIONER IS SUITABLE,
AND THAT THERE ARE NO CABLES AND PIPES INSIDE THE WALL, AND NO OTHER OBSTRUCTIONS FIXED
ON THE WALL, WHICH WOULD PRESENT A DANGER AND/OR PREVENT COMPLETION OF INSTALLATION.
SPIRIT LEVEL
180mm CORE DRILL
8mm MASONRY DRILL BIT
TAPE MEASURE
DRILL
PENCIL
SHARP KNIFE
25mm MASONRY DRILL BIT
2. PRODUCT DESCRIPTION
To Next Page
