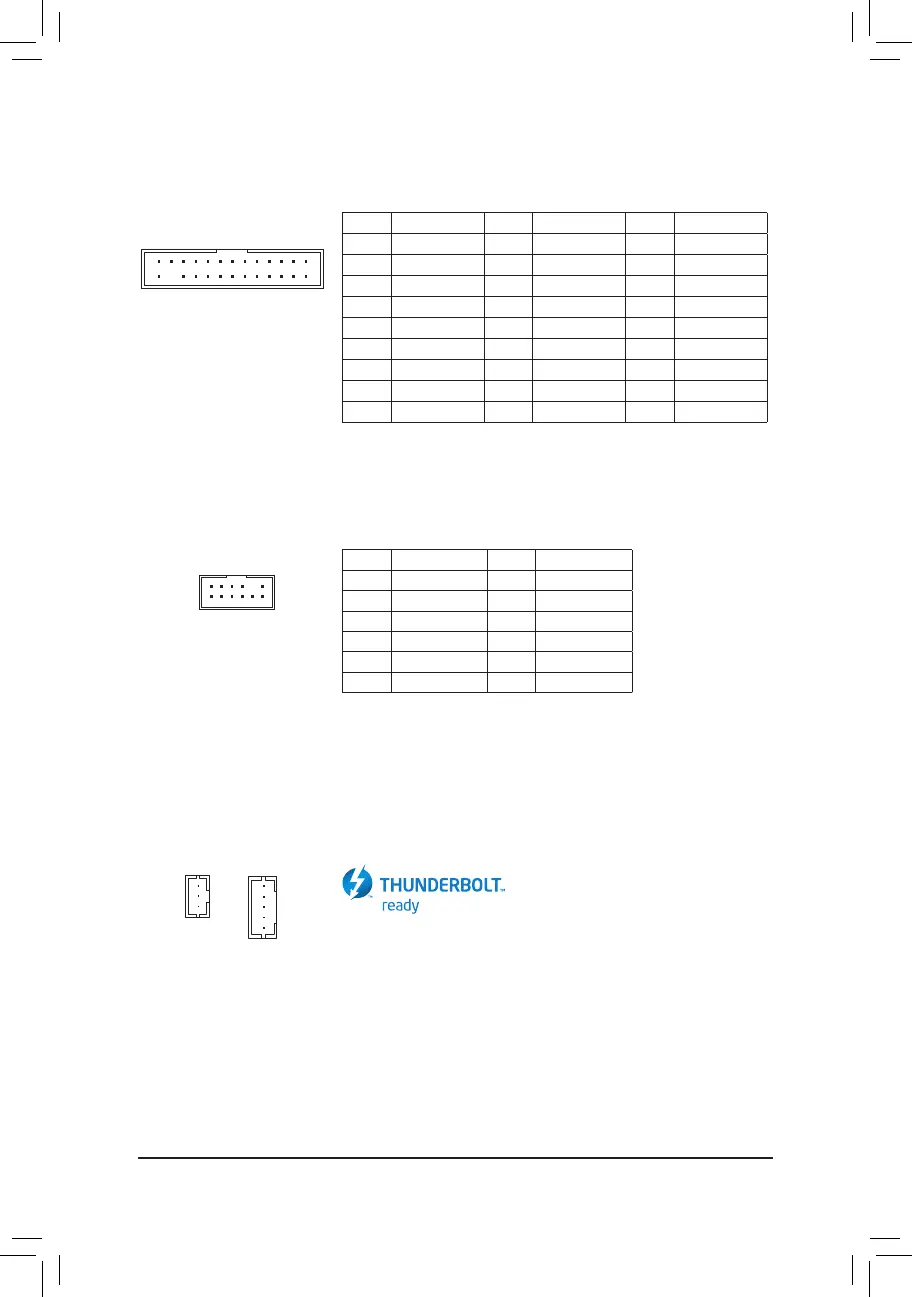

14) SPI_TPM (Trusted Platform Module Header)
You may connect an SPI TPM (Trusted Platform Module) to this header.
Pin No. Denition Pin No. Denition
1
Data Output
7
Chip Select
2
Power (3.3V)
8
GND
3
No Pin
9
IRQ
4
NC
10
NC
5
Data Input
11
NC
6
CLK
12
RST
12
11
2
1
15) THB_C1/THB_C2 (Thunderbolt
™
Add-in Card Connectors)
The connectors are used to connect to a GIGABYTE Thunderbolt
™
add-in card.
Supports a Thunderbolt
™
add-in card.
13) LPT (Parallel Port Header)
The LPT header can provide one parallel port via an optional LPT port cable. For purchasing the optional
LPT port cable, please contact the local dealer.
Pin No. Denition Pin No. Denition Pin No. Denition
1
STB-
10
GND
19
ACK-
2
AFD-
11
PD4
20
GND
3
PD0
12
GND
21
BUSY
4
ERR-
13
PD5
22
GND
5
PD1
14
GND
23
PE
6
INIT-
15
PD6
24
No Pin
7
PD2
16
GND
25
SLCT
8
SLIN-
17
PD7
26
GND
9
PD3
18
GND
1
1
THB_C2
THB_C1
G.QBOFM
1
226
25
- 18 -
