2-8 Internal Connectors
Read the following guidelines before connecting external devices:
• First make sure your devices are compliant with the connectors you wish to connect.
• Before installing the devices, be sure to turn off the devices and your computer. Unplug the power
cord from the power outlet to prevent damage to the devices.
• After installing the device and before turning on the computer, make sure the device cable has
been securely attached to the connector on the motherboard.
N Only for B760M DS3H.
P Only for B760M DS3H DDR4.
919
12
2
4
5
1310 11 6 7
14
14 15
18
3
8
8
17
416
5

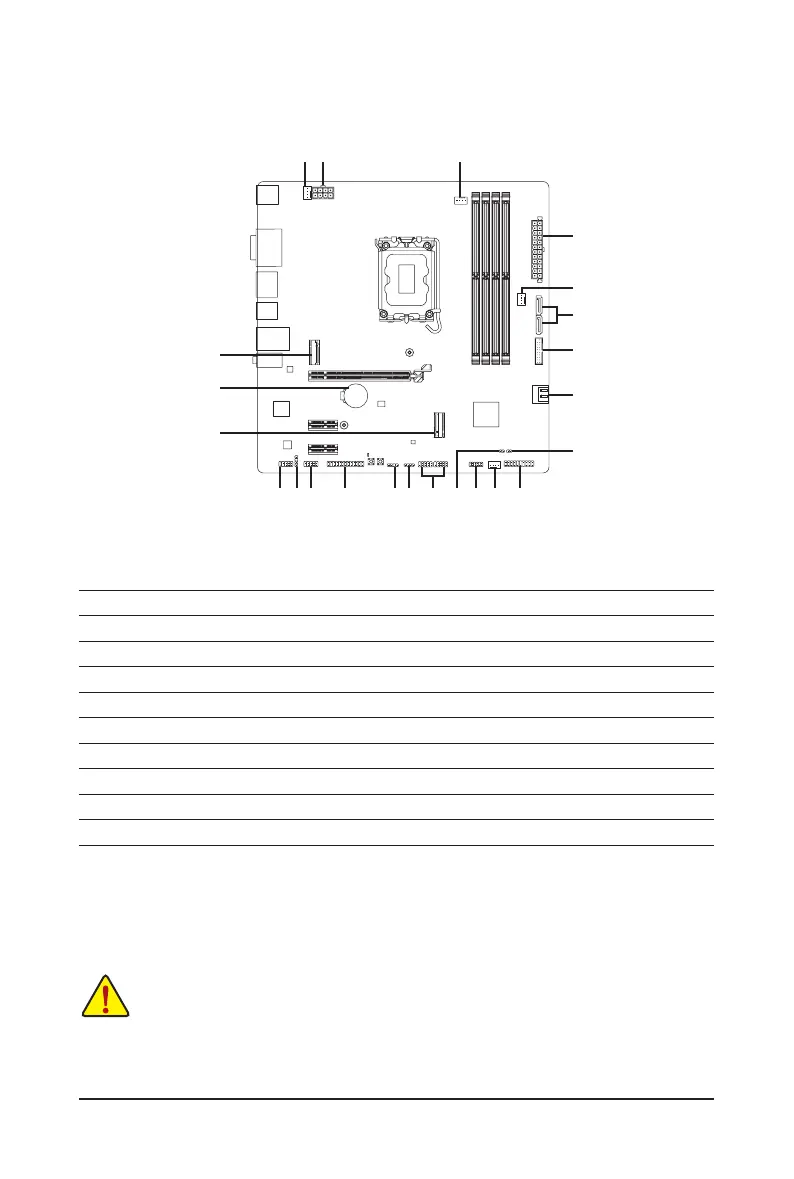

1) ATX_12V_2X4
2) ATX
3) CPU_FAN
4) SYS_FAN1/2/3
5) SATA3 4/5/6/7
6) D_LED
7) LED_C
8) M2A_CPU/M2P_SB
9) F_PANEL
10) F_AUDIO
11) SPDIF_O
12) F_U32
13) F_USB1/F_USB2
14) COM NP
15) LPT NP
16) SPI_TPM
17) BAT
18) CLR_CMOS
19) RST
