GIGA-BYTE TECHNOLOGY B760M DS3H AX User Manual

- 27 -

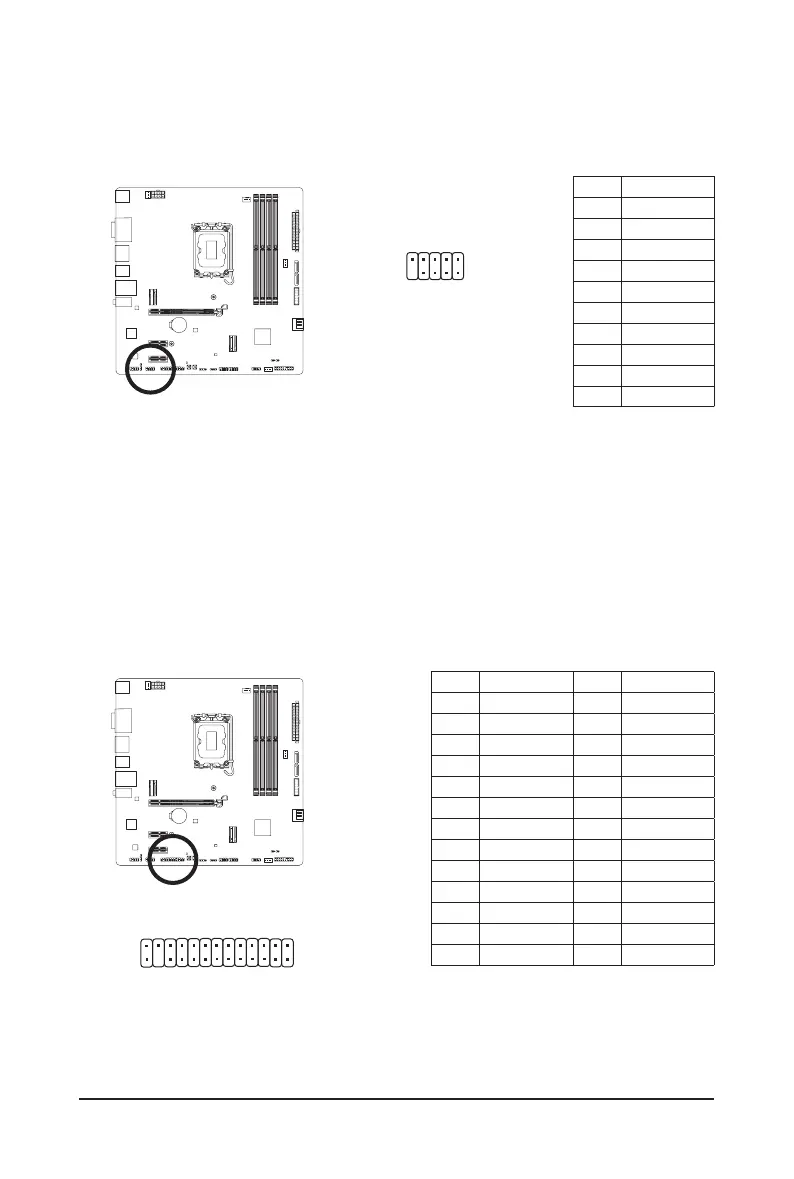

14) COM (Serial Port Header)
NP
The COM header can provide one serial port via an optional COM port cable. For purchasing the
optional COM port cable, please contact the local dealer.
10
9
2
1
15) LPT (Parallel Port Header) NP
The LPT header can provide one parallel port via an optional LPT port cable. For purchasing the optional
LPT port cable, please contact the local dealer.
Pin No. Denition Pin No. Denition
1
STB-
14
GND
2
AFD-
15
PD6
3
PD0
16
GND
4
ERR-
17
PD7
5
PD1
18
GND
6
INIT-
19
ACK-
7
PD2
20
GND
8
SLIN-
21
BUSY
9
PD3
22
GND
10
GND
23
PE
11
PD4
24
No Pin
12
GND
25
SLCT
13
PD5
26
GND
DEBUG
PORT
G.QBOFM
1
226
25
Pin No. Denition
1 NDCD-
2 NSIN
3 NSOUT
4 NDTR-
5 GND
6 NDSR-
7 NRTS-
8 NCTS-
9 NRI-
10 No Pin
N Only for B760M DS3H.
P Only for B760M DS3H DDR4.
