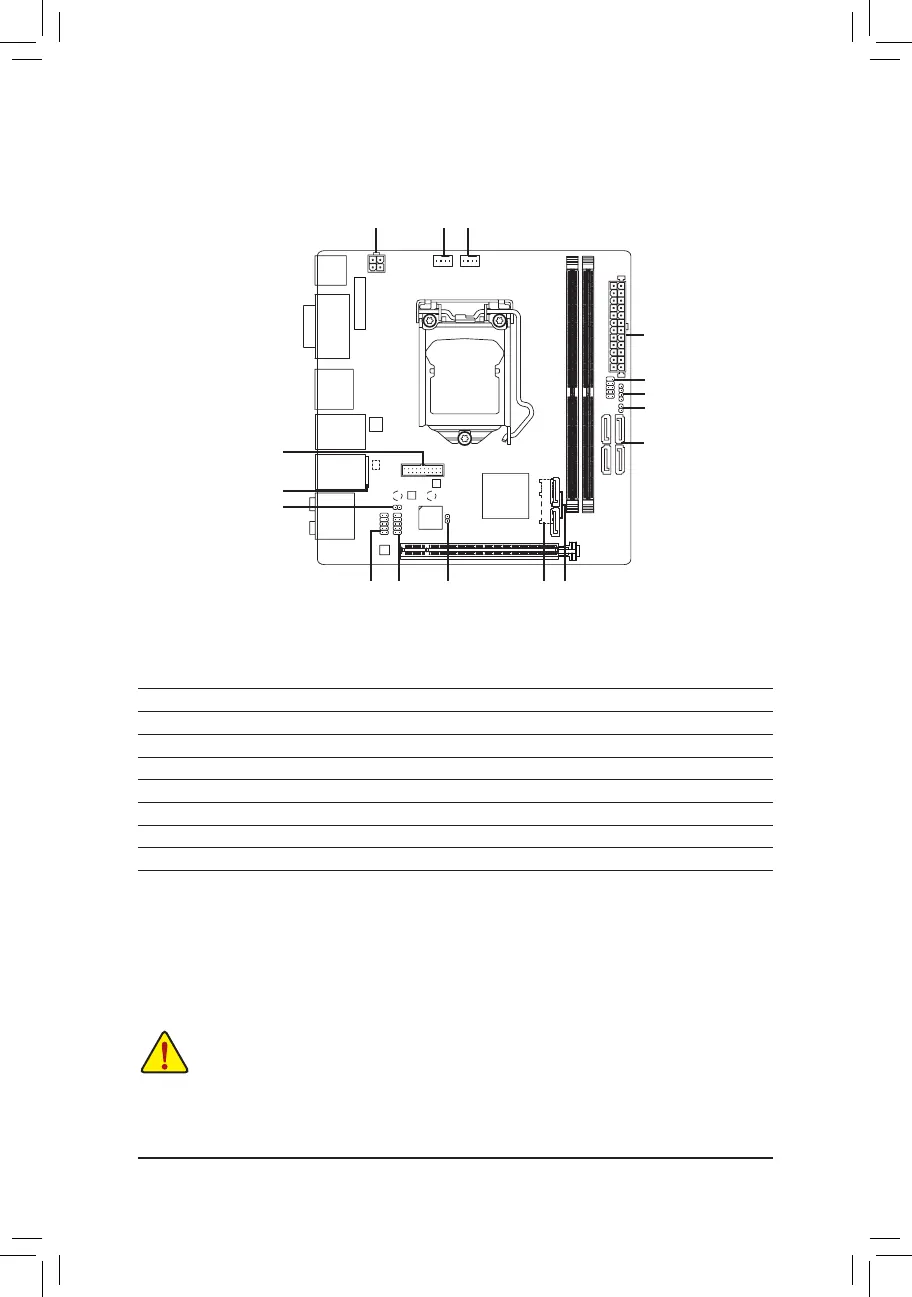

1-7 Internal Connectors
Read the following guidelines before connecting external devices:
• First make sure your devices are compliant with the connectors you wish to connect.
• Before installing the devices, be sure to turn off the devices and your computer. Unplug the power
cord from the power outlet to prevent damage to the devices.
• After installing the device and before turning on the computer, make sure the device cable has
been securely attached to the connector on the motherboard.
1) ATX_12V
2) ATX
3) CPU_FAN
4) SYS_FAN
5) BAT
6) SATA3 0/1/2/3/4/5
7) M.2
8) F_PANEL
9) F_AUDIO
10) SPEAKER
11) SPDIF_O
12) F_USB30
13) F_USB1
14) CLR_CMOS
15) CI
31 4
69
12
15 713
5
11
8
10
2
6
14
- 13 -
