Gigabyte G1.Assassin User Manual

Hardware Installation - 22 -

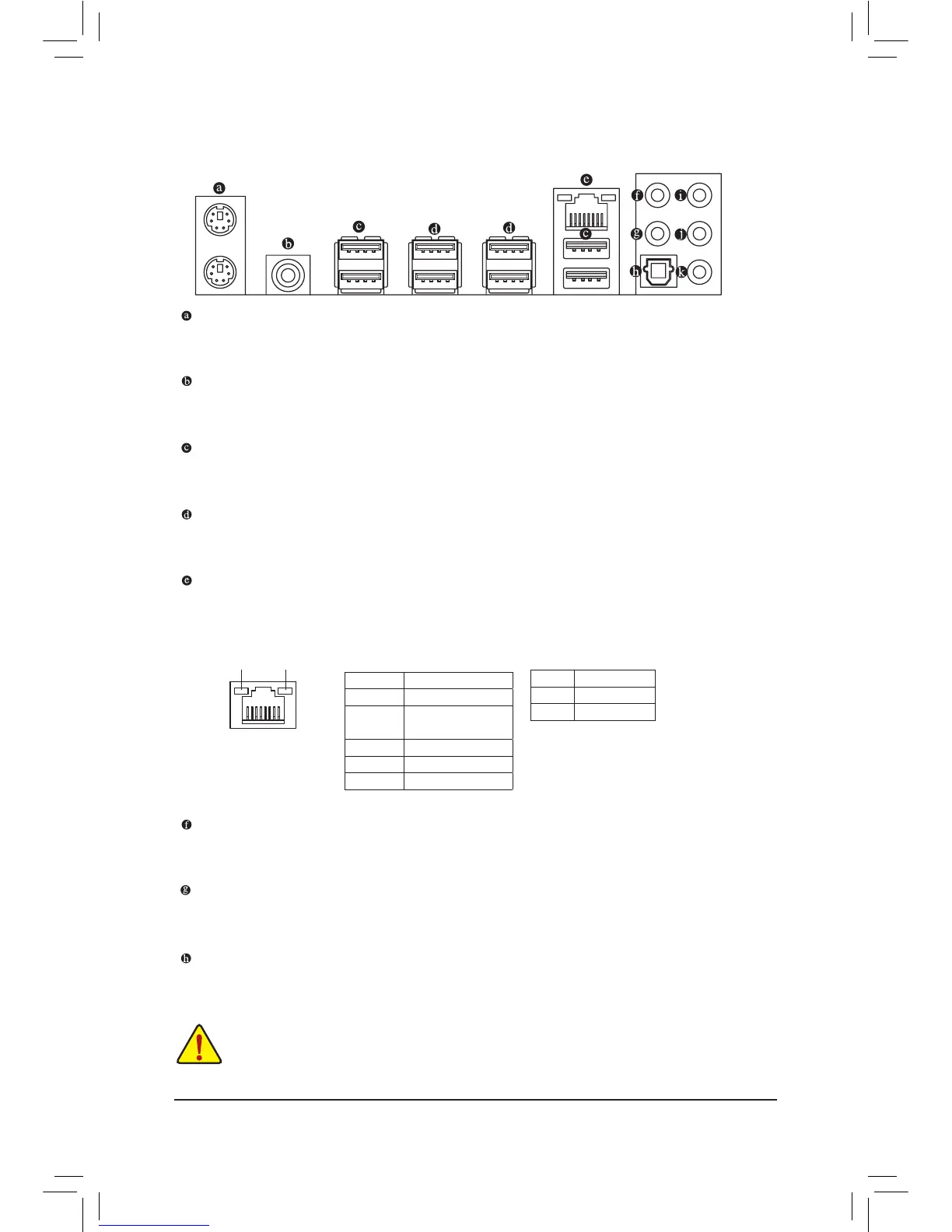

1-8 Back Panel Connectors
Link LED
Speed/Activity LED
LAN Port
• Whenremovingthecableconnectedtoabackpanelconnector,rstremovethecablefromyour
device and then remove it from the motherboard.
• When removing the cable, pull it straight out from the connector. Do not rock it side to side to
prevent an electrical short inside the cable connector.
PS/2 Keyboard and PS/2 Mouse Port
Use the upper port (green) to connect a PS/2 mouse and the lower port (purple) to connect a PS/2 key-
board.
Coaxial S/PDIF Out Connector
This connector provides digital audio out to an external audio system that supports digital coaxial audio.
Before using this feature, ensure that your audio system provides a coaxial digital audio in connector.
USB 2.0/1.1 Port
TheUSBportsupportstheUSB2.0/1.1specication.UsethisportforUSBdevicessuchasaUSBkey-
board/mouse,USBprinter,USBashdriveandetc.
USB 3.0/2.0 Port
TheUSB3.0portsupportstheUSB3.0specicationandiscompatibletotheUSB2.0/1.1specication.
UsethisportforUSBdevicessuchasaUSBkeyboard/mouse,USBprinter,USBashdriveandetc.
RJ-45 LAN Port
The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. The following
describes the states of the LAN port LEDs.
Line In/Mic In Jack (Blue)
The line in/Mic in jack. Use this audio jack for line in devices such as optical drive, walkman, micro-
phone, etc.
Line Out Jack (Green)
The line out jack. Use this audio jack for a headphone or 2-channel speaker. This jack can be used to
connectfrontspeakersina4/5.1/7.1-channelaudioconguration.
Optical S/PDIF Out Connector
This connector provides digital audio out to an external audio system that supports digital optical audio.
Before using this feature, ensure that your audio system provides an optical digital audio in connector.
Link LED:Speed/Activity LED:
State Description
Orange 10 Mbps data rate
Green +
Orange
100 Mbps data rate
Green 1 Gbps data rate
Blinking Network activity
Off No connection
State Description
On Linked properly
Off No link

Gigabyte G1.Assassin Specifications

General

Non-ECC	Yes
Memory voltage	1.5 V
Memory channels	Dual-channel
Number of memory slots	6
Maximum internal memory	24 GB
Supported memory clock speeds	800, 1066, 1333, 2200 MHz
Supported memory module capacities	4GB
System bus rate	6.4 GT/s
Processor socket	Socket B (LGA 1366)
Processor manufacturer	Intel
Compatible processor series	Intel® Core™ i7
Processor system buses supported	800, 1066, 1333 MHz
USB 2.0 connectors	3
Number of SATA connectors	8
Number of SATA III connectors	2
Number of Parallel ATA connectors	-
USB 2.0 ports quantity	4
Firewire (IEEE 1394) ports	0
Controller interface type	Marvell 88SE9182
Controller 2nd interface type	JMicron JMB362
Audio chip	Realtek ALC889
Component for	PC
Audio output channels	7.1 channels
Motherboard form factor	ATX
Compatible operating systems	Microsoft Windows 7, Vista, XP
On-board graphics card	No
Parallel processing technology support	3-Way SLI
LAN controller	Bigfoot Killer E2100
Ethernet interface type	Gigabit Ethernet
BIOS type	AWARD
ACPI version	1.0b
BIOS memory size	32 Mbit
RAID levels	0, 1, 5, 10, JBOD

Weight and Dimensions

Depth	263 mm
Width	305 mm
