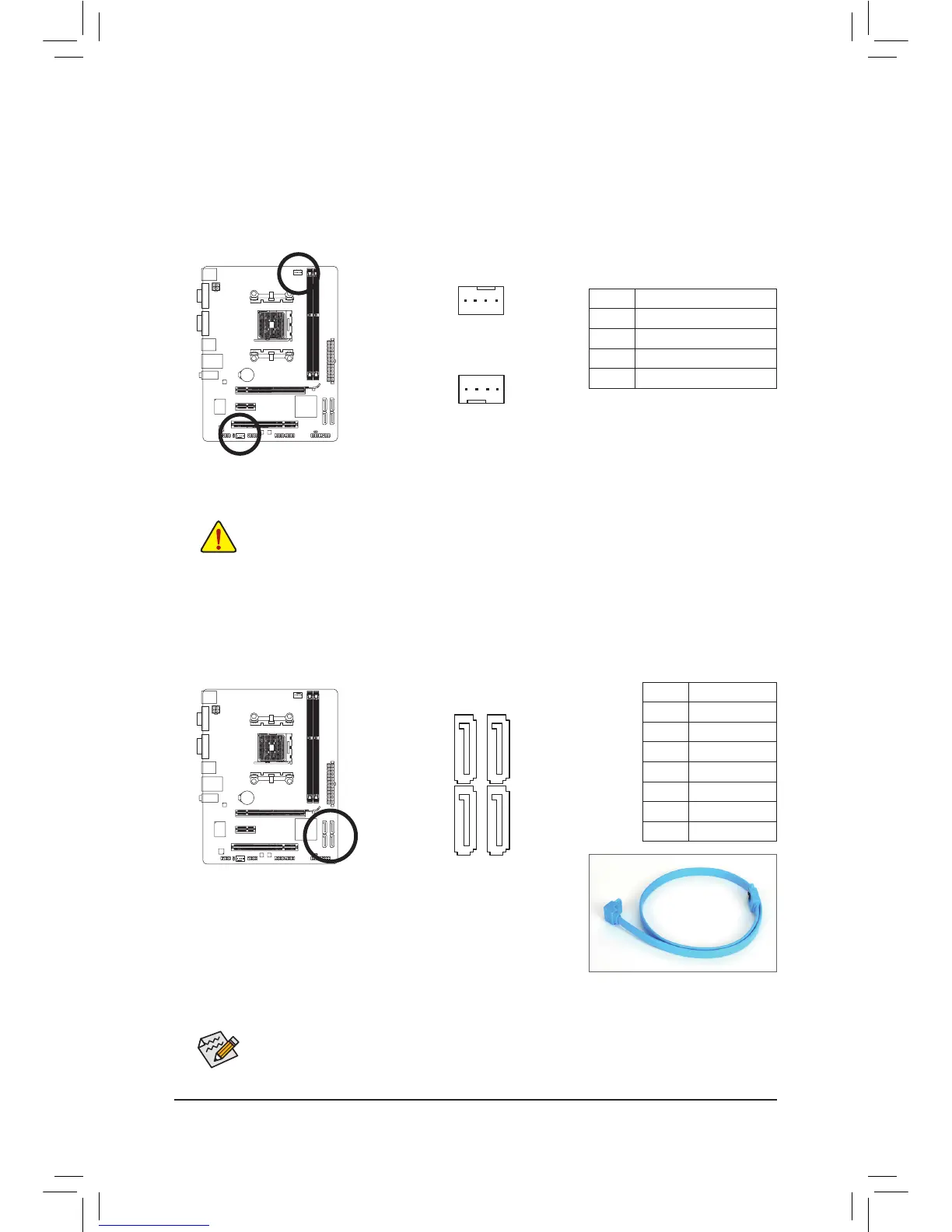

3/4)CPU_FAN/SYS_FAN(FanHeaders)
The motherboard has a 4-pin CPU fan header (CPU_FAN) and a 4-pin system fan header (SYS_FAN).
Most fan headers possess a foolproof insertion design. When connecting a fan cable, be sure to connect
it in the correct orientation (the black connector wire is the ground wire). The motherboard supports APU
fan speed control, which requires the use of a APU fan with fan speed control design. For optimum heat
dissipation, it is recommended that a system fan be installed inside the chassis.
Be sure to connect fan cables to the fan headers to prevent your APU and system from overheating. Over- •
heating may result in damage to the APU or the system may hang.
These fan headers are not conguration jumper blocks. Do not place a jumper cap on the headers. •
Pin No. Denition
1 GND
2 +12V
3 Sense
4 Speed Control
5) SATA2_0/1/2/3(SATA3Gb/sConnectors)
The SATA connectors conform to SATA 3Gb/s standard and are compatible with SATA 1.5Gb/s standard.
Each SATA connector supports a single SATA device. The AMD A55 Chipset supports RAID 0, RAID 1,
RAID 10, and JBOD. Refer to Chapter 4, "Conguring SATA Hard Drive(s)," for instructions on congur-
ing a RAID array.
Please connect the L-shaped end of
the SATA cable to your SATA hard
drive.
Pin No. Denition
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
• A RAID 0 or RAID 1 conguration requires at least two hard drives. If more than two hard
drives are to be used, the total number of hard drives must be an even number.
• A RAID 10 conguration requires four hard drives.
CPU_FAN
SYS_FAN
DEBUG
PORT
G.QBOFM
DEBUG
PORT
G.QBOFM
1
1
SATA2_0SATA2_1
SATA2_2SATA2_3
7
1
7
1
DEBUG
PORT
G.QBOFM
DEBUG
PORT
G.QBOFM
DEBUG
PORT
G.QBOFM
DEBUG
PORT
G.QBOFM

Gigabyte GA-A55M-DS2 Specifications

General

Memory voltage	1.5 V
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	1066, 1333, 1600, 1866 MHz
Supported memory module capacities	16GB, 1GB, 2GB, 4GB, 8GB
Processor socket	Socket FM1
Processor manufacturer	AMD
Compatible processor series	AMD A, AMD E2
Maximum number of SMP processors	1
S/PDIF out connector	Yes
Number of SATA II connectors	4
Number of SATA III connectors	-
Number of Parallel ATA connectors	0
BIOS type	AWARD
ACPI version	1.0b
BIOS memory size	64 Mbit
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component for	PC
Power source type	ATX
Motherboard chipset	AMD A55
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Compatible operating systems	Microsoft Windows 7/Vista/XP
RAID levels	0, 1, 10, JBOD
Supported storage drive interfaces	SATA II
Parallel processing technology support	Not supported
PCI Express slots version	2.0
Trial software	Norton Internet Security
Ethernet interface type	Gigabit Ethernet

Weight and Dimensions

Depth	174 mm
Width	225 mm
